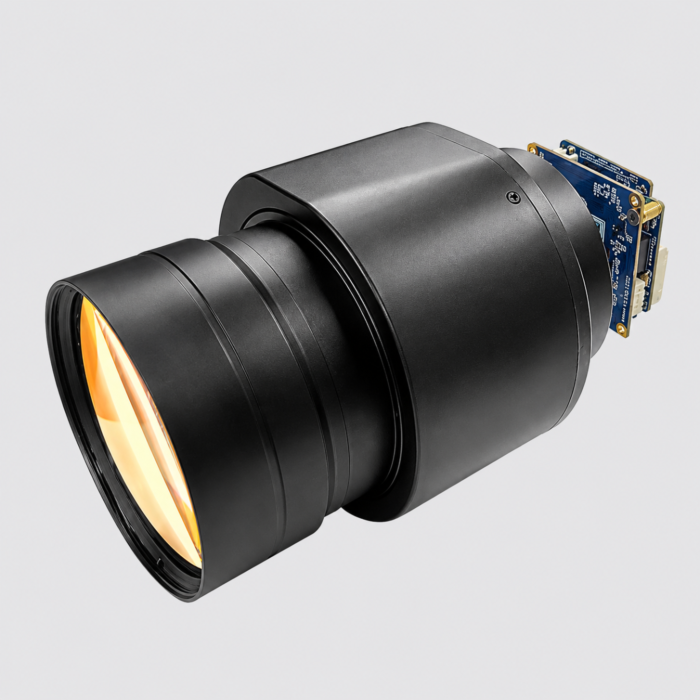

IPX NMG-1242M10X-W 12MP Global Shutter IP Camera Module, 42x42mm Double Board, 5-50mm Motorized Lens
The IPX NMG-1242M10X-W is a high-resolution 12MP global shutter IP camera module with a 5-50mm motorized lens, built for embedded vision systems that need long-range detail, adjustable zoom, intelligent detection, and compact integration. This model is especially useful for UAV/drone imaging, intelligent traffic monitoring, perimeter surveillance, industrial inspection, robotics, smart city systems, and remote visual monitoring.
The NMG-1242M10X-W uses a Sony 1/1.1” 12MP global shutter CMOS sensor to support high-resolution capture with reduced motion distortion. Its 64-bit Quad Core RISC-V processor runs embedded Linux and supports H.265, H.264, and MJPEG video up to 3840x2160 at 30fps, making it a flexible choice for networked video, AI analytics, and embedded camera designs.
The onboard NPU supports MobileNet V2 + SSDLite and YOLO7 object detection, helping integrators build AI-enabled camera systems for target detection, monitoring, inspection, and automation. With a 5-50mm motorized zoom lens, this module provides extended framing control for applications that require both mid-range and tighter long-range views.
Key Features:
- 12MP global shutter IP camera module
- 5-50mm motorized lens for extended zoom flexibility
- Sony 1/1.1” 12MP CMOS global shutter sensor
- Compact 42 x 42mm double-board design
- Embedded Linux platform
- 64-bit Quad Core RISC-V SoC
- H.265, H.264, and MJPEG compression
- Up to 3840 x 2160 video output at 30fps
- Integrated NPU for AI object detection
- Supports MobileNet V2 + SSDLite and YOLO7
- Trigger input and Flash/IR output
- WDR, HLC, BLC, 2DNR, 3DNR, sharpness, brightness, and contrast adjustment
- Designed for long-range inspection, UAV imaging, intelligent traffic, and AI surveillance
Applications:
- Long-range UAV and drone imaging
- Intelligent traffic monitoring
- Perimeter surveillance
- AI object detection and analytics
- Industrial inspection and automation
- Robotics vision systems
- Smart city monitoring
- Remote visual inspection
- Security and situational awareness
- Embedded machine vision systems
| Brand | IPX |
| Model | NMG-1242M10X-W |
| Camera Type | 12MP IP Camera Module |
| Board Design | 42 x 42mm Double Board |
| Image Sensor | Sony CMOS Sensor, 1/1.1” 12MP |
| Shutter Type | Global Shutter |
| Lens | 5-50mm Motorized Lens |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Video Output | Up to 3840 x 2160 @ 30fps |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLO7 Object Detection |
| Interfaces | Trigger In, Flash / IR Out |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Dimensions | 42 x 42mm Camera Board |
| Lens Options | Custom lens options available by inquiry |
