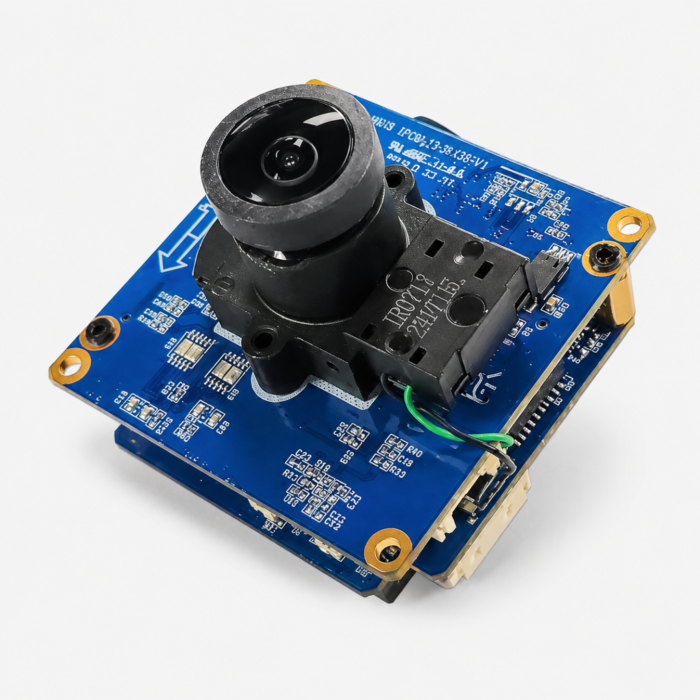

IPX NM-842M5X-W 8MP 42x42mm IP Camera Module with 6-22mm Motorized Lens, Double Board

The IPX NM-842M5X-W is an 8MP 42x42mm IP camera module with a 6-22mm motorized zoom lens for adjustable high-resolution embedded imaging. This model is built for OEM systems that need flexible field-of-view control, detailed 4K-capable IP video, and onboard AI processing in a compact camera board format.

Using a 1/2.8" 8MP Sony CMOS sensor, 64-bit Quad Core RISC-V SoC, and Embedded Linux, the NM-842M5X-W supports H.265, H.264, and MJPEG video up to 3840x2160 at 30fps. With NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection, it is well suited for smart surveillance, robotics, intelligent traffic, machine vision, industrial inspection, remote monitoring, parking applications, and OEM AI vision products.

Key Features:

• 8MP IP camera module with 1/2.8" Sony CMOS sensor
• 6-22mm motorized zoom lens for adjustable field-of-view control
• Compact 42 x 42mm camera board
• 64-bit Quad Core RISC-V SoC running Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2160 video output at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Supports smart AI vision, surveillance, inspection, traffic, and robotics applications
• Video processing includes sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
• Part of the NM-842 family with fixed focus and motorized zoom lens options
