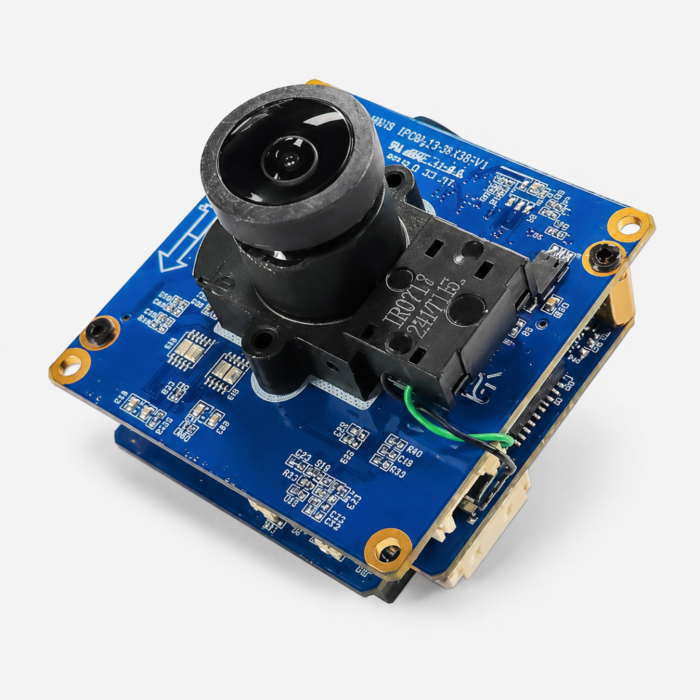

IPX NM-842M4X-W 8MP 42x42mm IP Camera Module with 2.7-13.5mm Motorized Lens, Double Board

The IPX NM-842M4X-W is a compact 8MP 42x42mm IP camera module with a 2.7-13.5mm motorized zoom lens for flexible embedded imaging applications. Its adjustable lens range makes it a strong fit for OEM surveillance, robotics, intelligent traffic, inspection, parking systems, remote monitoring, and machine vision applications that require high-resolution video with variable scene coverage.

Powered by a 64-bit Quad Core RISC-V SoC running Embedded Linux, the NM-842M4X-W uses a 1/2.8" 8MP Sony CMOS sensor and supports H.265, H.264, and MJPEG video up to 3840x2160 at 30fps. Its NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection, helping integrators build smarter IP camera systems for AI object detection, security, traffic monitoring, automation, inspection, and embedded vision platforms.

Key Features:

• 8MP 42x42mm IP camera module
• 2.7-13.5mm motorized zoom lens for flexible viewing angle control
• 1/2.8" Sony CMOS image sensor
• 64-bit Quad Core RISC-V SoC
• Embedded Linux operating system
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2160 resolution at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Video processing controls include sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
• Designed for smart surveillance, robotics, machine vision, traffic monitoring, inspection, and OEM integration
