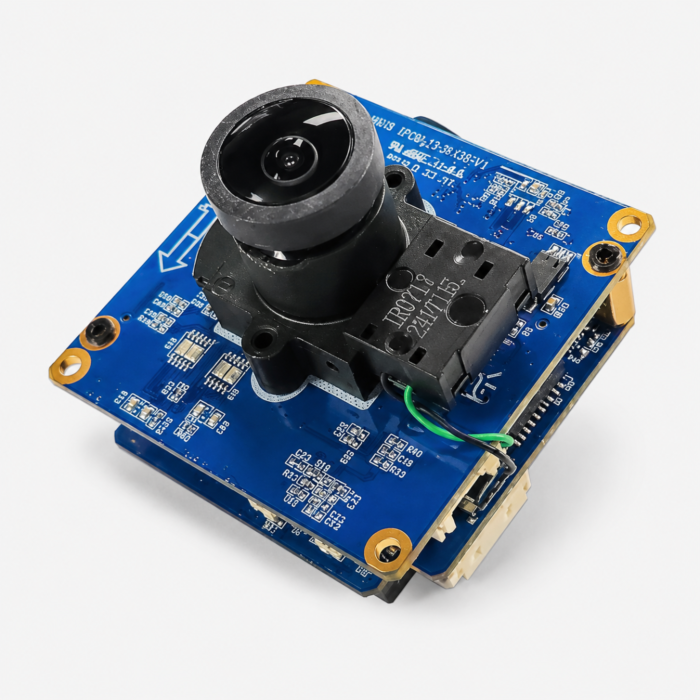

IPX NM-842M10X-W 8MP 42x42mm IP Camera Module with 5-50mm Motorized Lens, Double Board

The IPX NM-842M10X-W is an 8MP 42x42mm IP camera module with a 5-50mm motorized zoom lens for long-range, adjustable embedded imaging applications. Designed for compact OEM integration, this model is ideal for surveillance, intelligent traffic, remote inspection, robotics, industrial monitoring, parking systems, and AI vision platforms that require high-resolution video with extended zoom flexibility.

The NM-842M10X-W features a 1/2.8" 8MP Sony CMOS sensor, a 64-bit Quad Core RISC-V SoC, Embedded Linux, and H.265/H.264/MJPEG video compression up to 3840x2160 at 30fps. Its onboard NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection, giving engineers and integrators a powerful 4K-capable IP camera module for smart surveillance, machine vision, object detection, traffic monitoring, and OEM embedded video systems.

Key Features:

• 8MP IP camera module with 1/2.8" Sony CMOS sensor
• 5-50mm motorized zoom lens for long-range adjustable imaging
• Compact 42 x 42mm board-level camera design
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2160 video output at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Video controls include sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
• Designed for long-range surveillance, traffic monitoring, inspection, robotics, machine vision, and OEM systems
• Part of the NM-842 8MP camera module family with fixed focus and motorized zoom options
