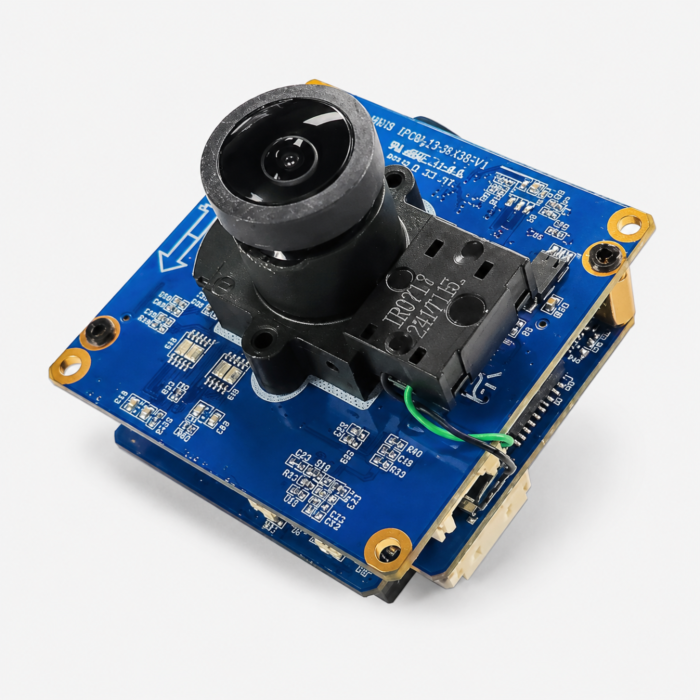

IPX NM-842B60-W 8MP 42x42mm IP Camera Module with 6mm Lens, Single Board
The IPX NM-842B60-W is an 8MP IP camera module designed for compact embedded vision applications that require high-resolution imaging, efficient video compression, and onboard AI object detection support. Built around a Sony 1/2.8" 8MP CMOS sensor, a 64-bit Quad Core RISC-V SoC, and embedded Linux, this 42 x 42mm single-board camera is well suited for robotics, UAV/drone imaging, industrial inspection, machine vision, intelligent traffic, surveillance, and remote monitoring systems.
The included 6mm fixed focus lens provides a narrower field of view than the 2.8mm and 4mm models, making the NM-842B60-W a strong choice for applications that require more subject detail, longer working distances, focused inspection areas, entry-point monitoring, traffic observation, or targeted machine vision coverage.
With video support up to 3840 x 2160 at 30fps and compression options including H.265, H.264, and MJPEG, this module provides high-quality 4K imaging while supporting efficient video streaming and storage. The onboard NPU supports MobileNet V2 + SSDLite and Yolo7 object detection, helping system designers add AI vision capability to compact camera systems.
Key Features:
- 8MP IP camera module with Sony 1/2.8" CMOS sensor
- 6mm fixed focus lens for more focused image capture and subject detail
- Compact 42 x 42mm single-board form factor
- 64-bit Quad Core RISC-V SoC with embedded Linux
- Supports H.265, H.264, and MJPEG video compression
- Up to 3840 x 2160 resolution at 30fps
- Integrated NPU for MobileNet V2 + SSDLite and Yolo7 object detection
- Video processing includes sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
- Ideal for AI vision, industrial inspection, traffic, surveillance, robotics, and UAV systems
Applications:
- Focused industrial inspection and machine vision
- Traffic monitoring and intelligent transportation systems
- Robotics and autonomous vehicle vision
- UAV/drone inspection and remote imaging
- Smart surveillance and perimeter monitoring
- AI object detection and edge analytics
- Embedded Linux camera products
- Medical, scientific, and remote observation systems
| Manufacturer / Brand | IPX |
| Model | NM-842B60-W |
| Camera Type | 8MP IP Camera Module |
| Board Type | Single Board |
| Board Size | 42 x 42mm |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Image Sensor | Sony CMOS Sensor |
| Sensor Size | 1/2.8" |
| Resolution | 8MP |
| Maximum Video Output | 3840 x 2160 @ 30fps |
| Video Compression | H.265, H.264, MJPEG |
| Lens | 6mm Fixed Focus Lens |
| Lens Options | 2.8mm, 6mm, 8mm Fixed Focus Lens / 3x & 10x Motorized Zoom Lens Options |
| NPU / AI Support | MobileNet V2 + SSDLite / Yolo7 Object Detection |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Primary Applications | Inspection, Machine Vision, Intelligent Traffic, Robotics, UAV/Drone, AI Vision, Surveillance |
