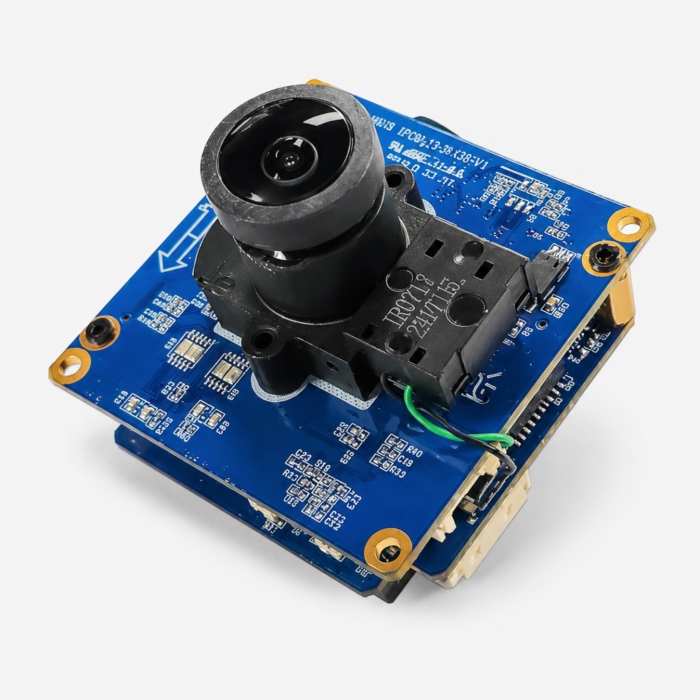

IPX NM-842B60-W 8MP 42x42mm IP Camera Module with 6mm Lens, Double Board

The IPX NM-842B60-W is a compact 8MP 42x42mm IP camera module with a 6mm fixed focus lens for applications that need a tighter field of view than wide-angle board cameras. It is designed for detailed embedded video in surveillance, inspection, intelligent traffic, robotics, machine vision, remote monitoring, and OEM network camera systems.

Featuring a 1/2.8" 8MP Sony CMOS sensor, a 64-bit Quad Core RISC-V SoC, and Embedded Linux, the NM-842B60-W delivers H.265, H.264, and MJPEG video up to 3840x2160 at 30fps. Its NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection, giving integrators a compact 4K-capable IP module for AI vision, object detection, industrial automation, smart surveillance, and inspection systems.

Key Features:

• 8MP IP camera module with 1/2.8" Sony CMOS sensor
• 6mm fixed focus lens for tighter field-of-view applications
• Compact 42 x 42mm board-level design
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2160 resolution at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Available lens family includes fixed focus and motorized zoom options
• Image processing controls for sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
• Designed for inspection, surveillance, intelligent traffic, robotics, and OEM embedded video systems
