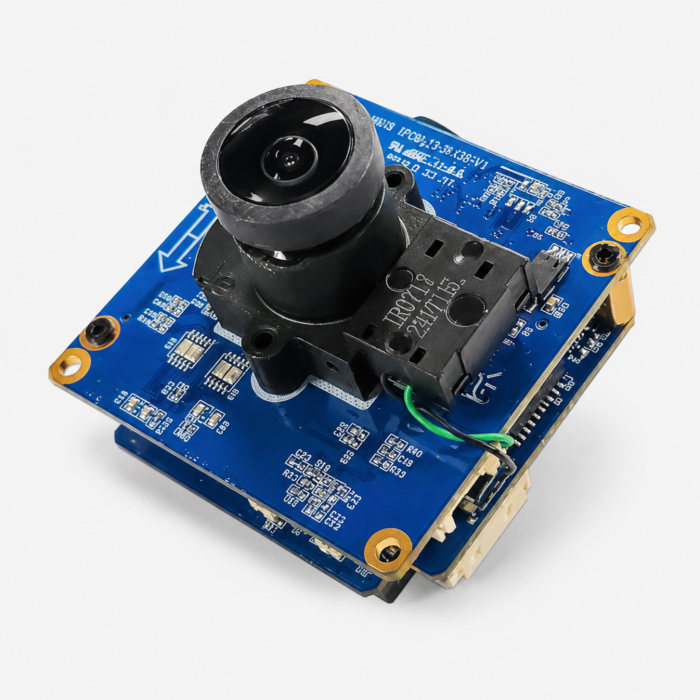

IPX NM-842B40-W 8MP 42x42mm IP Camera Module with 4mm Lens, Single Board

The IPX NM-842B40-W is an 8MP 42 x 42mm single-board IP camera module engineered for embedded imaging, AI vision, robotics, UAV/drone systems, machine vision, intelligent traffic, surveillance, inspection, and remote monitoring applications. Featuring a Sony 1/2.8" 8MP CMOS sensor and a 64-bit Quad Core RISC-V SoC running embedded Linux, this compact module delivers high-resolution video performance in a small integration-ready footprint.

This model includes a 4mm fixed focus lens, making it a strong general-purpose option for applications that need a balanced field of view with improved subject detail compared to wider lens options. The NM-842B40-W supports H.265, H.264, and MJPEG video compression with output up to 3840 x 2160 at 30fps, giving system designers high-quality 4K imaging with efficient network video streaming.

For edge AI and intelligent imaging applications, the onboard NPU supports MobileNet V2 + SSDLite and Yolo7 object detection. This makes the IPX NM-842B40-W well suited for smart surveillance, autonomous robotics, object detection, automated inspection, traffic analytics, and embedded AI camera systems.

Key Features:

• 8MP single-board IP camera module from IPX
• 4mm fixed focus lens for balanced scene coverage and subject detail
• Sony 1/2.8" CMOS sensor
• Compact 42 x 42mm board format for embedded integration
• 64-bit Quad Core RISC-V SoC with embedded Linux
• H.265, H.264, and MJPEG video compression
• Video output up to 3840 x 2160 at 30fps
• NPU support for MobileNet V2 + SSDLite and Yolo7 object detection
• WDR, HLC, BLC, 2DNR, 3DNR, sharpness, brightness, and contrast controls

Applications:

• Industrial machine vision and inspection
• Robotics and autonomous platforms
• AI object detection and smart analytics
• UAV/drone payload imaging
• Intelligent traffic systems
• Security and surveillance systems
• Embedded Linux vision products
• Medical, laboratory, and remote monitoring applications
