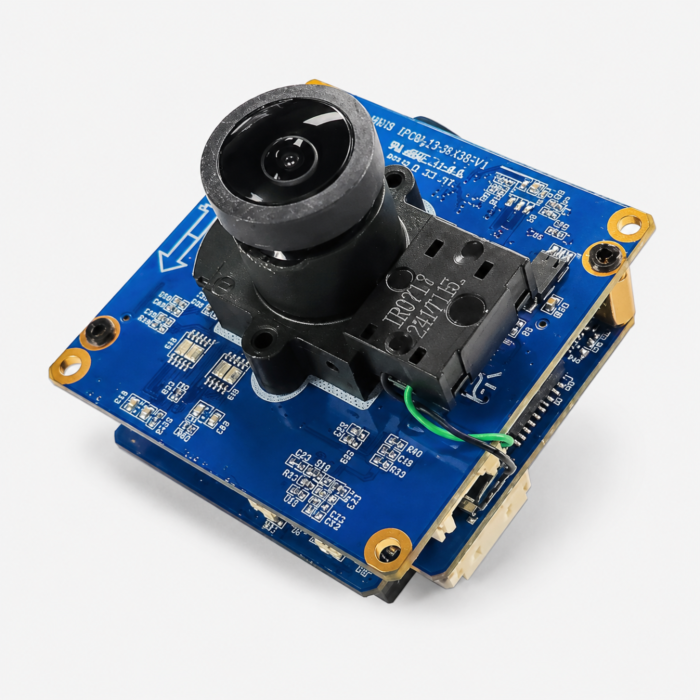

IPX NM-842B40-W 8MP 42x42mm IP Camera Module with 4mm Lens, Double Board

The IPX NM-842B40-W is an 8MP 42x42mm IP camera module built for compact OEM imaging systems that require high-resolution network video, onboard processing, and reliable embedded performance. Its 4mm fixed focus lens provides a balanced field of view, making it a practical choice for surveillance, intelligent traffic, robotics, industrial monitoring, inspection, and machine vision applications.

Powered by a 64-bit Quad Core RISC-V SoC with Embedded Linux, the NM-842B40-W uses a 1/2.8" 8MP Sony CMOS sensor and supports H.265, H.264, and MJPEG video up to 3840x2160 at 30fps. NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection helps enable smart camera functions for AI surveillance, traffic analysis, object detection, automation, and OEM embedded vision platforms.

Key Features:

• 8MP 42x42mm IP camera module for OEM embedded vision
• 1/2.8" Sony CMOS image sensor
• 4mm fixed focus lens for balanced scene coverage
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2160 video output at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Lens options include 2.8mm, 4mm, 6mm, 8mm fixed focus and 3x / 10x motorized zoom configurations
• Video processing includes sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
• Ideal for surveillance, robotics, traffic monitoring, inspection, automation, and AI vision systems
