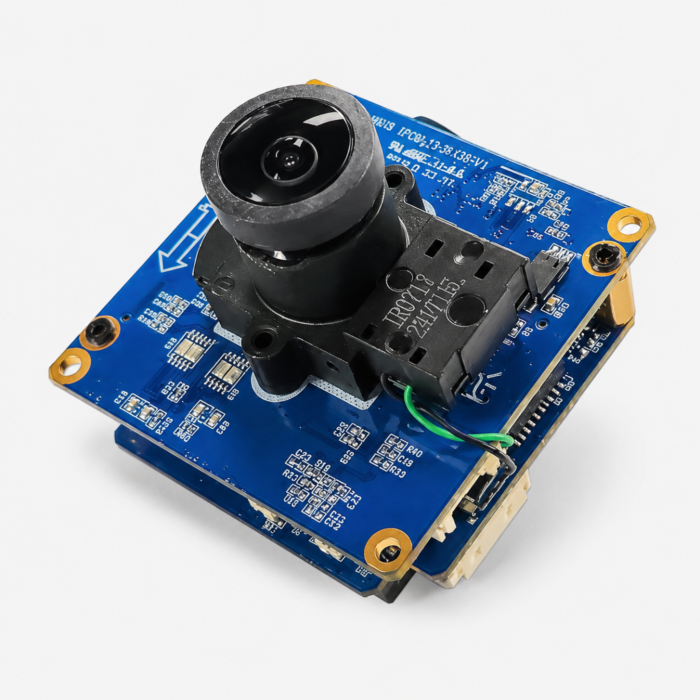

IPX NM-842B28-W 8MP 42x42mm IP Camera Module with 2.8mm Lens, Single Board
The IPX NM-842B28-W is an 8MP single-board IP camera module designed for compact embedded vision systems, robotics, UAV/drone imaging, intelligent traffic, surveillance, inspection, and AI video applications. Built on a 42 x 42mm camera board, this module combines a Sony 1/2.8" 8MP CMOS sensor, 64-bit Quad Core RISC-V SoC, embedded Linux, and efficient H.265/H.264/MJPEG video compression in a compact integration-ready design.
Equipped with a 2.8mm fixed focus lens, the NM-842B28-W provides a wider field of view for area monitoring, situational awareness, robotics navigation, drone payloads, smart surveillance, and embedded vision systems where broad scene coverage is required. The camera supports video up to 3840 x 2160 at 30fps, making it suitable for high-resolution 4K imaging and real-time video streaming applications.
With onboard NPU support for MobileNet V2 + SSDLite and Yolo7 object detection, the IPX NM-842B28-W is ideal for edge AI applications that require object recognition, detection, analytics, and intelligent video processing directly from a compact IP camera board.
Key Features:
- 8MP IP camera module with Sony 1/2.8" CMOS sensor
- 2.8mm fixed focus lens for wide-angle embedded vision applications
- Compact 42 x 42mm single-board camera design
- 64-bit Quad Core RISC-V SoC with embedded Linux
- Supports H.265, H.264, and MJPEG video compression
- Up to 3840 x 2160 resolution at 30fps
- Integrated NPU support for MobileNet V2 + SSDLite and Yolo7 object detection
- Image controls include sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
- Designed for robotics, UAVs, AI vision, machine vision, intelligent traffic, and surveillance
Applications:
- Robotics vision and autonomous navigation
- UAV/drone video and wide-area imaging
- AI object detection and edge vision systems
- Embedded Linux camera systems
- Smart surveillance and security monitoring
- Industrial inspection and machine vision
- Intelligent traffic monitoring
- Medical, scientific, and remote monitoring systems
| Manufacturer / Brand | IPX |
| Model | NM-842B28-W |
| Camera Type | 8MP IP Camera Module |
| Board Type | Single Board |
| Board Size | 42 x 42mm |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Image Sensor | Sony CMOS Sensor |
| Sensor Size | 1/2.8" |
| Resolution | 8MP |
| Maximum Video Output | 3840 x 2160 @ 30fps |
| Video Compression | H.265, H.264, MJPEG |
| Lens | 2.8mm Fixed Focus Lens |
| Lens Options | 2.8mm, 6mm, 8mm Fixed Focus Lens / 3x & 10x Motorized Zoom Lens Options |
| NPU / AI Support | MobileNet V2 + SSDLite / Yolo7 Object Detection |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Primary Applications | Robotics, UAV/Drone, AI Vision, Intelligent Traffic, Machine Vision, Surveillance, Inspection |
