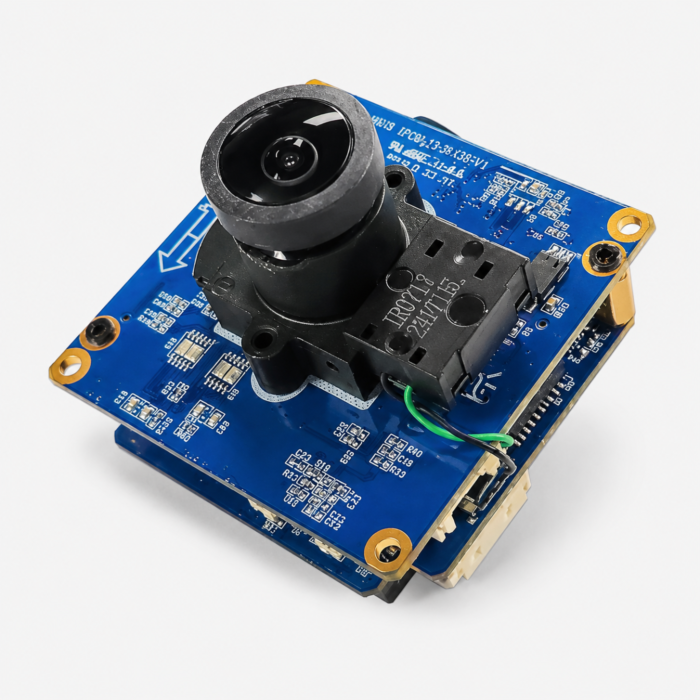

IPX NM-842B28-W 8MP 42x42mm IP Camera Module with 2.8mm Lens, Double Board

The IPX NM-842B28-W is a compact 8MP 42x42mm IP camera module designed for high-resolution embedded video, OEM surveillance, robotics, intelligent traffic, inspection, and AI-enabled vision applications. Featuring a 2.8mm fixed focus lens, this model provides a wider field of view for applications that need broad scene coverage in a compact board-level camera design.

Built around a 1/2.8" 8MP Sony CMOS sensor and a 64-bit Quad Core RISC-V SoC running Embedded Linux, the NM-842B28-W supports H.265, H.264, and MJPEG video compression with output up to 3840x2160 at 30fps. Its onboard NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection, making it a strong choice for smart surveillance, AI vision, traffic monitoring, robotics, and OEM imaging systems.

Key Features:

• 8MP IP camera module with 1/2.8" Sony CMOS sensor
• Compact 42 x 42mm camera board design
• 2.8mm fixed focus lens for wider field-of-view applications
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2160 video output at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Video processing controls for sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
• Designed for OEM integration, robotics, UAV/drone vision, surveillance, traffic, machine vision, and inspection systems
