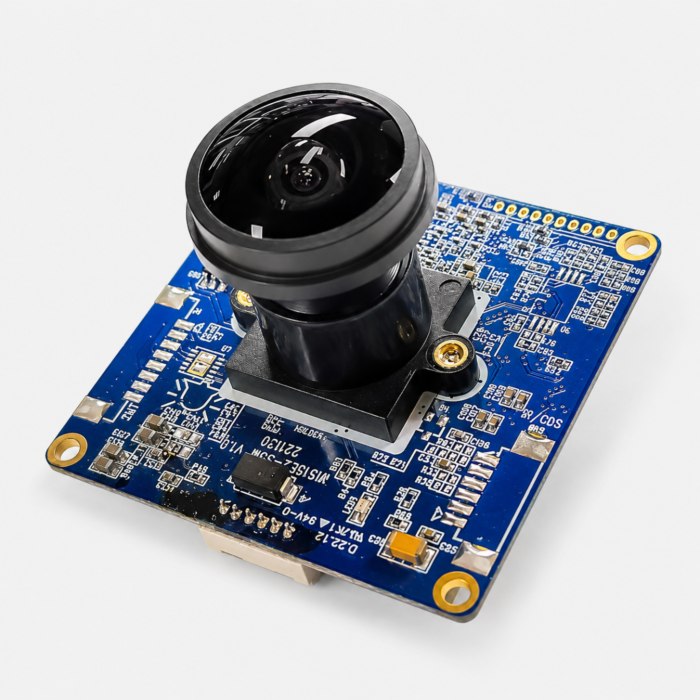

IPX NM-542M5X-W 5MP 42x42mm IP Camera Module with 6-22mm Motorized Lens, Single Board

The IPX NM-542M5X-W is a compact 5MP IP camera module with a 6-22mm motorized lens, designed for OEM applications that require adjustable field-of-view control and intelligent network video performance. Its 42 x 42mm board-level design makes it well suited for robotics, surveillance, inspection, intelligent traffic, parking analytics, remote monitoring, and embedded AI vision systems.

Built with a 1/2.8" 5MP Sony CMOS sensor, a 64-bit Quad Core RISC-V SoC, and Embedded Linux, the NM-542M5X-W supports H.265, H.264, and MJPEG video up to 2592x1944 at 30fps. Its onboard NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection, while empty-space analytics, optional number recognition, WDR, HLC/BLC, and 2D/3D noise reduction help support smart surveillance and machine vision applications.

Key Features:

• 5MP IP camera module with 6-22mm motorized lens
• 1/2.8" Sony CMOS image sensor
• Compact 42 x 42mm camera board
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 2592 x 1944 resolution at 30fps
• Motorized lens supports adjustable field-of-view control
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Empty-space analytics for up to 12 spaces
• Number recognition software option available
• Video processing includes sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
