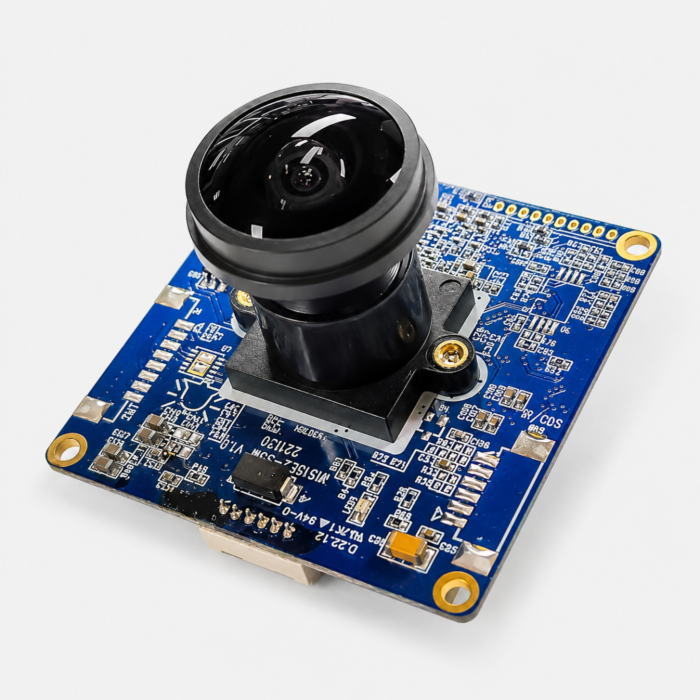

IPX NM-542M4X-W 5MP 42x42mm IP Camera Module with 2.7-13.5mm Motorized Lens, Single Board

The IPX NM-542M4X-W is a 5MP 42x42mm IP camera module featuring a 2.7-13.5mm motorized lens for flexible field-of-view control in compact embedded systems. This model is well suited for smart surveillance, robotics, intelligent traffic, parking analytics, inspection, industrial monitoring, and OEM network video applications that need adjustable lens positioning and onboard video intelligence.

Powered by a 64-bit Quad Core RISC-V SoC with Embedded Linux, the NM-542M4X-W uses a 1/2.8" 5MP Sony CMOS sensor and supports H.265, H.264, and MJPEG video up to 2592x1944 at 30fps. Its NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection, while empty-space analytics, optional number recognition, WDR, HLC/BLC, and 2D/3DNR provide useful tools for intelligent video systems.

Key Features:

• 5MP 42x42mm IP camera module
• 2.7-13.5mm motorized lens for flexible viewing angle control
• 1/2.8" Sony CMOS image sensor
• 64-bit Quad Core RISC-V SoC
• Embedded Linux operating system
• H.265, H.264, and MJPEG video compression
• Up to 2592 x 1944 resolution at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Empty-space analytics for up to 12 spaces
• Optional number recognition software
• Image controls include sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
