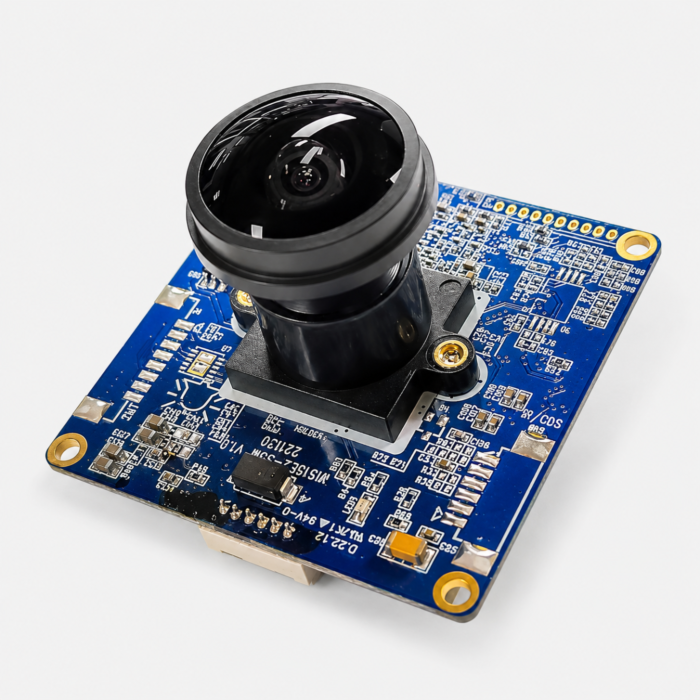

IPX NM-542B60-W 5MP 42x42mm IP Camera Module with 6mm Lens, Single Board

The IPX NM-542B60-W is a compact 5MP 42x42mm IP camera module with a 6mm lens for applications requiring a tighter field of view than wide-angle board cameras. It is designed for OEM embedded systems, machine vision, intelligent traffic, inspection, remote monitoring, robotics, and security applications where detailed IP video and compact integration are important.

This module features a 1/2.8" 5MP Sony CMOS sensor, a 64-bit Quad Core RISC-V SoC, Embedded Linux, and H.265/H.264/MJPEG video up to 2592x1944 at 30fps. With NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection, the NM-542B60-W supports smart analytics applications such as object detection, empty-space monitoring for up to 12 spaces, and optional number recognition.

Key Features:

• 5MP IP camera module with 6mm lens
• 1/2.8" Sony CMOS sensor
• Compact 42 x 42mm board-level form factor
• 64-bit Quad Core RISC-V SoC running Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 2592 x 1944 resolution at 30fps
• NPU support for AI object detection
• MobileNet V2 + SSDLite / YOLOv7 support
• Empty-space analytics for up to 12 spaces
• Optional number recognition software support
• Video tuning for sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
