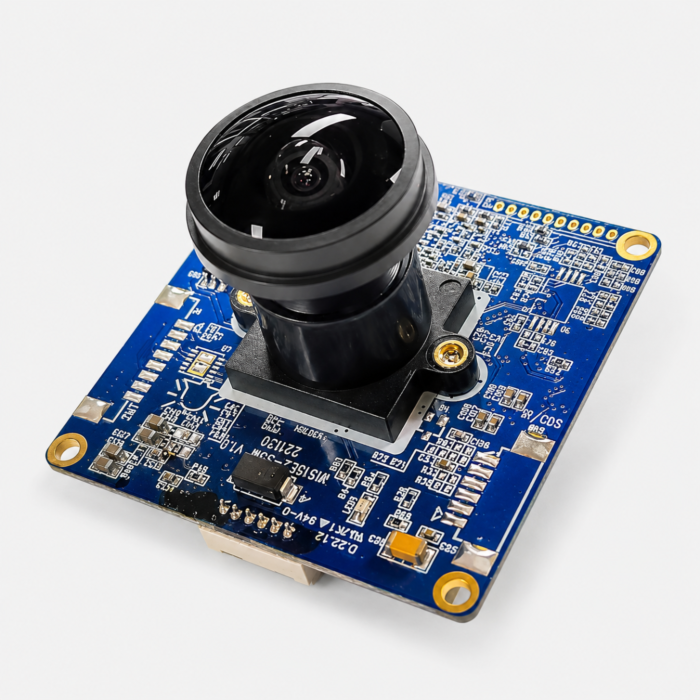

IPX NM-542B40-W 5MP 42x42mm IP Camera Module with 4mm Lens, Single Board

The IPX NM-542B40-W is a 5MP 42x42mm IP camera module built for compact OEM video systems that require high-resolution imaging, onboard processing, and network video performance. With its 4mm lens, this model provides a balanced field of view for surveillance, robotics, intelligent traffic, remote monitoring, inspection, and embedded machine vision applications.

Powered by a 64-bit Quad Core RISC-V SoC with Embedded Linux, the NM-542B40-W supports H.265, H.264, and MJPEG video up to 2592x1944 at 30fps. Its onboard NPU enables MobileNet V2 + SSDLite and YOLOv7 object detection, while software options such as number recognition and empty-space analytics make it a strong choice for smart parking, access control, traffic monitoring, and AI-enabled surveillance platforms.

Key Features:

• 5MP 42x42mm IP camera module for OEM embedded vision
• 1/2.8" Sony CMOS sensor for high-resolution imaging
• 4mm lens for balanced field-of-view applications
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 2592 x 1944 video output at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Empty-space analytics for up to 12 spaces
• Number recognition software option available
• Video processing support for sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
