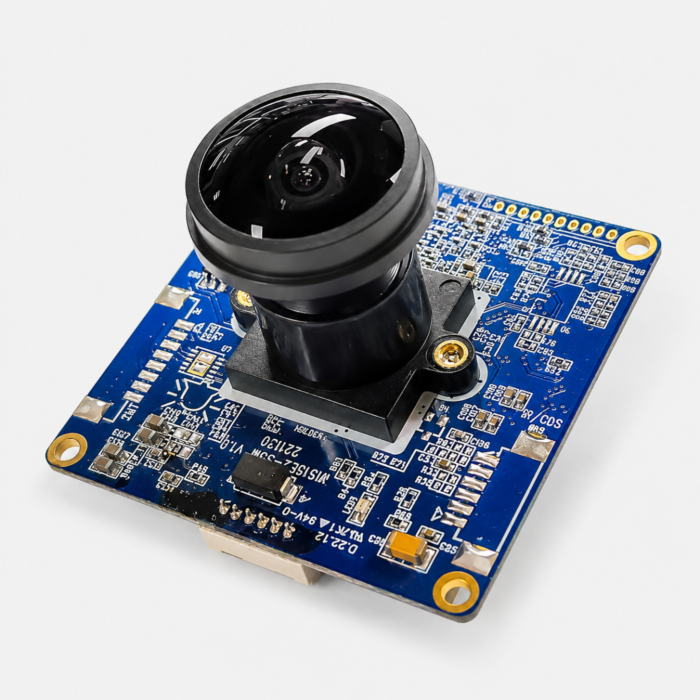

IPX NM-542B28-W 5MP 42x42mm IP Camera Module with 2.8mm Lens, Single Board

The IPX NM-542B28-W is a compact 5MP 42x42mm IP camera module designed for embedded vision, OEM surveillance, robotics, intelligent traffic, inspection, and AI-enabled monitoring applications. Built around a 64-bit Quad Core RISC-V SoC running Embedded Linux, this module combines high-resolution IP video with onboard processing for advanced vision applications.

Featuring a 1/2.8" 5MP Sony CMOS sensor, H.265, H.264, and MJPEG compression, and video output up to 2592x1944 at 30fps, the NM-542B28-W provides detailed network video in a compact board-level format. Its NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection, making it a strong option for smart camera systems, empty-space analytics, number recognition, security devices, and OEM AI vision products.

Key Features:

• 5MP IP camera module with 1/2.8" Sony CMOS sensor
• Compact 42 x 42mm board-level design
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 2592 x 1944 resolution at 30fps
• NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection
• Empty-space analytics for up to 12 spaces
• Optional number recognition software support
• Image processing controls for sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
• Designed for OEM integration, robotics, surveillance, traffic, inspection, and AI vision systems
