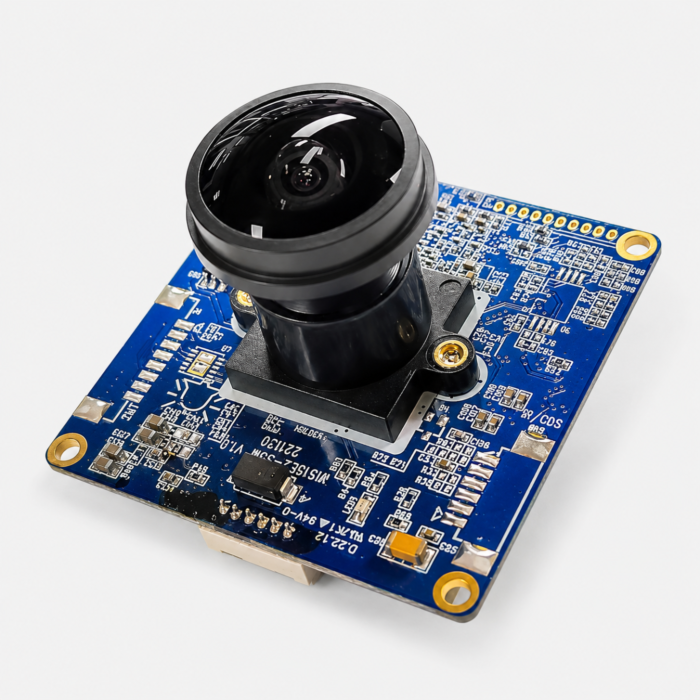

IPX NM-532B28-W 5MP 2.8mm Lens Single Board IP Camera Module with AI Object Detection
IPX NM-532B28-W is a 5MP single board IP camera module with a 2.8mm lens, Sony CMOS sensor, Embedded Linux, H.265/H.264/MJPEG video, edge AI object detection, and empty space analytics for intelligent vision systems.
The IPX NM-532B28-W is a compact 5MP single board IP camera module designed for embedded vision, robotics, UAV, intelligent traffic, parking analytics, surveillance, and industrial imaging applications. Built around a 64-bit Quad Core RISC-V SoC with Embedded Linux, this 42 x 42mm camera board provides high-resolution IP video with efficient H.265, H.264, and MJPEG compression.
Featuring a Sony 1/2.8" 5MP CMOS sensor and a 2.8mm lens, the NM-532B28-W is well suited for wide-area monitoring where a broader field of view is needed. It supports video up to 2592 x 1944 at 30fps, making it a strong choice for applications that require detailed image capture, AI-assisted detection, and compact integration.
The integrated NPU supports MobileNet V2 + SSDLite and YOLO7 object detection, enabling edge AI functions for smart surveillance, intelligent transportation systems, parking space monitoring, robotics navigation, and automated inspection. With empty space analytics for up to 12 spaces and optional number recognition, this module is especially useful for parking guidance, access control, and smart city deployments.
Key Features:
- 5MP IP camera module with Sony 1/2.8" CMOS sensor
- 2.8mm lens for wider field-of-view monitoring
- Single board 42 x 42mm embedded camera design
- 64-bit Quad Core RISC-V SoC with Embedded Linux
- H.265, H.264, and MJPEG video compression
- Up to 2592 x 1944 resolution at 30fps
- Integrated NPU for edge AI object detection
- MobileNet V2 + SSDLite and YOLO7 support
- Empty space analytics for up to 12 spaces
- Optional number recognition software support
- Image processing controls including sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
Common Applications:
- Parking space detection and empty space analytics
- Smart traffic and intelligent transportation systems
- Robotics and autonomous platform vision
- UAV and drone camera integration
- Industrial inspection and machine vision monitoring
- AI surveillance and security systems
- Access control and number recognition systems
- Smart city and embedded vision applications
| Brand | IPX |
| Model | NM-532B28-W |
| Camera Type | 5MP Single Board IP Camera Module |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Image Sensor | Sony CMOS Sensor |
| Sensor Size | 1/2.8" |
| Resolution | 5MP |
| Maximum Video Output | 2592 x 1944 at 30fps |
| Video Compression | H.265, H.264, MJPEG |
| Lens | 2.8mm Fixed Lens |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLO7 for Object Detection |
| Key Feature | Empty Space Analytics, Up to 12 Spaces |
| Software Options | Number Recognition |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Board Size | 42 x 42mm |
| Board Design | Single Board |
