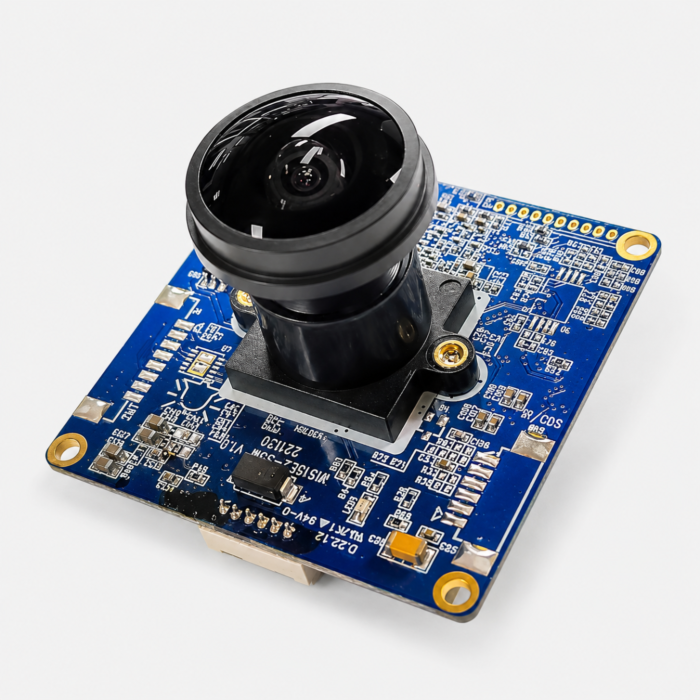

IPX NM-1242B60-W 12MP AI IP Camera Module with Sony CMOS Sensor, RISC-V SoC & 6mm Lens
The IPX NM-1242B60-W from Infinite Pixels is a compact 12MP AI IP camera module designed for applications that require a more focused fixed-lens view in a small embedded camera format. Using a Sony 1/2.3" 12MP CMOS sensor, 64-bit quad-core RISC-V SoC, embedded Linux, and integrated NPU processing, this module gives OEM developers a high-resolution IP camera platform for smart surveillance, intelligent traffic, industrial inspection, machine vision, robotics, and remote monitoring.
With video support for H.265, H.264, and MJPEG up to 3840 x 2880 at 20 fps, the NM-1242B60-W is built for detailed image capture in bandwidth-conscious IP video systems. The onboard NPU supports object detection using MobileNet V2 + SSDLite and YOLO7, allowing the camera module to support edge AI workflows for object detection, space analytics, and optional number recognition.
The 6mm fixed lens provides a narrower field of view than the 2.8mm and 4mm models, making this SKU a better fit for targeted scene monitoring, vehicle zones, inspection areas, access points, corridors, equipment monitoring, and applications where the camera needs more reach or tighter framing. The 42mm x 42mm double-board design supports compact integration into custom enclosures and OEM devices.
Key Features:
- IPX / Infinite Pixels 12MP AI IP camera module
- Sony 1/2.3" 12MP CMOS image sensor
- 64-bit quad-core RISC-V processor with embedded Linux
- Onboard NPU for AI object detection
- Supports MobileNet V2 + SSDLite and YOLO7
- H.265, H.264, and MJPEG video compression
- Up to 3840 x 2880 video at 20 fps
- 6mm fixed lens for tighter scene coverage
- Compact 42mm x 42mm double-board camera module
- Empty space analytics for up to 12 spaces
- Optional number recognition software support
- Video processing includes sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
Common Applications:
- Targeted surveillance and security monitoring
- Vehicle zone monitoring
- Smart parking analytics
- Machine vision and inspection systems
- Robotics and autonomous equipment
- Intelligent traffic camera systems
- Industrial monitoring
- OEM embedded AI camera integration
| Brand | IPX / Infinite Pixels |
| Model | NM-1242B60-W |
| Camera Type | AI IP Camera Module |
| Image Sensor | Sony CMOS Sensor |
| Sensor Size | 1/2.3" |
| Resolution | 12MP |
| Maximum Video Resolution | 3840 x 2880 |
| Maximum Frame Rate | 20 fps |
| Shutter Type | Rolling Shutter |
| SoC | 64-bit Quad-Core RISC-V |
| Operating System | Embedded Linux |
| Video Compression | H.265, H.264, MJPEG |
| NPU / AI Processing | Integrated NPU for Object Detection |
| AI Model Support | MobileNet V2 + SSDLite / YOLO7 |
| Analytics | Empty Space Analytics, up to 12 Spaces |
| Software Options | Number Recognition |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Lens | 6mm Fixed Lens |
| Board Size | 42mm x 42mm |
| Board Design | Double Board |
| Form Factor | Board-Level Camera Module |
