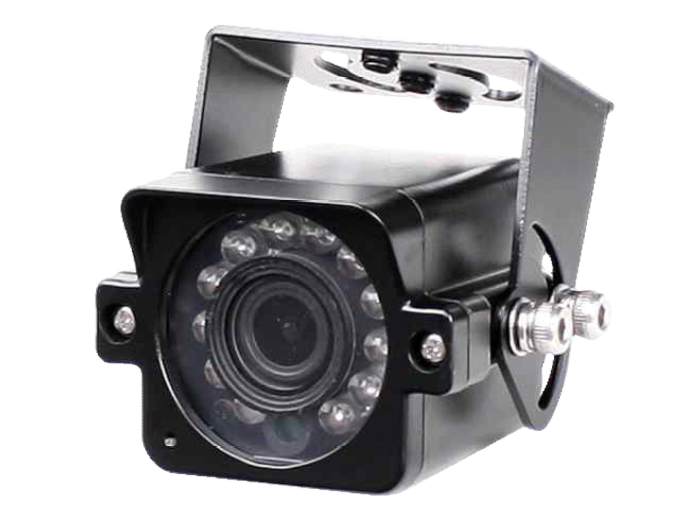

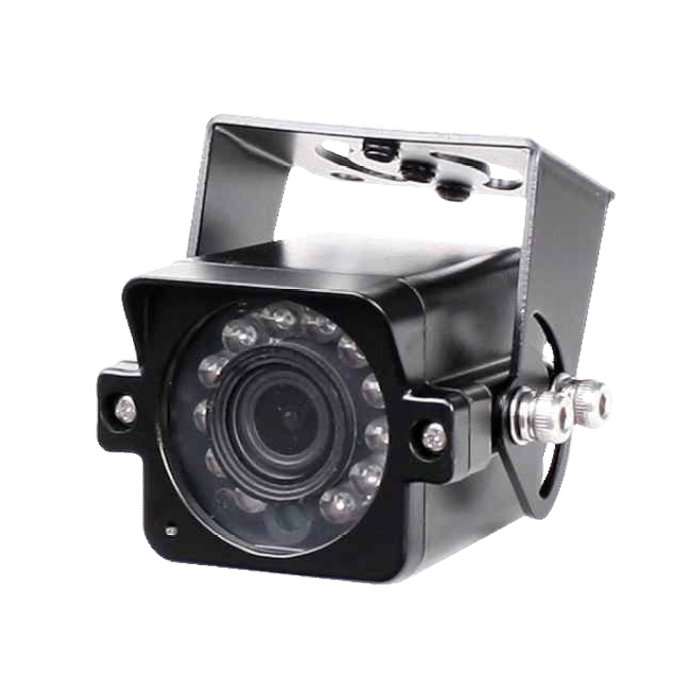

IPX-NF1Y7-2.8 Outdoor SDI Surveillance Camera, 1/2.8" 2.12MP Sony Starvis CMOS, 1080p30, 2.8mm Lens, 940nm IR, Dual BNC, IP66, 0.01 Lux
The IPX-NF1Y7-2.8 (IPXNF1Y72.8) is a rugged outdoor-ready HD-SDI/EX-SDI surveillance camera featuring a 1/2.8" 2.12MP Sony Starvis CMOS sensor for crisp 1080p25/30 full HD video. Equipped with a wide-angle f=2.8mm M12 board lens, it delivers a 123.5° diagonal field of view and excellent low-light sensitivity down to 0.01 Lux (F2.5, 30IRE), or 0 Lux with its 12 built-in 940nm invisible IR LEDs. The camera supports HD-SDI, EX-SDI (v1/v2), CVBS, AHD, TVI, and CVI video output, selectable via BNC connectors for versatile analog and digital integration.
This compact bullet-style camera offers a progressive scan system, 3DNR noise reduction, WDR, DSS (Sens-up x32), and multiple day/night modes including ICR-based IR cut filtering. Housing is IP66-rated for outdoor environments, and power is supplied via isolated DC 9~36V board at <2.5W power draw. Additional features include motion detection, privacy masking (16 zones), defog, D-Zoom, mirror/flip/rotate options, and multilingual OSD support (via optional cable). Ideal for surveillance in sensitive areas requiring covert IR lighting.
Features:
- 1/2.8” 2.12MP Sony Starvis CMOS Sensor
- 1080p25/30 Full HD Output (HD-SDI / EX-SDI v1/v2)
- Secondary BNC: CVBS, AHD, TVI, CVI (1080p supported)
- 2.8mm M12 Fixed Board Lens, 123.5° Diagonal FoV
- 12pcs 940nm IR LEDs for Invisible IR Illumination
- 0.01 Lux Low Light Sensitivity (0 Lux IR On)
- WDR, Sens-up (DSS) x32, 3DNR Noise Reduction
- Motion Detection, Privacy Masking, D-Zoom, Defog
- Isolated Power Board (DC9~36V), <2.5W Power Draw
- Compact, IP66-Rated Waterproof Housing
Applications:
- Covert outdoor surveillance
- Low-light and zero-light perimeter monitoring
- Infrared-sensitive site security
- Long-term weatherproof installations
- SDI-based NVR/DVR security systems
- Industrial and remote facility monitoring
| Model | IPX-NF1Y7-2.8 |
|---|---|
| Sensor | 1/2.8” Sony Starvis CMOS |
| Total Pixels | 2.16MP (1945 x 1109) |
| Active Pixels | 2.12MP (1937 x 1097) |
| Scanning System | Progressive Scan (16:9) |
| Lens | 2.8mm Fixed, F2.5 (M12 Board Type) |
| Field of View | 123.5° (D), 104° (H), 59° (V) |
| Min. Illumination | 0.01 Lux (F2.5, 30IRE), 0 Lux (IR On) |
| IR LEDs | 12pcs, 940nm Wavelength (Invisible IR) |
| Video Output 1 | HD-SDI / EX-SDI v1/v2 (1080p25/30/50/60, 720p25/30/50/60, 1080i50/60) |
| Video Output 2 | CVBS / AHD / TVI / CVI (1080p25/30 or D1 Analog) |
| OSD Support | Via Cable (Optional), Camera Title Max 8 Characters |
| Language | English, Chinese (Simplified/Traditional), Japanese, Korean |
| Day/Night Modes | AUTO, COLOR, B/W, EXT |
| WDR | Supported |
| Noise Reduction | 3DNR (Off, Low, Medium, High) |
| Sens-up (DSS) | Up to x32 |
| Electronic Shutter | 1/25(30) to 1/25,600(30,000) sec |
| Gain Control | AGC (0–10) |
| Image Adjustments | Motion Detection (4 Zones), Privacy Mask (16 Zones), Defog, D-Zoom, Gamma, Shading, Mirror/Flip/Rotate |
| Power Input | DC 9–36V Isolated Power Board |
| Power Consumption | Less than 2.5W (200mA) |
| Operating Temperature | -10°C to +55°C (0%–90% RH) |
| Housing | IP66 Waterproof Rated |
| Dimensions | 64.4mm (W) x 64.4mm (H) x 70mm (D) |
| Weight | 266g |
