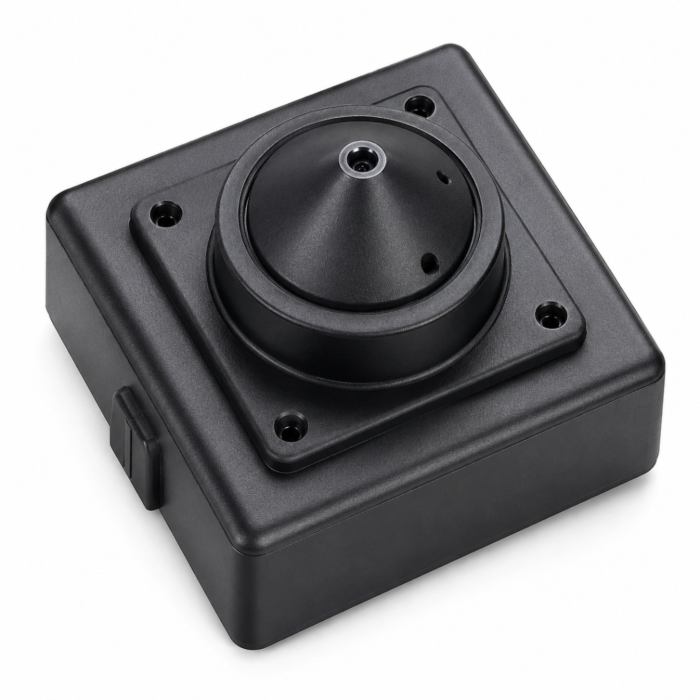

IPX DQ-P3042DM-P4-4.3 2.2MP 30×30mm Miniature 3G-SDI Pinhole Camera | Sony IMX327, 4.3mm Lens
IPX DQ-P3042DM-P4-4.3 2.2MP 30×30mm miniature 3G-SDI pinhole camera with Sony IMX327 sensor, 4.3mm P4 lens, 1080p60 video, built-in OSD, Real WDR, 3D-DNR, Defog, RS-485, and DC12V input.
The IPX DQ-P3042DM-P4-4.3 is a 2.2MP 30×30mm miniature 3G-SDI pinhole camera designed for compact embedded video systems, robotics, UAVs, inspection platforms, intelligent traffic, and discreet surveillance applications. Its 4.3mm P4 pinhole lens provides a tighter field of view while maintaining a very small camera footprint.
Built with the 1/2.8" Sony IMX327 progressive scan CMOS sensor and Eyenix EN781F DSP, the IPX DQ-P3042DM-P4-4.3 delivers 1080p video at up to 60/50fps over 3G-SDI. Integrated imaging features include Real WDR, 3D-DNR, digital day/night, defog, and Sense-up 32x for reliable performance in low-light and high-contrast environments.
Key Features:
- IPX 2.2MP 30×30mm miniature 3G-SDI pinhole camera
- 1/2.8" Sony IMX327 progressive scan CMOS sensor
- 1080p @ 60/50fps and 1080p @ 30/25fps
- 4.3mm P4 pinhole lens
- 0.007 lux low-light sensitivity
- Built-in OSD
- Real WDR, 3D-DNR, Defog, Sense-up 32x
- Cable OSD option and RS-485 support
- DC12V input
| Brand | IPX |
| Model | DQ-P3042DM-P4-4.3 |
| Camera Type | 2.2MP 30×30mm Miniature Pinhole Camera |
| Video Interface | 3G-SDI |
| Image Sensor | 1/2.8" Sony IMX327 Progressive Scan CMOS |
| DSP | Eyenix EN781F |
| Resolution | 1080p @ 60/50fps, 1080p @ 30/25fps |
| Lens | 4.3mm P4 Pinhole |
| Minimum Illumination | 0.007 Lux |
| OSD | Built-in |
| Day/Night | Digital |
| DSS | Sense-up 32x |
| DNR | 3D-DNR |
| WDR | Real WDR |
| Defog | Yes |
| IP Rating | - |
| Options | Cable OSD ($5.0), RS-485 |
| Input Voltage | DC12V |
| Size | 30 × 30mm |
