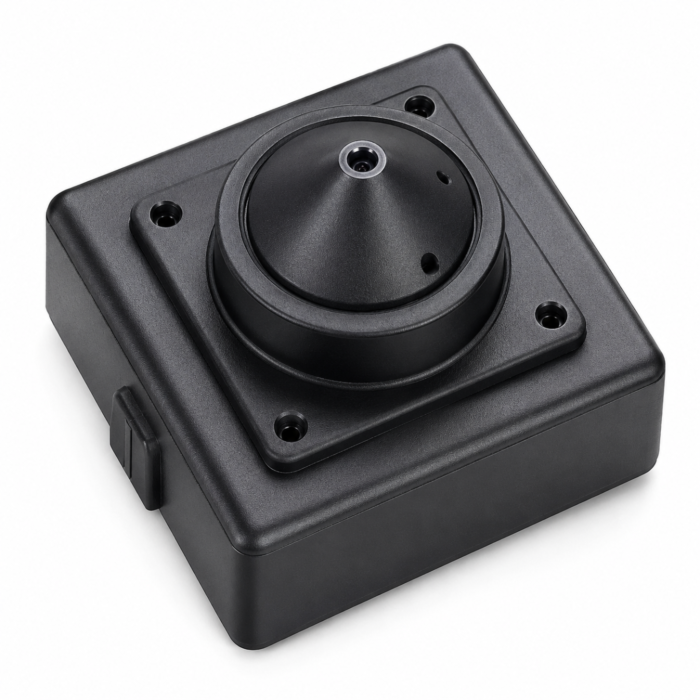

IPX DQ-P3042DM-P4-3.7 2.2MP 30×30mm Miniature 3G-SDI Pinhole Camera | Sony IMX327, 3.7mm Lens
IPX DQ-P3042DM-P4-3.7 2.2MP 30×30mm miniature 3G-SDI pinhole camera with Sony IMX327 sensor, 3.7mm P4 lens, 1080p60 output, built-in OSD, Real WDR, 3D-DNR, Defog, RS-485, and DC12V input.
The IPX DQ-P3042DM-P4-3.7 is a 2.2MP 30×30mm miniature 3G-SDI pinhole camera built for compact HD video applications where size, image quality, and low-latency output matter. Its 3.7mm P4 pinhole lens makes it a strong fit for embedded vision systems, robotics, UAV payloads, inspection equipment, and discreet surveillance installations.
With a 1/2.8" Sony IMX327 progressive scan CMOS sensor and Eyenix EN781F DSP, the IPX DQ-P3042DM-P4-3.7 outputs 1080p video at up to 60/50fps. Real WDR, 3D-DNR, Defog, Sense-up 32x, and digital day/night help maintain usable image detail in difficult lighting conditions.
Key Features:
- IPX 2.2MP 30×30mm miniature 3G-SDI pinhole camera
- 1/2.8" Sony IMX327 progressive scan CMOS sensor
- 1080p @ 60/50fps and 1080p @ 30/25fps
- 3.7mm P4 pinhole lens
- 0.007 lux low-light sensitivity
- Built-in OSD
- Real WDR, 3D-DNR, Defog, Sense-up 32x
- Cable OSD option and RS-485 support
- DC12V input
| Brand | IPX |
| Model | DQ-P3042DM-P4-3.7 |
| Camera Type | 2.2MP 30×30mm Miniature Pinhole Camera |
| Video Interface | 3G-SDI |
| Image Sensor | 1/2.8" Sony IMX327 Progressive Scan CMOS |
| DSP | Eyenix EN781F |
| Resolution | 1080p @ 60/50fps, 1080p @ 30/25fps |
| Lens | 3.7mm P4 Pinhole |
| Minimum Illumination | 0.007 Lux |
| OSD | Built-in |
| Day/Night | Digital |
| DSS | Sense-up 32x |
| DNR | 3D-DNR |
| WDR | Real WDR |
| Defog | Yes |
| IP Rating | - |
| Options | Cable OSD ($5.0), RS-485 |
| Input Voltage | DC12V |
| Size | 30 × 30mm |
