IPX DQ-F3042DM 2.2MP 30×30mm Miniature 3G-SDI Camera | Sony IMX327, 3.6mm Fixed Lens
IPX DQ-F3042DM 2.2MP 30×30mm miniature 3G-SDI camera with Sony IMX327 sensor, 1080p60 output, 3.6mm fixed lens, built-in OSD, Real WDR, 3D-DNR, Defog, RS-485, and DC12V input.

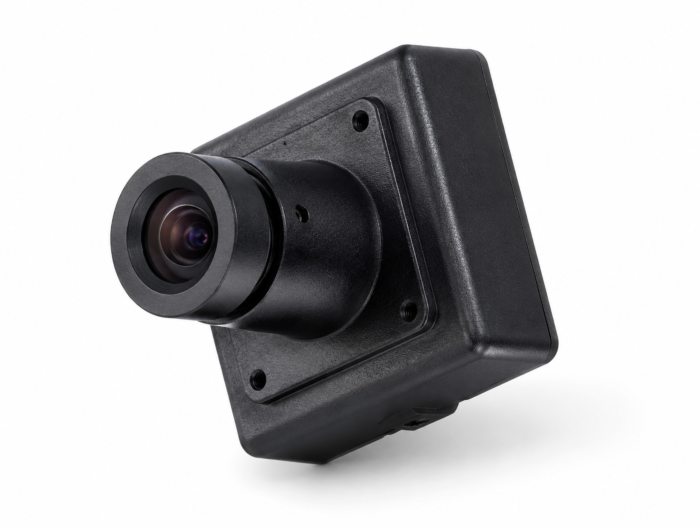

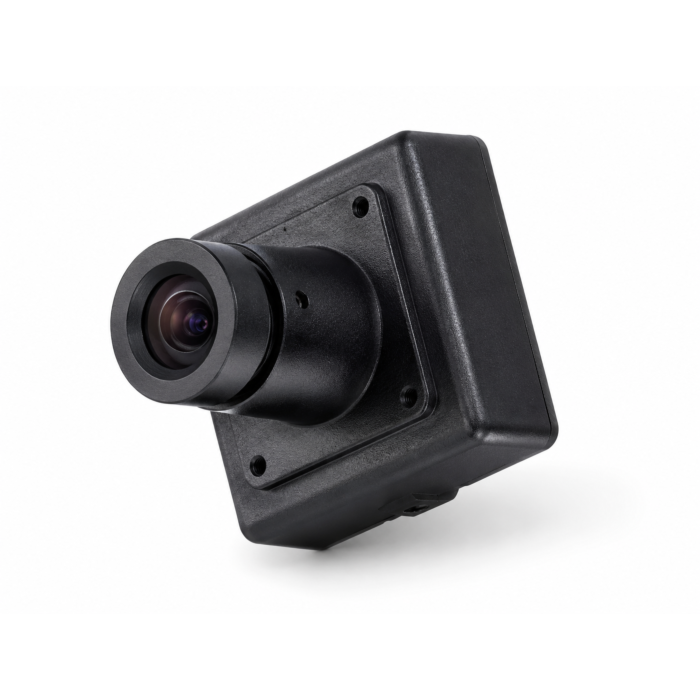

The IPX DQ-F3042DM is a compact 2.2MP 30×30mm miniature 3G-SDI camera designed for professional HD video systems where board-level size, low-latency output, and high image quality are required. It is ideal for robotics, UAV payloads, embedded vision, inspection, intelligent traffic, medical imaging, and surveillance applications.
Featuring a 1/2.8" Sony IMX327 progressive scan CMOS sensor and Eyenix EN781F DSP, the IPX DQ-F3042DM outputs 1080p video at up to 60/50fps over 3G-SDI. Built-in OSD, Real WDR, 3D-DNR, digital day/night, defog, and Sense-up 32x support reliable image capture across changing lighting environments.
Key Features:
- IPX 2.2MP 30×30mm miniature 3G-SDI camera
- 1/2.8" Sony IMX327 progressive scan CMOS sensor
- 1080p @ 60/50fps and 1080p @ 30/25fps
- Fixed 3.6mm lens
- 0.007 lux low-light sensitivity
- Built-in OSD
- Real WDR, 3D-DNR, Defog, Sense-up 32x
- Cable OSD option and RS-485 support
- DC12V input
| Brand | IPX |
| Model | DQ-F3042DM |
| Camera Type | 2.2MP 30×30mm Miniature Camera |
| Video Interface | 3G-SDI |
| Image Sensor | 1/2.8" Sony IMX327 Progressive Scan CMOS |
| DSP | Eyenix EN781F |
| Resolution | 1080p @ 60/50fps, 1080p @ 30/25fps |
| Lens | 3.6mm Fixed Lens |
| Minimum Illumination | 0.007 Lux |
| OSD | Built-in |
| Day/Night | Digital |
| DSS | Sense-up 32x |
| DNR | 3D-DNR |
| WDR | Real WDR |
| Defog | Yes |
| IP Rating | - |
| Options | Cable OSD ($5.0), RS-485 |
| Input Voltage | DC12V |
| Size | 30 × 30mm |
