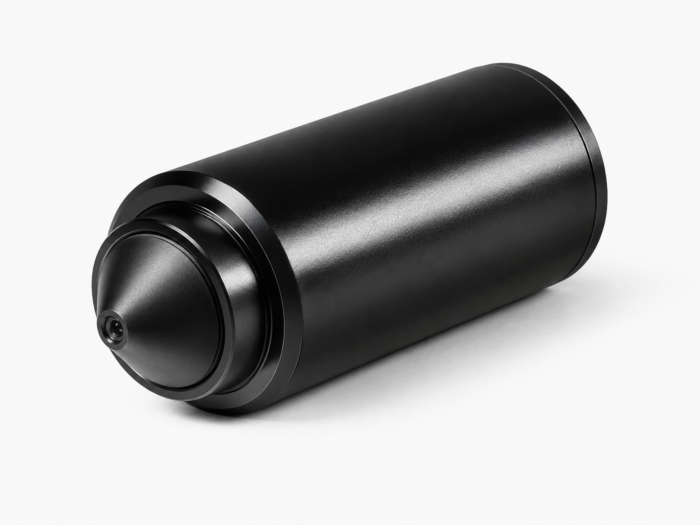

IPX DL-P4042DM-P4-4.3 2.2MP 19φ Mini Bullet 3G-SDI Pinhole Camera | Sony IMX327, 4.3mm Lens
IPX DL-P4042DM-P4-4.3 2.2MP mini bullet 3G-SDI pinhole camera with Sony IMX327 sensor, 4.3mm P4 lens, 1080p60 output, Real WDR, 3D-DNR, Defog, RS-485, and compact 19φ × 42mm design.
The IPX DL-P4042DM-P4-4.3 is a compact 2.2MP 19φ mini bullet 3G-SDI pinhole camera designed for professional HD video capture in compact and discreet installations. With a 4.3mm P4 pinhole lens, it is well suited for applications requiring a tighter field of view than wider pinhole lens options.
Powered by the 1/2.8" Sony IMX327 progressive scan CMOS sensor and Eyenix EN781F DSP, the IPX DL-P4042DM-P4-4.3 supports 1080p output at up to 60/50fps. Real WDR, 3D-DNR, digital day/night, defog, and Sense-up 32x help deliver dependable image quality in robotics, inspection, UAV, intelligent traffic, security, and embedded vision systems.
Key Features:
- IPX 2.2MP mini bullet 3G-SDI pinhole camera
- 1/2.8" Sony IMX327 progressive scan CMOS sensor
- 1080p @ 60/50fps and 1080p @ 30/25fps
- 4.3mm P4 pinhole lens
- 0.007 lux low-light sensitivity
- Real WDR, 3D-DNR, Defog, Sense-up 32x
- Cable OSD with RS-485 option
- DC12V input
- Compact 19φ × 42mm size
| Brand | IPX |
| Model | DL-P4042DM-P4-4.3 |
| Camera Type | 2.2MP 19φ Mini Bullet Pinhole Camera |
| Video Interface | 3G-SDI |
| Image Sensor | 1/2.8" Sony IMX327 Progressive Scan CMOS |
| DSP | Eyenix EN781F |
| Resolution | 1080p @ 60/50fps, 1080p @ 30/25fps |
| Lens | 4.3mm P4 Pinhole |
| Minimum Illumination | 0.007 Lux |
| OSD | Cable OSD |
| Day/Night | Digital |
| DSS | Sense-up 32x |
| DNR | 3D-DNR |
| WDR | Real WDR |
| Defog | Yes |
| IP Rating | - |
| Options | RS-485 |
| Input Voltage | DC12V |
| Size | 19φ × 42mm |
