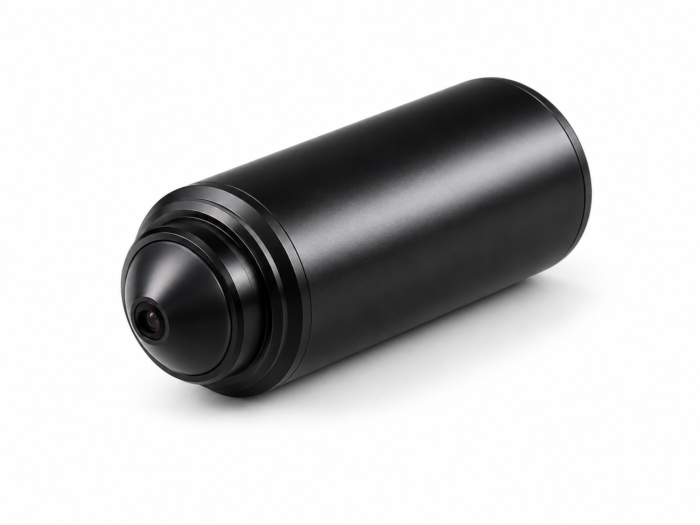

IPX DL-P4042DM-P4-3.7 2.2MP 19φ Mini Bullet 3G-SDI Pinhole Camera | Sony IMX307, 3.7mm Lens
SKU
DL-P4042DM-P4-3.7
Quick Overview
IPX DL-P4042DM-P4-3.7 2.2MP mini bullet 3G-SDI pinhole camera with Sony IMX307 sensor, 3.7mm P4 lens, 1080p60 video, Real WDR, 3D-DNR, Defog, RS-485, and DC12V input.
The IPX DL-P4042DM-P4-3.7 is a compact 2.2MP 19φ mini bullet 3G-SDI pinhole camera built for professional HD video applications requiring a small footprint, low-light performance, and reliable 3G-SDI output.
Featuring a 1/2.8" Sony IMX307 progressive scan CMOS sensor, Eyenix EN771T DSP, and 3.7mm P4 pinhole lens, the IPX DL-P4042DM-P4-3.7 supports 1080p video at up to 60/50fps. It is suitable for robotics, UAV systems, industrial inspection, medical visualization, intelligent traffic, and compact surveillance installations.
Key Features:
- IPX 2.2MP 19φ mini bullet pinhole camera
- 3G-SDI low-latency HD video output
- 1/2.8" Sony IMX307 progressive scan CMOS sensor
- 1080p @ 60/50fps and 1080p @ 30/25fps
- 3.7mm P4 pinhole lens
- 0.007 lux sensitivity
- Real WDR, 3D-DNR, Defog, Sense-up 32x
- Cable OSD and RS-485 option
- DC12V input
| Brand | IPX |
| Model | DL-P4042DM-P4-3.7 |
| Camera Type | 2.2MP 19φ Mini Bullet Pinhole Camera |
| Video Interface | 3G-SDI |
| Image Sensor | 1/2.8" Sony IMX307 Progressive Scan CMOS |
| DSP | Eyenix EN771T |
| Resolution | 1080p @ 60/50fps, 1080p @ 30/25fps |
| Lens | 3.7mm P4 Pinhole |
| Minimum Illumination | 0.007 Lux |
| OSD | Cable OSD |
| Day/Night | Digital |
| DSS | Sense-up 32x |
| DNR | 3D-DNR |
| WDR | Real WDR |
| Defog | Yes |
| IP Rating | - |
| Options | RS-485 |
| Input Voltage | DC12V |
| Size | 19φ × 42mm |
