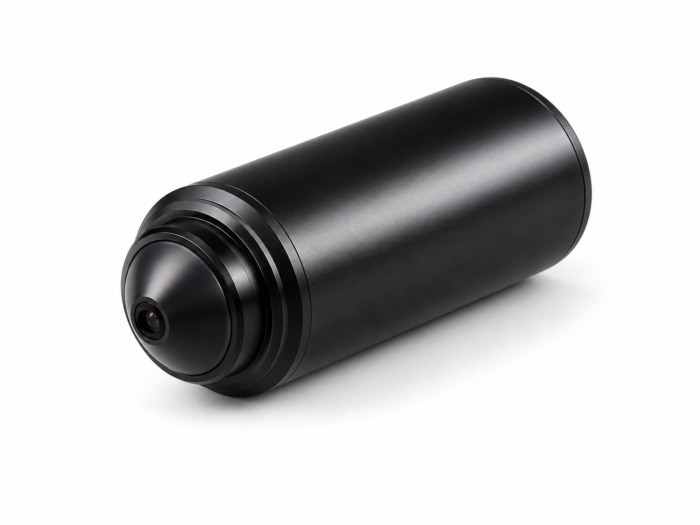

IPX DL-P4042DM-P4-2.8 2.2MP 19φ Mini Bullet 3G-SDI Pinhole Camera | Sony IMX307, 2.8mm Lens
SKU
DL-P4042DM-P4-2.8
Quick Overview
IPX DL-P4042DM-P4-2.8 2.2MP mini bullet 3G-SDI pinhole camera with Sony IMX307 sensor, 2.8mm P4 lens, 1080p60 output, Real WDR, 3D-DNR, Defog, RS-485, and DC12V input.
The IPX DL-P4042DM-P4-2.8 is a compact 2.2MP 19φ mini bullet 3G-SDI pinhole camera designed for discreet HD imaging in robotics, UAV, surveillance, inspection, intelligent traffic, and embedded video systems.
Built with a 1/2.8" Sony IMX307 progressive scan CMOS sensor and Eyenix EN771T DSP, the IPX DL-P4042DM-P4-2.8 delivers 1080p video at up to 60/50fps over 3G-SDI. The 2.8mm P4 pinhole lens provides a wider field of view for space-constrained installations where low-latency HD output and compact integration are essential.
Key Features:
- IPX 2.2MP 19φ mini bullet 3G-SDI pinhole camera
- 1/2.8" Sony IMX307 progressive scan CMOS sensor
- 1080p @ 60/50fps and 1080p @ 30/25fps
- 2.8mm P4 pinhole lens
- 0.007 lux low-light sensitivity
- Real WDR, 3D-DNR, Defog, Sense-up 32x
- Digital Day/Night imaging
- Cable OSD and RS-485 option
- DC12V input
| Brand | IPX |
| Model | DL-P4042DM-P4-2.8 |
| Camera Type | 2.2MP 19φ Mini Bullet Pinhole Camera |
| Video Interface | 3G-SDI |
| Image Sensor | 1/2.8" Sony IMX307 Progressive Scan CMOS |
| DSP | Eyenix EN771T |
| Resolution | 1080p @ 60/50fps, 1080p @ 30/25fps |
| Lens | 2.8mm P4 Pinhole |
| Minimum Illumination | 0.007 Lux |
| OSD | Cable OSD |
| Day/Night | Digital |
| DSS | Sense-up 32x |
| DNR | 3D-DNR |
| WDR | Real WDR |
| Defog | Yes |
| IP Rating | - |
| Options | RS-485 |
| Input Voltage | DC12V |
| Size | 19φ × 42mm |
