IPX DL-F4042DM-WX-LV 2.2MP 19φ IP67 Long Cover Mini Bullet 3G-SDI Camera | Sony IMX327
IPX DL-F4042DM-WX-LV 2.2MP IP67 long cover mini bullet 3G-SDI camera with Sony IMX327 sensor, 1080p60 output, 3.6mm lens, Real WDR, 3D-DNR, Defog, RS-485, and DC12V input.

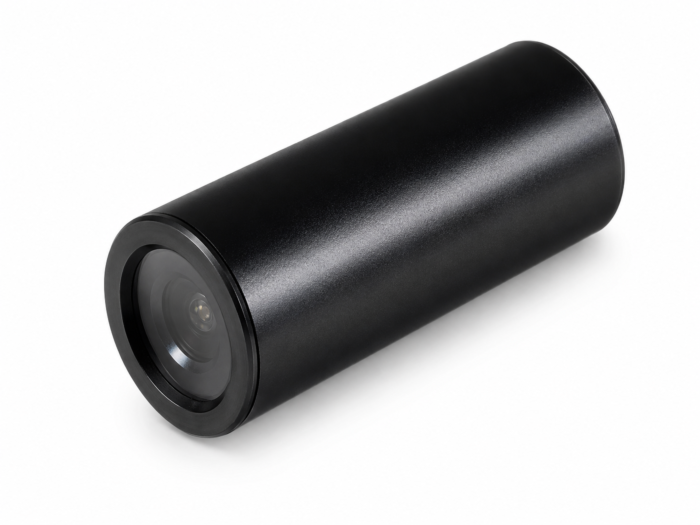

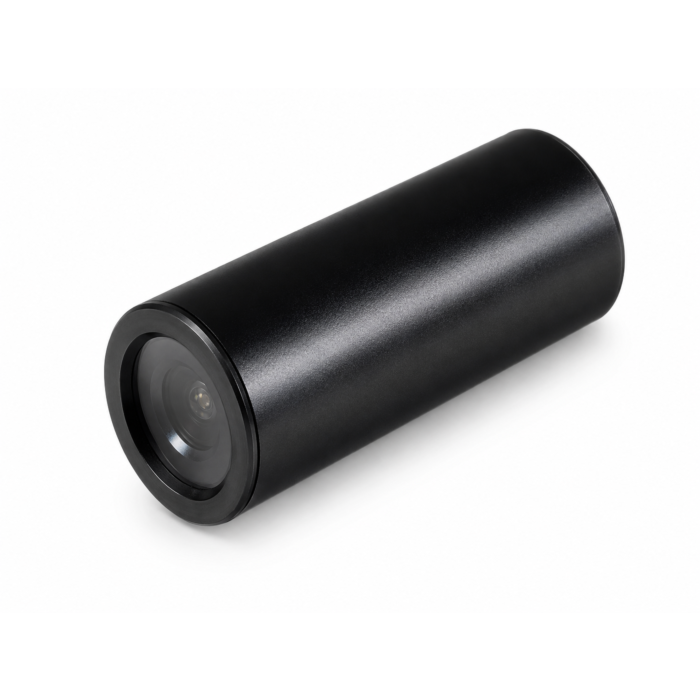

The IPX DL-F4042DM-WX-LV is a compact 2.2MP 19φ mini bullet 3G-SDI camera with IP67 protection and a long cover design for rugged video applications. It is well suited for surveillance, robotics, UAV payloads, machine vision inspection, transportation, and embedded industrial imaging systems.
Featuring the 1/2.8" Sony IMX327 progressive scan CMOS sensor and Eyenix EN781F DSP, the IPX DL-F4042DM-WX-LV outputs 1080p video at up to 60/50fps over 3G-SDI. The camera includes a 3.6mm fixed lens, 0.007 lux sensitivity, Real WDR, 3D-DNR, digital day/night, defog, and Sense-up 32x for improved visibility in difficult lighting conditions.
Key Features:
- IPX 2.2MP 19φ mini bullet 3G-SDI camera
- IP67-rated long cover design
- 1/2.8" Sony IMX327 progressive scan CMOS sensor
- 1080p @ 60/50fps and 1080p @ 30/25fps
- Fixed 3.6mm lens
- 0.007 lux low-light sensitivity
- Real WDR, 3D-DNR, Defog, Sense-up 32x
- Cable OSD with RS-485 option
- DC12V input
| Brand | IPX |
| Model | DL-F4042DM-WX-LV |
| Camera Type | 2.2MP 19φ Mini Bullet Camera |
| Video Interface | 3G-SDI |
| Image Sensor | 1/2.8" Sony IMX327 Progressive Scan CMOS |
| DSP | Eyenix EN781F |
| Resolution | 1080p @ 60/50fps, 1080p @ 30/25fps |
| Lens | Fixed 3.6mm |
| Minimum Illumination | 0.007 Lux |
| OSD | Cable OSD |
| Day/Night | Digital |
| DSS | Sense-up 32x |
| DNR | 3D-DNR |
| WDR | Real WDR |
| Defog | Yes |
| IP Rating | IP67 Long Cover |
| Options | RS-485 |
| Input Voltage | DC12V |
| Size | 19φ × 51mm |
