IPX DL-F4042DM 2.2MP 19φ Mini Bullet 3G-SDI Camera | Sony IMX327, 1080p60, 3.6mm Lens
Compact IPX 2.2MP 19φ mini bullet 3G-SDI camera with Sony IMX327 sensor, 1080p60 output, 3.6mm lens, Real WDR, 3D-DNR, Defog, RS-485, and DC12V input for surveillance, robotics, UAV, inspection, and embedded video systems.

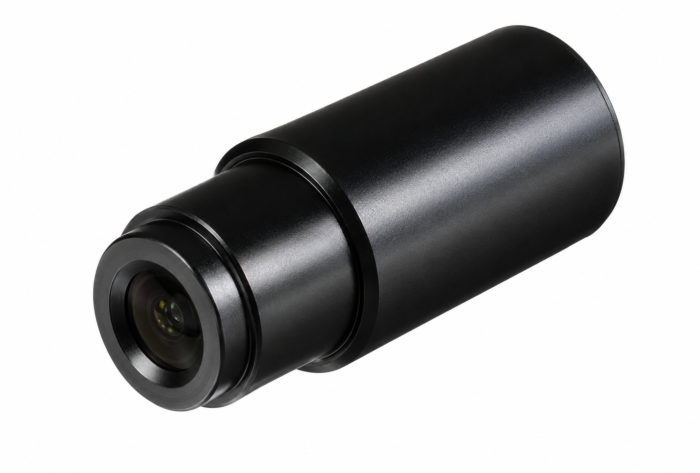

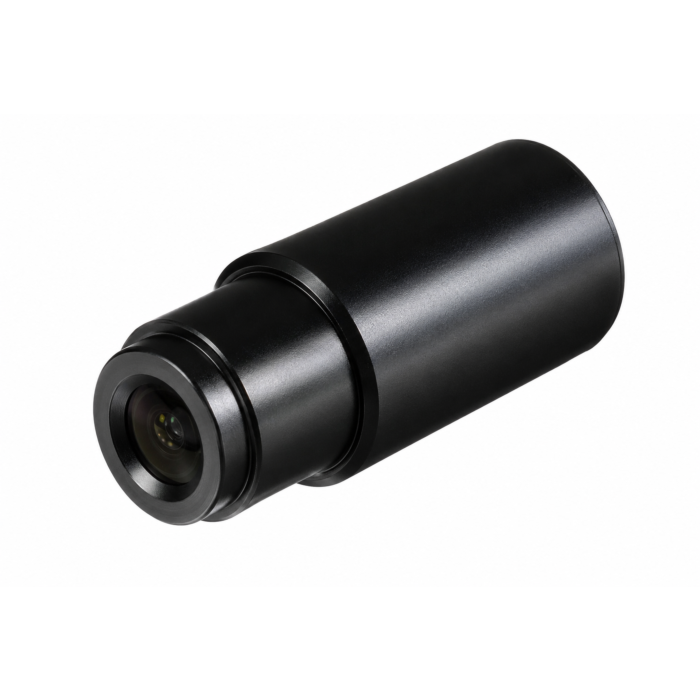

The IPX DL-F4042DM is a compact 2.2MP 19φ mini bullet 3G-SDI camera designed for professional video, embedded vision, robotics, UAV, inspection, surveillance, and intelligent traffic applications requiring low-latency HD video in a small cylindrical form factor.
Built around the 1/2.8" Sony IMX327 progressive scan CMOS sensor with Eyenix EN781F image processing, the IPX DL-F4042DM delivers crisp 1080p video at up to 60/50fps over 3G-SDI. Its fixed 3.6mm lens, 0.007 lux low-light sensitivity, Real WDR, 3D-DNR, digital day/night, defog, and Sense-up 32x support reliable imaging in demanding lighting environments.
Key Features:
- IPX 2.2MP 19φ mini bullet 3G-SDI camera
- 1/2.8" Sony IMX327 progressive scan CMOS sensor
- 1080p @ 60/50fps and 1080p @ 30/25fps output
- Fixed 3.6mm lens for compact HD imaging applications
- 0.007 lux low-light sensitivity
- Real WDR, 3D-DNR, Defog, Sense-up 32x
- Digital Day/Night performance
- RS-485 control option with cable OSD
- DC12V input for system integration
| Brand | IPX |
| Model | DL-F4042DM |
| Camera Type | 2.2MP 19φ Mini Bullet Camera |
| Video Interface | 3G-SDI |
| Image Sensor | 1/2.8" Sony IMX327 Progressive Scan CMOS |
| DSP | Eyenix EN781F |
| Resolution | 1080p @ 60/50fps, 1080p @ 30/25fps |
| Lens | Fixed 3.6mm |
| Minimum Illumination | 0.007 Lux |
| OSD | Cable OSD |
| Day/Night | Digital |
| DSS | Sense-up 32x |
| DNR | 3D-DNR |
| WDR | Real WDR |
| Defog | Yes |
| IP Rating | - |
| Options | RS-485 |
| Input Voltage | DC12V |
| Size | 19φ × 51mm |
