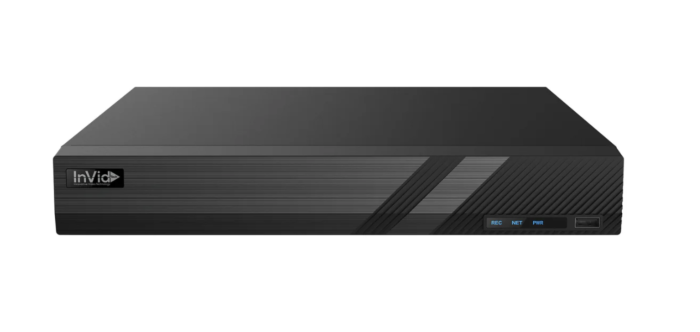

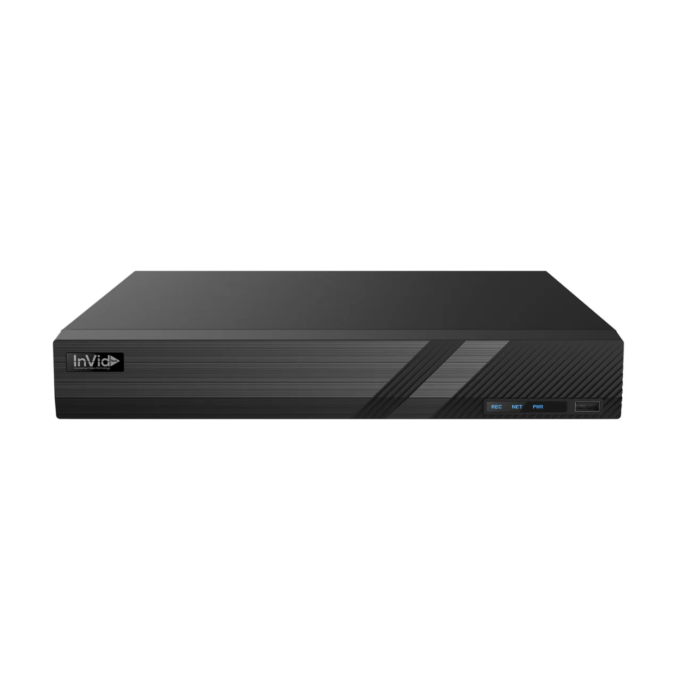

InVid Tech PD1B-4NH2: Lite 4 Ch + 2 Bonus IP Ch Universal Port Recorder
The InVid Tech PD1B-4NH2 Universal Port Recorder supports 4 analog channels and 2 bonus IP channels, providing a total of 6 channels for video surveillance. It is compatible with TVI, AHD, and CVI formats, offering resolutions of up to 5MP for analog channels and up to 5MP at 30fps for IP cameras. The recorder utilizes advanced video compression technologies, including H.264, H.265, and H.265+, ensuring optimal storage efficiency and high-quality playback. The system supports Smart Motion Detection (SMD) across all analog channels and provides Smart Analytic Support for human and vehicle detection. The recorder's ability to transmit audio over coax (AoC) simplifies installation by allowing video and audio to be carried via a single coaxial cable.
The PD1B4NH2 also delivers high-definition video output with simultaneous HDMI and VGA output options, supporting resolutions up to 1080p. It includes an integrated 4-channel simultaneous playback feature for easy video review. The recorder supports a large storage capacity of up to 18TB through its SATA interface and offers local and network backup solutions. It is equipped with free CMS and MAC client software for centralized management and remote access. Additionally, the InVid Tech PD1B-4NH2 is NDAA compliant, ensuring security and regulatory compliance for U.S. government use. This recorder is designed to meet the needs of high-performance, scalable surveillance installations while providing robust connectivity options and high-resolution video capture.
Features:
- 4 analog video channels + 2 bonus IP channels (up to 6 cameras)
- Supports TVI, AHD, CVI with resolutions up to 5MP
- Smart Motion Detection (SMD) for all analog channels
- Smart Analytic Support for human and vehicle detection
- Audio over Coax (AoC) for simplified installation
- H.264/H.265/H.265+ video compression for efficient storage
- Up to 18TB storage with SATA interface
- 4-channel simultaneous playback for easy video review
- HDMI/VGA output up to 1080p resolution
- Free CMS software and MAC client for centralized management
- NDAA compliant for U.S. government use
- Mobile device access via QR code connectivity
- Local and network backup options
- Compact design, easy to install
Applications:
- Commercial surveillance systems
- Residential security setups
- Remote surveillance and monitoring
- Government and NDAA-compliant installations
- Industrial and warehouse security
- Retail and business premises surveillance
- Mobile surveillance for on-the-go security access
- Large-scale video management with centralized control
- High-definition video capture for security and monitoring
| System | PD1B-4NH2 |
| OS | Embedded Linux |
| Analog Video Input | BNC × 4, BNC interface (1.0Vp-p; 75Ω), TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live) |
| IP Video Input | 2CH (up to 6CH), Up to 5MP@30fps |
| Total Input | 6CH |
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768, VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768, BNC × 1 : CVBS (used as the main or spot output) |
| Compression | H.264/H.265/H.265+ |
| Multi-screen Display | 1 /4/6/9 |
| Audio Input | RCA × 4 |
| Audio Output | RCA × 1 (linear, 600Ω) |
| Two-way Audio | Take up channel one audio input |
| Compression (Audio) | G.711(U/A) |
| Resolution (Recording) | 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1 |
| Frame Rate (Analog Channel) | 5MP Lite@10fps (PAL / NTSC); 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC), 1080P Lite/720P/WD1@25fps (PAL) / 30fps (NTSC) |
| Frame Rate (IP Channel) | 25fps (PAL) / 30fps (NTSC) |
| Bit Rate | 32Kbps ~ 4Mbps |
| Mode (Recording) | Manual, timer, motion, smart event |
| Playback | 4CH |
| Search | Time slice / time / event / tag search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Function (Playback) | Play, pause, FF, FB, digital zoom, etc. |
| Alarm Mode | Manual, motion, exception, smart event |
| Alarm Input | 4CH |
| Alarm Output | 1CH |
| AI Function (Smart Motion Detection) | 4CH (Human/Vehicle Detection) |
| AI Function (Perimeter Protection) | 1CH (Human/Vehicle Detection) |
| Network Interface | RJ 45 100Mbps × 1 |
| Protocol | TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, Websocket, SNMP, IGMP |
| Incoming Bandwidth | 16Mbps (max. 32Mbps) |
| Outgoing Bandwidth | 40Mbps |
| Client Connection | Max. 5 users access (16 mainstream or 49 sub stream, whichever is maxed first) |
| Mobile Device OS | iOS, Android |
| Storage | SATA × 1, up to 18TB |
| Local Backup | USB, USB to HDD (Max 1TB) |
| Network Backup | Yes |
| RS 485 Port | Yes (half-duplex), connect to PTZ |
| USB | USB 2.0 × 2 |
| Remote Controller | Included |
| Power Supply | DC12V/1.5A |
| Power Consumption | ≤ 10W (without HDD) |
| Dimensions (W×D×H) | 11.8 x 9.8 x 1.7 in (300 × 249 × 45mm) |
| Working Environment | 14°F ~ 122°F (-10~50°C), 10%~90% (humidity) |
| Certificate | CE, FCC |
| Environmental Protection | Directive EU RoHS, WEEE, REACH |
