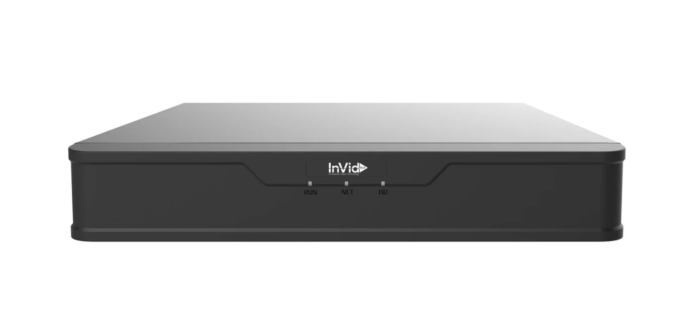

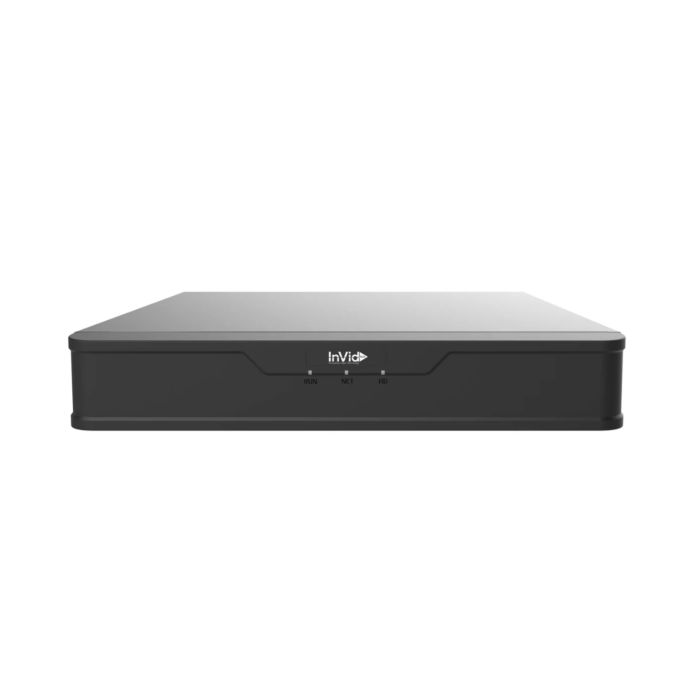

InVid Tech VIS-D1B-8: 8 Ch + 4 Bonus IP Ch Universal Port Recorder
The InVid Tech VIS-D1B-8 is an advanced 8 Channel Universal Port DVR, supporting TVI, AHD, CVI, Analog, and IP cameras with 4 additional IP channels, enabling up to 12 cameras in total. It records 5MP TVI/AHD at 12fps, 4MP at 15fps, and 1080P at 30fps, ensuring high-definition clarity. The H.265/H.264 compression optimizes storage and bandwidth, while the 32Mbps incoming and 64Mbps outgoing bandwidth ensures seamless video streaming. Supporting simultaneous HDMI and VGA output up to 1080p, it allows flexible display configurations, and 8-channel synchronous playback enhances video review efficiency.
The VISD1B8 recorders NDAA-compliant system provides one SATA interface supporting up to 8TB storage for extended recording. With 1 RJ45 10M/100M Ethernet port, it supports multiple network protocols like TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DDNS, and SMTP. The G.711U audio compression, 1-channel RCA input and output, and 8kHz 16-bit sampling rate ensure clear audio capture. The unit supports motion detection, alert alarms, and system health monitoring, with remote access via iOS, Android, and CMS software. It operates in temperatures from 14°F to 131°F, making it reliable in diverse environments.
Features:
- 8 Channel Universal Port DVR supporting TVI/AHD/CVI/Analog/IP
- 4 Bonus IP Channels, allowing up to 12 cameras
- 5MP recording at 12fps, 4MP at 15fps, 1080P at 30fps
- H.265/H.264 video compression for optimized storage and bandwidth
- HDMI/VGA output up to 1080p, supporting simultaneous playback
- 1 SATA bay, supporting up to 8TB storage
- G.711U audio compression, 8kHz 16-bit audio sampling
- Multiple network protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DDNS, SMTP
- Remote access via free iOS & Android apps and CMS software
- Motion detection, alert alarms, and system health monitoring
- Works in temperatures from 14°F to 131°F
- NDAA Compliant, ensuring suitability for government applications
Applications:
- Retail & Business Security
- Home Security Systems
- Industrial & Warehouse Monitoring
- Government & Compliance-Based Surveillance
- Multi-Site Surveillance
| Model | VIS-D1B-8 |
|---|---|
| Video/Audio Input | |
| Analog Video Input | 8-ch, BNC |
| IP Video Input | 4-ch (only IP up to 8ch), each channel up to 4MP |
| Supported Analog Camera Types | AHD: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps TVI: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps CVI: 1080P@30fps, 720P@30fps CVBS: Supported |
| Audio Input | 1-ch, RCA |
| Audio Compression | G.711U |
| Video/Audio Output | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | HD: 4-ch, SD: 8-ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/16 |
| Two-way Audio | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 32Mbps (Up to 40Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser Compatibility | IE 10/11, Firefox (52+), Chrome (45+), Edge (79+) |
| Encoding | |
| Recording Resolution | 5MP Lite/4MP Lite/1080P/1080P Lite/720P/CIF |
| Recording Frame Rate | Main Stream: 5MP Lite@6fps, 4MP Lite@8fps, 1080P Lite@12fps, 720P@12fps Sub Stream: D1@6fps, D1@8fps, D1@12fps |
| Audio Sample Rate | 8KHz, 16-bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding | |
| Decoding Capability | Analog: 4 x 5MP Lite@6fps, 4 x 4MP Lite@8fps, 4 x 1080P Lite@12fps IP: 1 x 4MP@30fps, 2 x 1080P@30fps |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB per HDD (Varies with temperature) |
| General Alarm | |
| General Alarm | Motion Detection |
| Alert Alarm | IP Conflict, Network Disconnection, Disk Offline, Disk Abnormal, Illegal Access, Low HDD Space, HDD Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | 2 x USB 2.0 (Rear Panel) |
| Serial Interface | 1 x RS485 |
| General | |
| Power Supply | 12V DC, ≤ 8W (without HDD) |
| Working Environment | 14°F ~ 131°F (-10°C ~ 55°C), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 10.2” × 8.9” × 1.8” (260mm × 226mm × 47mm) |
| Weight (Without HDD) | ≤ 2.42lb (1.1 Kg) |
| Certification | |
| Certification | UL, CE, FCC, RoHS, WEEE |
