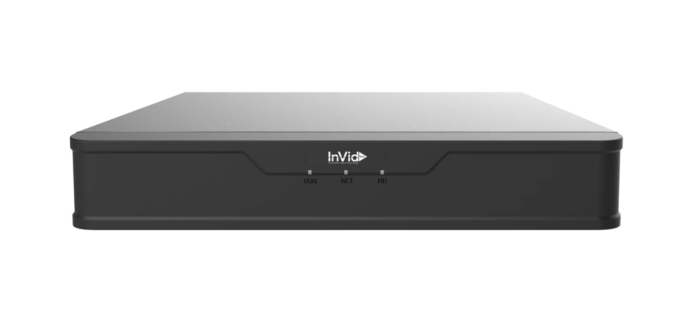

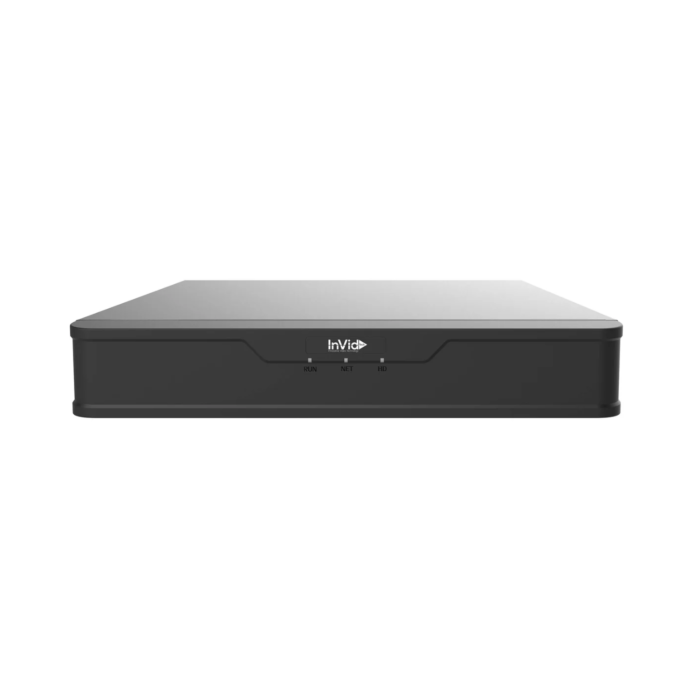

InVid Tech VIS-D1B-16: 16 Ch + 8 Bonus IP Ch Universal Port Recorder
The InVid Tech VIS-D1B-16 (VISD1B16) is a 16-channel universal port recorder supporting TVI, AHD, CVI, Analog, and IP video formats, offering 8 bonus IP channels for a total of 24 camera connections. It records at up to 5MP (AHD/TVI) at 12fps, 4MP at 15fps, and 1080p at 30fps, while supporting 8MP IP cameras. The unit utilizes H.265/H.264 video compression, significantly optimizing bandwidth and storage. It delivers simultaneous HDMI and VGA output with resolutions up to 1080p, along with 16-channel synchronous playback. The system's incoming bandwidth is 40Mbps (56Mbps max after analog conversion), and outgoing bandwidth reaches 64Mbps, ensuring smooth multi-camera streaming and recording.
Designed for remote surveillance, the recorder supports true P2P connectivity with QR code access, allowing instant mobile and remote viewing via free iOS, Android, and Mac software. It features motion detection, video loss, and security alerts, alongside 1 RCA audio input/output with G.711U compression for synchronized audio monitoring. Storage is expandable up to 8TB via a single SATA interface. Built with NDAA compliance, the unit is UL, CE, FCC, RoHS, and WEEE certified, ensuring reliability and regulatory adherence. Connectivity includes dual USB 2.0, RJ45 10/100M Ethernet, and RS485 serial communication. With an operating range of 14°F to 131°F (≤90% RH non-condensing) and a compact 10.2” x 8.9” x 1.8” chassis, this recorder is ideal for scalable surveillance deployments.
Features:
- 16-channel universal port recorder (TVI/AHD/CVI/Analog/IP)
- 8 bonus IP channels, supporting up to 24 cameras total
- Supports 5MP (12fps), 4MP (15fps), 1080p (30fps) resolution
- H.265/H.264 video compression for enhanced storage efficiency
- 40Mbps incoming, 64Mbps outgoing bandwidth for high-speed data transmission
- HDMI & VGA outputs, max resolution 1920x1080 @ 60Hz
- 16-channel synchronous playback with smooth multi-camera viewing
- 1 SATA bay, expandable up to 8TB storage
- P2P remote access with QR code scanning
- Free CMS, iOS & Android apps, Mac client software
- Motion detection, network loss, storage failure alerts
- 1 RCA audio input/output, G.711U compression
- Dual USB 2.0, RJ45 10/100M Ethernet, RS485 serial interface
- Compact design (10.2” x 8.9” x 1.8”), operating in 14°F to 131°F
- NDAA compliant, UL, CE, FCC, RoHS, WEEE certified
Applications:
- Enterprise & Commercial Security
- Retail & Hospitality
- Education & Campuses
- Warehouses & Industrial Facilities
- Residential & Apartment Complexes
- Healthcare & Clinics
- Government & NDAA-Compliant Installations
- Banking & Financial Institutions
| Model | VIS-D1B-16 | |
|---|---|---|
| Video/Audio Input | ||
| Analog Video Input | 16-ch, BNC | |
| IP Video Input | 8-ch (up to 16ch when canceling BNC ports), each channel up to 8MP | |
| Supported Analog Camera Types | AHD: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps TVI: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps CVI: 1080P@30fps, 720P@30fps CVBS: Supported | |
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | HD: 8-ch, SD: 16-ch | |
| Live View Display | HDMI/VGA: 1/4/6/8/9/16/25 | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 40Mbps (up to 56Mbps after all analog camera conversion) | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Supported Browsers | IE10/11, Firefox 52+, Chrome 45+, Edge 79+ | |
| Recording & Playback | ||
| Recording Resolution | 5MP Lite, 4MP Lite, 1080P, 1080P Lite, 720P, D1, CIF | |
| Recording Frame Rate | Main Stream: 5MP Lite@6fps, 4MP Lite@8fps, 1080P Lite@12fps, 720P@12fps Sub Stream: D1@6fps, D1@8fps, D1@12fps | |
| Audio Sample Rate | 8KHz, 16-bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Playback Capability | Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 | |
| Storage & Hardware | ||
| SATA | 1 SATA interface | |
| HDD Capacity | Up to 8TB per HDD | |
| Alarms & Notifications | ||
| General Alarms | Motion detection | |
| Alert Alarms | IP conflict, network disconnected, disk offline, disk abnormal, illegal access, low disk space, disk full, recording/snapshot abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet interface | |
| USB Interface | 2 x USB 2.0 (rear panel) | |
| Serial Interface | 1 x RS485 | |
| General Specifications | ||
| Power Supply | 12V DC, ≤ 10W (without HDD) | |
| Operating Environment | 14°F ~ 131°F (-10°C ~ 55°C), ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 10.2” × 8.9” × 1.8” (260mm × 226mm × 47mm) | |
| Weight (without HDD) | ≤ 2.42lb (1.1 Kg) | |
| Certifications | UL (A6082, E496771), CE, FCC, RoHS, WEEE | |
