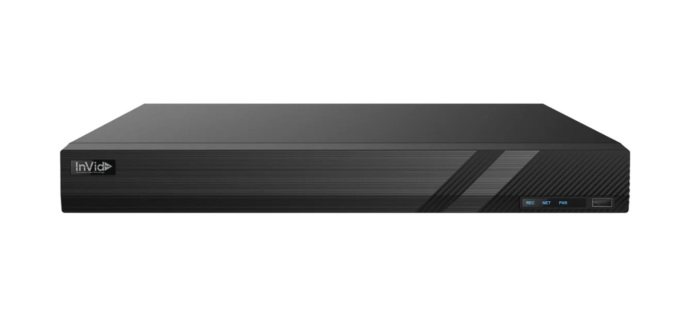

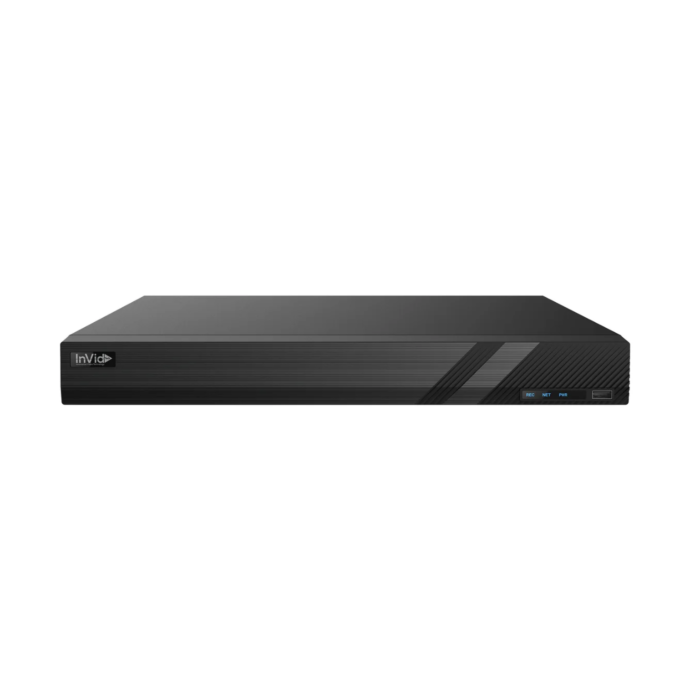

Invid Tech PD1B-8NH2: Lite 8 Ch + 4 Bonus IP Ch Universal Port Recorder
The InVid Tech PD1B-8NH2 is a robust Universal Port Recorder with powerful support for up to 12 channels, combining 8 analog BNC inputs and 4 bonus IP channels. It offers exceptional video resolution support, with analog channels capable of handling TVI/AHD/CVI signals up to 5MP, 4MP, and 1080p, with frame rates of up to 30fps for NTSC and 25fps for PAL. The device also supports IP video input with resolutions of up to 5MP at 30fps. H.264/H.265/H.265+ compression algorithms ensure efficient video storage, offering bitrates between 32Kbps and 4Mbps. This enables optimized recording and playback capabilities while maintaining high-quality footage. The recorder also supports simultaneous 8-channel playback with time slice, time, event, and tag search for quick retrieval of specific video clips.
For enhanced surveillance functionality, the PD1B8NH2 integrates smart AI features, such as Smart Motion Detection (SMD) and AI-powered human/vehicle detection on 8 analog channels and 1 IP channel. It is equipped with HDMI and VGA outputs, supporting up to 1080p resolution, ensuring flexibility in connecting to a variety of display options. The recorder also features up to 18TB of storage capacity via its SATA and E-SATA interfaces, allowing for extensive video data storage. The device's network capabilities include 100Mbps Ethernet, supporting multiple protocols such as TCP/IP, PPPoE, and DHCP, while allowing up to 5 remote users to connect simultaneously. Compliance with NDAA, CE, and FCC standards ensures a secure and environmentally friendly design.
Features:
- 8 Analog + 4 Bonus IP Channels: Supports up to 12 channels (8 analog, 4 IP) with resolutions up to 5MP.
- Smart Motion Detection (SMD): AI-based motion detection for improved security.
- AI Human/Vehicle Detection: Available on 8 analog channels and 1 IP channel for advanced event monitoring.
- H.264/H.265/H.265+ Video Compression: Efficient storage and high-quality video playback.
- Simultaneous Playback: 8-channel playback with time slice, time, event, and tag search.
- High-Resolution Video: Supports up to 5MP on analog and IP channels at up to 30fps.
- Network Connectivity: 100Mbps Ethernet with support for multiple protocols (TCP/IP, DHCP, FTP, etc.).
- Multiple Display Options: HDMI and VGA outputs supporting up to 1080p.
- 18TB Storage Capacity: Supports SATA and E-SATA for large-scale video storage.
- Dual-Way Audio: RCA inputs and outputs with G.711 audio compression.
- Up to 5 Remote Users: Multiple concurrent connections for remote monitoring.
- Compliance: NDAA-compliant, CE, and FCC certified.
- Compact Design: Easy integration into various surveillance setups with dimensions of 300 x 249 x 45mm.
Applications:
- Business Security
- Home Surveillance
- Large-scale Video Monitoring Systems
| System | PD1B-8NH2 |
| OS | Embedded Linux |
| Analog Video Input | BNC × 8, BNC interface (1.0Vp-p; 75Ω), TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live) |
| IP Video Input | 4CH (up to 12CH), Up to 5MP@30fps |
| Total Input | 12CH |
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768, VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768, BNC × 1 : CVBS (used as the main or spot output) |
| Compression | H.264/H.265/H.265+ |
| Multi-screen Display | 1 / 4 / 6 / 8 / 9 / 13 / 16 |
| Audio Input | RCA × 8 |
| Audio Output | RCA × 1 (linear, 600Ω) |
| Two-way Audio | Take up channel one audio input |
| Audio Compression | G.711(U/A) |
| Resolution | 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1 |
| Frame Rate | Analog Channel: 5MP Lite@10fps (PAL/NTSC), 4MP Lite/1080P@12fps (PAL)/15fps (NTSC), 1080P Lite/720P/WD1@25fps (PAL)/30fps (NTSC), IP Channel: 25fps (PAL)/30fps (NTSC) |
| Bit Rate | 32Kbps ~ 4Mbps |
| Record Mode | Manual, timer, motion, smart event |
| Playback | 8CH |
| Search | Time slice/time/event/tag search |
| Smart Search | Highlight colors to display camera record in a certain period of time, different colors represent different record events |
| Function | Play, pause, FF, FB, digital zoom, etc. |
| Alarm Mode | Manual, motion, exception, smart event |
| Alarm Input | 8CH |
| Alarm Output | 2CH |
| AI Function | AI Smart Motion Detection: 8CH (Human/Vehicle Detection), AI Perimeter Protection: 1CH (Human/Vehicle Detection) |
| Network Interface | RJ45 100Mbps × 1 |
| Protocols | TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, Websocket, SNMP, IGMP |
| Incoming Bandwidth | 32Mbps (max. 60Mbps) |
| Outgoing Bandwidth | 60Mbps |
| Client Connection | Max. 5 users access (16 mainstream or 49 sub-stream, whichever is maxed first) |
| Mobile Device OS | iOS, Android |
| HDD Storage | SATA × 1, up to 18TB; E-SATA × 1 (Max single drive, 18TB, Recording Only) |
| Backup | Local Backup: USB, USB to HDD (Max 1TB), Network Backup: Yes |
| RS485 | Yes (half-duplex), connect to PTZ |
| USB | USB 2.0 × 2 |
| Remote Controller | Included |
| Power Supply | DC12V/2A |
| Power Consumption | ≤ 10W (without HDD) |
| Dimensions (W×DxH) | 11.8 x 9.8 x 1.7 in (300 × 249 × 45mm) |
| Working Environment | 14°F ~ 122°F (-10~50°C), 10%~90% humidity |
| Certificates | CE, FCC |
| Environmental Protection | Directive EU RoHS, WEEE, REACH |
