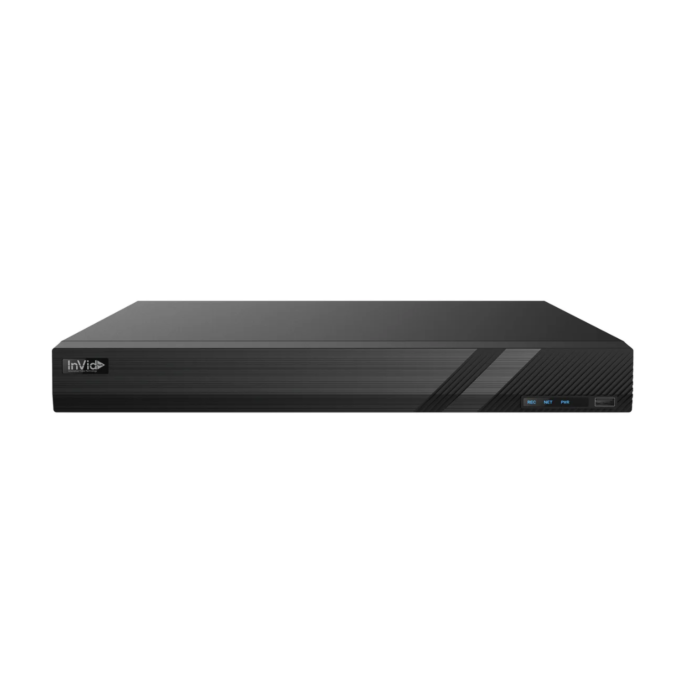

Invid Tech PD1B-16NH2: Lite 16 Ch + 8 Bonus IP Ch Universal Port Recorder
The InVid Tech PD1B-16NH2 is a powerful 16-channel universal port recorder designed to support both analog and IP cameras, with a total of 24 channels available. It features up to 8MP Lite resolution on analog channels (TVI, AHD, CVI, and analog formats) and up to 5MP on IP channels. The recorder supports frame rates of up to 25fps on analog channels (at 1080p resolution) and 30fps on IP channels, ensuring smooth video playback. With H.264/H.265/H.265+ video compression, it optimizes storage without compromising on video quality. The system supports audio over coax (AoC), allowing for simultaneous video and audio transmission over a single coaxial cable.
In terms of advanced features, the PD1B-16NH2 offers Smart Motion Detection on all 16 analog channels, allowing for accurate motion-triggered recording. Smart Analytic Support is available for 1 channel, providing AI-driven detection and alerting capabilities. True P2P connectivity enables easy remote access through QR code scanning, while mobile access is available through free iOS and Android apps. The system is compatible with 16-channel simultaneous playback, and users can leverage a range of search options, such as analytical search and thumbnail search, for quick video retrieval. With 16 channels of alarm input, this recorder is ideal for high-performance surveillance in both residential and commercial settings.
Features:
- 16 Channel Universal Port DVR (supports TVI, AHD, CVI, Analog, and IP cameras)
- Up to 8MP Lite resolution on analog channels, up to 5MP for IP channels
- H.264/H.265/H.265+ video compression
- Smart Motion Detection (SMD) on all 16 analog channels
- Smart Analytic Support for 1 channel (Human/Vehicle Detection)
- True P2P connectivity with QR code for remote access
- Simultaneous HDMI/VGA output at 1080p resolution
- Audio over coax (AoC) for simultaneous video and audio transmission
- 16-channel simultaneous playback with multiple search options
- Supports up to 24 cameras (16 analog + 8 IP)
- Free mobile apps for iOS & Android, Central Management Software for PC/MAC
- AI-driven features for enhanced video analytics
- 16-channel alarm input and output support for comprehensive security systems
- RS-485 support for PTZ camera control
Applications:
- Residential Surveillance Systems
- Commercial Security Installations
- Retail and Warehouse Monitoring
- Large-Scale CCTV Systems
- IP & Analog Camera Integration
- Remote Access Surveillance for businesses
- High-Performance Video Recording for both home and office security
| Model | PD1B-16NH2 |
|---|---|
| System | |
| OS | Embedded Linux |
| Video | |
| Analog Video Input | BNC × 16 (BNC interface: 1.0Vp-p; 75Ω) TVI/AHD/CVI: 4K@15fps/5MP@20fps; 4MP/1080P/720P@30fps; Supports CVBS |
| IP Video Input | 8CH (up to 16ch), Up to 5MP@30fps |
| Total IP Input | 24CH |
| Output | |
| HDMI Output | 1 x 1920 x 1080 / 1280 x 1024 / 1024 x 768 |
| VGA Output | 1 x 1920 x 1080 / 1280 x 1024 / 1024 x 768 |
| BNC Output | 1 x CVBS (used as main or spot output) |
| Compression | H.264/H.265/H.265+ |
| Multi-screen Display | 1/4/6/8/9/13/16/25 |
| Audio | |
| Input | RCA × 8 |
| Output | RCA × 1 (linear, 600Ω) |
| Two-way Audio | Take up channel one audio input |
| Compression | G.711(U/A) |
| Record | |
| Resolution | 8MP Lite / 5MP Lite / 4MP Lite / 1080P / 1080P Lite / 720P / WD1 |
| Frame Rate (Analog Channels) | 8MP Lite: 8fps, 5MP Lite: 12fps (PAL/NTSC), 4MP Lite/1080P: 12fps (PAL) / 15fps (NTSC), 1080P Lite/720P/WD1/D1: 25fps (PAL) / 30fps (NTSC) |
| Frame Rate (IP Channels) | 25fps (PAL) / 30fps (NTSC) |
| Bit Rate | 32Kbps ~ 5Mbps |
| Mode | Manual, timer, motion, smart event |
| Playback | |
| Playback Channels | 16CH |
| Search | Time slice / time / event / tag search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Playback Functions | Play, pause, FF, FB, digital zoom, etc. |
| Alarm | |
| Alarm Mode | Manual, motion, exception, smart event |
| Alarm Input | 16CH |
| Alarm Output | 4CH |
| AI Function | |
| Smart Motion Detection | 16CH (Human & Vehicle Detection) |
| Perimeter Protection | 1CH (Human & Vehicle Detection) |
| Network | |
| Interface | RJ45 1000Mbps × 1 |
| Protocol | TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, Websocket, SNMP, IGMP |
| Incoming Bandwidth | 32Mbps (max. 64Mbps) |
| Outgoing Bandwidth | 96Mbps |
| Client Connection | Max. 10 users access |
| Mobile Device | iOS, Android |
| Storage | |
| HDD | SATA×2, up to 18TB per HDD; E-SATA×1 (One 18TB max, Record Only) |
| Backup | |
| Local Backup | USB, USB to HDD (Max 1TB) |
| Network Backup | Yes |
| Port | |
| RS485 | Yes (half-duplex), connect to PTZ |
| USB | USB 2.0 ×1; USB3.0 ×1 |
| Remote Controller | Included |
| Others | |
| Power Supply | DC12V/4A |
| Consumption | ≤ 15W (without HDD) |
| Dimensions | 14.9 x 10.5 x 1.7 In (380 x 268 x 45 mm) |
| Working Environment | 14°F ~ 122°F (-10~50°C), 10%~90% (humidity) |
| Certificate | CE, FCC |
| Environmental Protection | Directive EU RoHS, WEEE, REACH |
