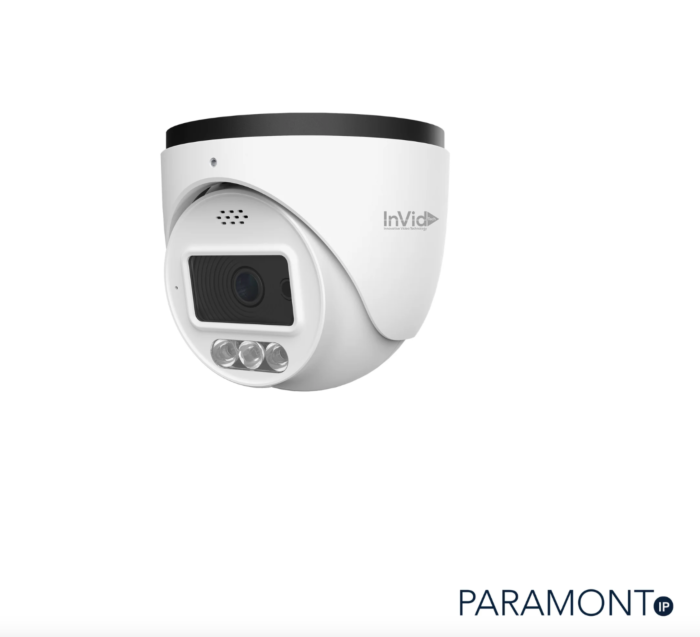

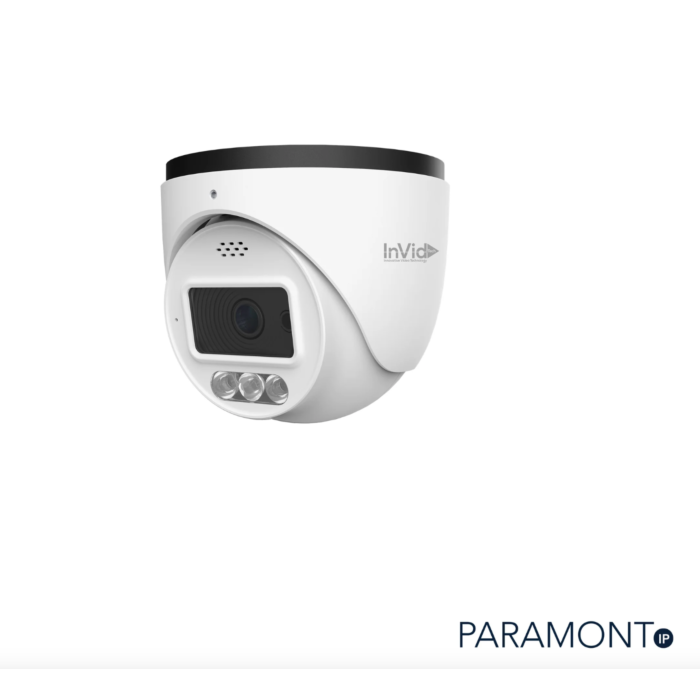

InVid Tech PAR-P8TXIR28NH-AIWLT 8MP AI IP Turret Camera, 2.8 mm, IR/White Light, IP66, 12VDC/PoE
This PAR-P8TXIR28NH-AIWLT (PARP8TXIR28NHAIWLT) 8 megapixel IP turret camera delivers crisp 4K UHD video at up to 30 fps with a 2.8 mm wide-angle fixed lens for excellent area coverage in commercial and residential installations. True WDR (120 dB), 2D/3D noise reduction, and advanced image controls help maintain usable detail in complex lighting, while true day/night operation, IR up to 131 ft, and AI-triggered white light up to 98 ft support round-the-clock color imaging and identification.
Built-in AI analytics provide human and vehicle classification for line crossing and intrusion detection, reducing false alarms from motion-only systems. When threats are detected, the camera can trigger red/blue flashing deterrent lights, a built-in speaker/siren, and push notifications via compatible software and mobile apps, while on-board microSD storage (up to 256 GB), 12 VDC/PoE power, ONVIF support, and browser compatibility (Chrome/Edge/Firefox/Safari) simplify integration into modern IP surveillance systems.
Features:
- 8 megapixel 4K (3840 × 2160) resolution for detailed live view and recording.
- 2.8 mm F1.6 fixed lens with 109° horizontal field of view for wide coverage.
- True AI human and vehicle classification for line crossing and intrusion detection.
- AI-triggered red/blue flashing deterrent light and built-in siren for active response.
- IR illumination up to 131 ft and AI-triggered white light up to 98 ft for color-at-night imaging.
- True WDR 120 dB, 2D/3D DNR, BLC, HLC, and defog for high-contrast or low-light scenes.
- H.265+/H.265/H.264+/H.264/MJPEG multi-stream encoding with up to three streams.
- 30 fps at up to 8 MP main stream (50/60 Hz selectable).
- Built-in microphone and speaker (≥90 dB, 1 W, 100–4 kHz) for two-way audio.
- 1 × audio input, 1 × audio output, 1 × alarm input, 1 × alarm output for system integration.
- MicroSD card slot supporting up to 256 GB edge storage.
- IP66 weatherproof housing for outdoor use in -22 °F to 140 °F, up to 95% RH.
- 12 VDC or IEEE 802.3af PoE power, < 12.5 W consumption.
- ONVIF Profile T interface, multi-browser support (Chrome, Edge, Firefox, Safari).
- Remote access via web client, NVR, Paramont CMS 2.0, and mobile apps (iOS/Android/Mac client).
- Advanced security: video/firmware/HTTPs encryption, illegal login lock, IP filtering, 802.1x.
Applications:
- Retail surveillance
- Parking lots
- Building perimeters
- Warehouse security
- School campuses
- Office entrances
- Driveway monitoring
- Loading docks
| Camera | |
|---|---|
| Image Sensor | 1 / 1.8" CMOS |
| Image Size | 3840 × 2160 |
| Electronic Shutter | 1 / 2 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.008 [email protected], AGC ON, 0 lux with IR, 0 lux with LED |
| Lens | 2.8 [email protected], H.FoV: 109°; V.FoV: 57°; D.FoV: 132° |
| Focus | Fixed |
| Lens Mount | M12 |
| Wide Dynamic Range | 120 dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 2D/3D DNR |
| S/N Ratio | ≥ 50 dB |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° |
| Video | |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile |
| Resolution | 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (2592 × 1944), 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, VGA (640 × 480), CIF, 480 × 240 |
| Main Stream | 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (60 Hz: 1 ~ 30 fps; 50 Hz: 1 ~ 25 fps) |
| Sub Stream | 1080P/720P/D1/VGA/CIF (60 Hz: 1 ~ 30 fps; 50 Hz: 1 ~ 25 fps) |
| Third Stream | D1/VGA/CIF/480 × 240 (60 Hz: 1 ~ 30 fps; 50 Hz: 1 ~ 25 fps) |
| Bit Rate | 64 Kbps ~ 12 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 10M/100M self-adaptive Ethernet port |
| Video Output | No |
| Audio | 1CH audio input; 1CH audio output; 1CH built-in microphone |
| Built-in Speaker | Yes |
| Built-in Speaker Info | Power/output: 1 W; dB: ≥ 90 dB; Frequency: 100–4 KHz |
| Alarm | 1CH alarm input; 1CH alarm output |
| Storage | Built-in micro SD card slot; up to 256 GB |
| Reset | Yes |
| Functions | |
| Remote Monitoring | Web Client / NVR / Paramont CMS 2.0 / Paramont CMS Mobile APP |
| Web Browser | IE11 (plug-in required) / Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+ |
| Online Connection | Support simultaneous monitoring for up to 10 users; support multi-stream real-time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS |
| Interface Protocol | ONVIF (Profile T) |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable connection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction |
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPS |
| PoE | Yes, IEEE802.3af |
| Supplement Light Range | IR range: 131' White light range: 98' |
| Protection Grade | IP66 |
| Intelligent Analytics | |
| Video Abnormality | Scene change detection, video blur detection, abnormal color detection |
| Perimeter Detection | Line crossing detection (human/vehicle classification); region intrusion/entrance/exiting detection (human/vehicle classification) |
| Sound & Light Warning | Yes |
| Other Events | Face detection and face capture, abandoned/missing object detection, heat map, target counting by line/area |
| DORI Distance (2.8 mm) | Detect: 262 ft (80 m); Observe: 105 ft (32 m); Recognize: 52 ft (16 m); Identify: 26 ft (8 m) |
| Others | |
| Power Supply | DC12V / PoE |
| Power Consumption | < 12.5 W |
| Storage Conditions | -22°F ~ 149°F (-30°C ~ 65°C), Humidity: < 95% (non-condensing) |
| Operating Conditions | -22°F ~ 140°F (-30°C ~ 60°C), Humidity: < 95% (non-condensing) |
| Dimensions | Ø 4.4 × 3.9 in (111.5 × 99.6 mm) |
| Weight (net) | Approx. 1.4 lbs (0.64 kg) |
| Installation | Ceiling mounting; wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH (EC1907/2006) |
