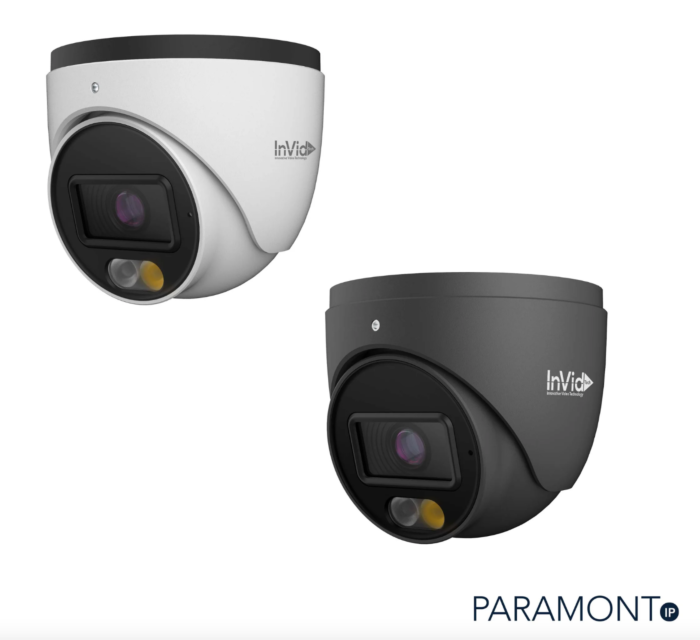

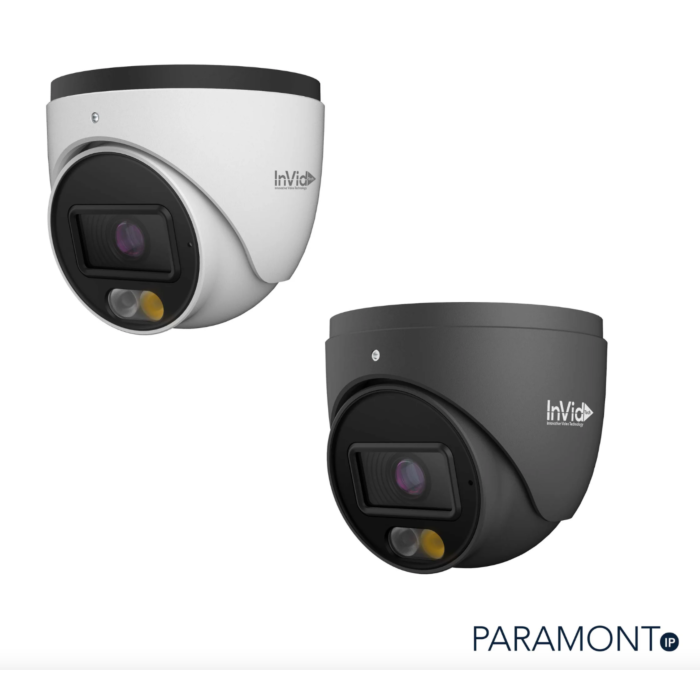

InVid Tech PAR-P8TXIR28-LC3 8MP AI IP Turret Camera, 2.8 mm, IR/White Light, IP67, 12VDC/PoE
SKU
PAR-P8TXIR28-LC3
Quick Overview
8MP Paramont IP turret camera with 2.8 mm fixed lens, AI human/vehicle classification, IR/white light illumination to 98 ft, true WDR, built‑in mic, microSD edge storage, IP67 housing, and 12 VDC/PoE for outdoor 4K security applications.
The InVid Tech PAR-P8TXIR28-LC3 is an 8 megapixel Paramont series IP turret camera delivering 3840 × 2160 resolution at up to 20 fps for detailed 4K surveillance footage. Its 2.8 mm fixed lens provides a wide 106° horizontal field of view, while true WDR 120 dB, 3D noise reduction, and defog processing maintain usable images in high-contrast, low-light, and adverse weather conditions. Built-in IR and white light up to 98 ft allow the camera to capture color or monochrome video in complete darkness, with options for IR only, white light, or AI-triggered white light response.
Designed for plug-and-play deployment, this turret supports first-level human and vehicle classification, smart motion detection, and line-cross/region intrusion events to reduce false alarms in busy scenes. Native Chrome/Edge browser support, QR-code P2P connection (NAT 2.0), and ONVIF interoperability simplify integration with existing NVRs, VMS platforms, and cloud services. Edge storage via microSD (up to 256 GB), IP67 weatherproof housing, and 12 VDC/PoE operation make the PARP8TXIR28LC3 a reliable choice for U.S. and Canadian security integrators deploying outdoor cameras in parking lots, perimeters, retail sites, and multi‑building campuses.
Features:
- 8 MP 4K UHD resolution (3840 × 2160) at up to 20 fps main stream for detailed evidence capture.
- 2.8 mm fixed lens with approx. 106° horizontal, 57° vertical, 124° diagonal field of view.
- First-level AI human and vehicle classification for more accurate event detection.
- Supplemental light options: IR, white light, or AI-triggered IR‑to‑white light for flexible night imaging.
- True WDR 120 dB plus BLC/HLC/3DNR/defog for challenging backlight and low-light scenes.
- Multi-codec streaming: H.265+, H.265, H.264+, H.264, MJPEG to optimize bandwidth and storage.
- Main stream up to 8MP 1–20 fps; sub/third stream up to 720p 30 fps for mobile and low-bandwidth viewing.
- Built-in microphone and 1-channel audio input for synchronized audio-video recording.
- Micro SD card slot supports up to 256 GB on-board edge storage for redundancy.
- True P2P connectivity with QR Code Connect NAT 2.0 for easy remote access setup.
- Native web access via Chrome, Edge, Firefox, Safari for cross-platform viewing.
- Smart alarms: motion detection, SMD, scene change, video blur/color abnormality, SD card and network events.
- Smart events: line crossing and region intrusion with human/motor vehicle/non‑motor vehicle classification, abandoned/missing object detection.
- IP67 weatherproof rating and -22°F to 140°F operating range for harsh outdoor environments.
- 12 VDC and IEEE 802.3af PoE power options for flexible installation.
- ONVIF (Profile T) compatibility for integration with third-party NVRs and VMS.
- Free iOS/Android mobile apps and PC/Mac CMS software for centralized monitoring.
Applications:
- Perimeter security
- Parking lots
- Retail frontage
- Warehouse exteriors
- Campus surveillance
- Residential estates
- Small business
- Public spaces
- Loading docks
- Driveway monitoring
Camera Specifications
| Model | PAR-P8TXIR28-LC3 |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max Resolution | 8 MP (3840 × 2160) |
| Electronic Shutter | 1/3 s ~ 1/100000 s |
| Iris Type | Fixed iris |
| Minimum Illumination | 0.02 lux @ F1.6, AGC ON; 0 lux with illumination on |
| Lens | 2.8 mm @ F1.6 |
| Field of View | Horizontal 106°; Vertical 57°; Diagonal 124° |
| Focus | Fixed |
| Lens Mount | M12 |
| Day & Night | ICR (Infrared Cut Filter Removable) |
| Wide Dynamic Range | 120 dB true WDR |
| BLC / HLC | BLC supported; HLC supported |
| Digital Noise Reduction | 3D DNR |
| Defog | Supported |
| S/N Ratio | ≥ 50 dB |
| Angle Adjustment | Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotation: 0° ~ 360° |
Video & Audio
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264; Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|---|
| H.265 Profile | Main Profile @ Level 4.1 High Tier |
| Supported Resolutions | 8MP (3840 × 2160), 6MP (3200 × 1800), 4MP (2688 × 1520), 2K (2560 × 1440), 1080P (1920 × 1080), 720P (1280 × 720), D1, VGA (640 × 480), 640 × 360, 480 × 240, CIF |
| Main Stream Frame Rate | 60 Hz: 8MP 1–20 fps / 6MP / 4MP / 2K / 1080P 1–30 fps; 50 Hz: 8MP 1–20 fps / 6MP / 4MP / 2K / 1080P 1–25 fps |
| Sub Stream | 720P / D1 / VGA / 640 × 360 / CIF / 480 × 240 (60 Hz: 1–30 fps; 50 Hz: 1–25 fps) |
| Third Stream | 720P / D1 / 640 × 360 / CIF (60 Hz: 1–30 fps; 50 Hz: 1–25 fps) |
| Bit Rate | 64 Kbps ~ 12 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, saturation, brightness, hue, contrast, WDR, sharpness, mirror, flip, noise reduction, etc. via client or browser |
| Audio Compression | G.711A / G.711U |
| Audio Input | Built-in microphone; 1 channel audio input |
| ROI | Up to 8 ROIs configurable independently |
Network & Interfaces
| Network Interface | RJ45 |
|---|---|
| Video Output | N/A (IP network output only) |
| Local Storage | Built-in micro SD card slot, up to 256 GB |
| Reset Button | Yes |
| Remote Monitoring | Web browser, Paramont NVR, Paramont CMS AI, Paramont CMS app |
| Supported Browsers | Chrome 89.0+, Edge 89.0+, Firefox 87.0+, Safari 14.0+ |
| Simultaneous Users | Up to 10 users, multi-stream real-time transmission |
| Network Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS |
| Interface Protocol | ONVIF (Profile T) |
| Storage Methods | Network remote storage, micro SD card storage up to 256 GB |
Intelligent Features
| Smart Alarm | Motion detection, SMD, SD card full/error, IP conflict, cable disconnection, scene change, video blur, abnormal color |
|---|---|
| Smart Events | Line crossing, region intrusion (human / motor vehicle / non-motor vehicle classification), abandoned/missing object detection |
| General Functions | Watermark, IP filtering, privacy mask, heartbeat, smart supplemental light, corridor mode, image distortion correction, ANR, cloud upgrade |
Power, Environmental & Mechanical
| Power Supply | DC 12 V; PoE (IEEE 802.3af) |
|---|---|
| Power Consumption | < 6.5 W |
| Supplemental Light Range | IR: up to 98 ft; White light: up to 98 ft |
| Ingress Protection | IP67 |
| Operating Conditions | -22°F ~ 140°F (-30°C ~ 60°C), < 95% RH (non-condensing) |
| Storage Conditions | -22°F ~ 149°F (-30°C ~ 65°C), < 95% RH (non-condensing) |
| Dimensions | 3.7" × 3.3" (Φ 94.6 × 82.8 mm) |
| Net Weight | Approx. 1 lb (0.45 kg) |
| Installation | Ceiling mounting or wall mounting |
DORI Distances (2.8 mm Lens)
| Detect | 259 ft (79 m) |
|---|---|
| Observe | 105 ft (32 m) |
| Recognize | 52 ft (16 m) |
| Identify | 27 ft (8 m) |
Security & Compliance
| Security Features | Video, firmware, and configuration encryption; illegal login lock; IP filtering; 802.1x; HTTP/RTSP basic and digest authentication |
|---|---|
| Certifications | CE, FCC |
| Environmental Compliance | RoHS, WEEE (2012/19/EU), 94/62/EC, REACH (EC 1907/2006) |
