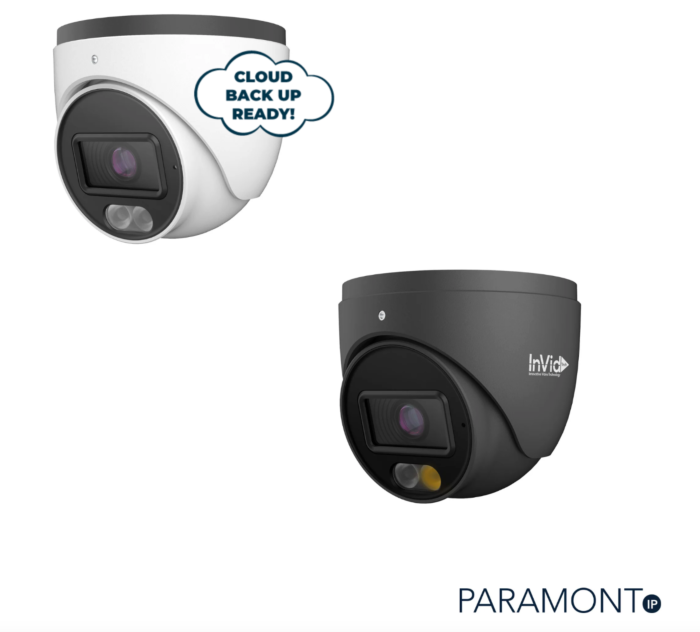

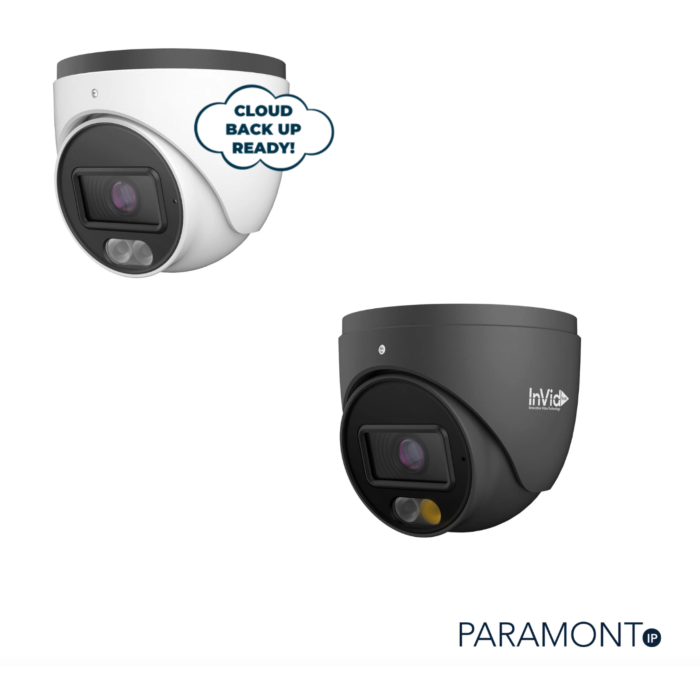

InVid Tech PAR-P6TXIR28-LC3 6MP AI IP Turret Camera, 2.8 mm, IR/White Light, IP67, 12VDC/PoE
SKU
PAR-P6TXIR28-LC3
Quick Overview
6MP IP turret camera with 2.8 mm fixed lens, AI human/vehicle classification, smart IR/white light, true 120 dB WDR, IP67 weatherproof housing, PoE power, and on-board SD storage up to 256 GB for professional security applications.
The PAR-P6TXIR28-LC3 (PARP6TXIR28LC3) is a professional 6 megapixel IP turret camera with a 2.8 mm fixed lens, engineered for reliable 24/7 video surveillance in commercial, industrial, and residential deployments. Its 6MP sensor (3200 × 1800) combines true 120 dB WDR, advanced noise reduction, and flexible image controls to deliver clear, detailed images in high-contrast and low-light scenes, helping security teams capture critical details like faces, license plates, and vehicle activity.
Designed for modern IP video systems, this outdoor-ready IP67 turret supports PoE, H.265+ compression, on-board micro SD storage up to 256 GB, and native browser access in Chrome, Edge, Firefox, and Safari for easy deployment and management. Smart supplemental lighting offers IR, white light, or AI-triggered IR-to-white-light switching, while built-in AI human and vehicle classification enhances event accuracy and reduces false alarms in real-world environments.
Features:
- 6 megapixel IP turret camera, 3200 × 1800 resolution for detailed imaging.
- 2.8 mm fixed lens with wide 104° horizontal field of view for broad coverage.
- Smart supplemental light: IR, white light, or AI-triggered IR-to-white-light mode.
- First-level AI human and vehicle classification to reduce false motion alarms.
- True WDR 120 dB plus digital noise reduction for challenging lighting conditions.
- H.265+/H.265/H.264+/H.264/MJPEG encoding for efficient bandwidth and storage use.
- 30 fps at 4MP/1080p; up to 20 fps at 6MP main stream for smooth live and recorded video.
- Built-in microphone with G.711A/U audio compression for integrated audio monitoring.
- Micro SD card slot supporting up to 256 GB for edge recording and redundancy.
- IP67-rated metal housing for outdoor use in harsh weather conditions.
- 12 VDC or PoE (IEEE802.3af) power options to simplify installation.
- ONVIF (Profile G/S/T/M) for broad VMS and NVR interoperability.
- True P2P connectivity with QR code NAT 2.0 for fast remote access setup.
- Supports native Chrome, Edge, Firefox, and Safari web access without plugins.
- Free iOS/Android apps and PC/Mac CMS for centralized monitoring and management.
Applications:
- Retail surveillance
- Warehouse monitoring
- Parking lots
- Building entrances
- Perimeter security
- Office interiors
- School campuses
- Healthcare facilities
- Residential exteriors
- Loading docks
Camera
| Model | PAR-P6TXIR28-LC3 |
|---|---|
| Image Sensor | 1/2.5" CMOS |
| Image Size | 3200 × 1800 |
| Electronic Shutter | 1/4 s ~ 1/100000 s |
| Iris Type | Fixed iris |
| Minimum Illumination | 0.008 lux @ F1.6, AGC ON; 0 lux with illumination on |
| Lens | 2.8 mm @ F1.6; Horizontal FoV: 104°; Vertical FoV: 55°; Diagonal FoV: 128° |
| Focus | Fixed |
| Lens Mount | M12 |
| Day/Night | ICR |
| Wide Dynamic Range | 120 dB |
| BLC | Yes |
| HLC | Yes |
| Digital NR | Yes |
| S/N Ratio | ≥ 50 dB |
| Angle Adjustment | Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotation: 0° ~ 360° |
Video & Audio
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264; Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|---|
| H.265 Standard | Main Profile @ Level 4.1 High Tier |
| Supported Resolutions | 6MP (3200 × 1800), 4MP (2688 × 1520), 1080P (1920 × 1080), 720P (1280 × 720), D1, VGA (640 × 480), 480 × 240, CIF |
| Main Stream | 60 Hz: 6MP (1–20 fps) / 4MP / 1080P (1–30 fps); 50 Hz: 6MP (1–20 fps) / 4MP / 1080P (1–25 fps) |
| Sub Stream | 720P/D1/VGA/CIF (60 Hz: 1–30 fps; 50 Hz: 1–25 fps) |
| Third Stream | D1 / 480 × 240 / CIF (60 Hz: 1–30 fps; 50 Hz: 1–25 fps) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, saturation, brightness, hue, contrast, WDR, sharpness, mirror, flip, NR (via client software or web browser) |
| Audio Compression | G.711A/U |
| Audio | 1-channel audio input; built-in microphone |
Network & Interfaces
| Network Interface | RJ45 |
|---|---|
| Video Output | No |
| Storage | Built-in micro SD card slot, up to 256 GB |
| Reset | Yes |
| Remote Monitoring | IE browser, Paramont NVR, Paramont CMS AI, Paramont CMS App |
| Supported Browsers | Chrome 89.0+, Edge 89.0+, Firefox 87.0+, Safari 14.0+ |
| Simultaneous Users | Up to 6 users; multi-stream real-time transmission |
| Network Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS |
| Interface Protocol | ONVIF (Profile G/S/T/M) |
| Storage Methods | Network remote storage; micro SD card storage |
| Smart Alarms | Motion detection, SMD, SD card error/full, IP conflict, network disconnection, video exception |
| Smart Events | Line crossing, region intrusion (human/vehicle classification), abandoned/missing object detection |
| General Functions | Watermark, IP filtering, video mask, heartbeat, ANR, cloud upgrade, smart supplement light, corridor mode |
| PoE | Yes (IEEE802.3af) |
| Supplement Light Range | IR: 98 ft; white light: 98 ft |
| Security Features | Video/firmware/config encryption, HTTPS, illegal login lock, IP filtering, 802.1x, HTTP/RTSP basic and digest auth |
DORI Distance (2.8 mm Lens)
| Detect | 226 ft (69 m) |
|---|---|
| Observe | 92 ft (28 m) |
| Recognize | 46 ft (14 m) |
| Identify | 23 ft (7 m) |
General
| Power Supply | DC 12 V / PoE |
|---|---|
| Power Consumption | < 6.5 W |
| Storage Conditions | -22°F ~ 149°F (-30°C ~ 65°C), < 95% RH (non-condensing) |
| Operating Conditions | -22°F ~ 140°F (-30°C ~ 60°C), < 95% RH (non-condensing) |
| Dimensions | 3.7 × 3.3 in (Φ 94.6 × 82.8 mm) |
| Net Weight | Approx. 0.99 lb (0.45 kg) |
| Installation | Ceiling mounting; wall mounting |
| Certifications | CE, FCC |
| Environmental Compliance | EU RoHS, WEEE (2012/19/EU), Directive 94/62/EC, REACH (EC1907/2006) |
