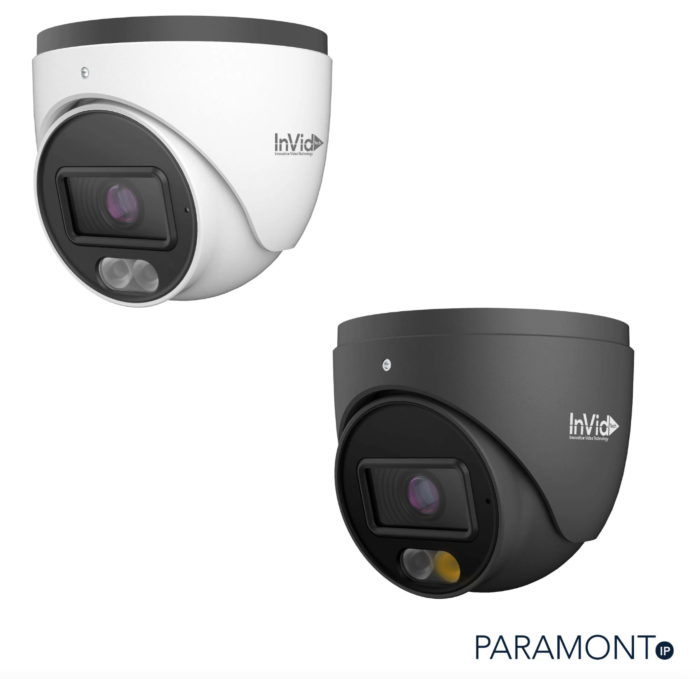

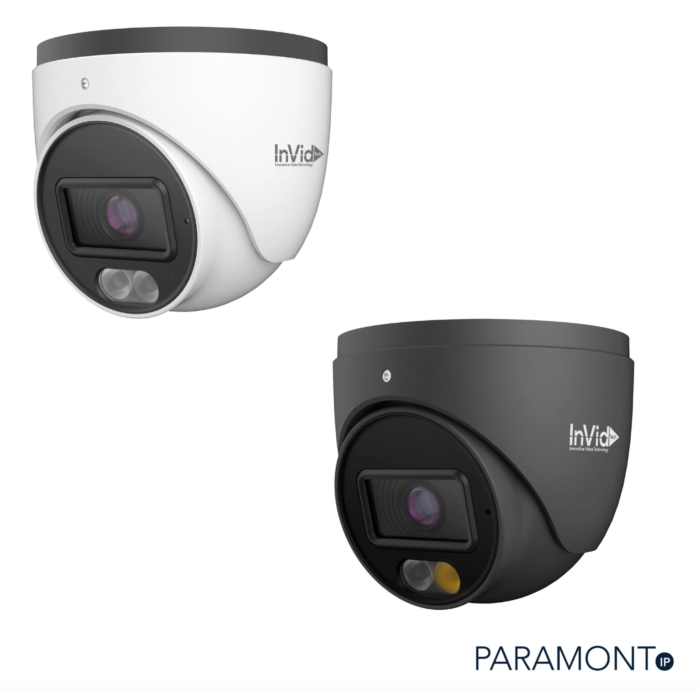

InVid Tech PAR-P4TXIR28-LC3 4MP AI IP Turret Camera, 2.8 mm, IR/White Light, IP67, 12VDC/PoE
SKU
PAR-P4TXIR28-LC3
Quick Overview
4MP IP67 outdoor turret camera with 2.8 mm fixed lens, AI human/vehicle classification, IR/white light illumination, built‑in mic, and microSD edge recording up to 256 GB. Ideal for plug‑and‑play deployments using 12VDC or PoE, with native Chrome/Edge support and free mobile/CMS software.
InVid Tech PAR-P4TXIR28-LC3 (PARP4TXIR28LC3) is a 4 megapixel IP turret camera with a 2.8 mm fixed lens, true WDR, and flexible IR/white light illumination for reliable outdoor security in demanding lighting conditions. It combines AI‑based human and vehicle classification, built‑in microphone, edge recording, and IP67 weather protection, making it a dependable choice for commercial, residential, and municipal surveillance projects.
Featuring 30 fps streaming at up to 4 MP resolution and multi‑codec support (H.265+/H.265/H.264+/H.264/MJPEG), this camera is optimized for modern NVRs, VMS platforms, and bandwidth‑constrained networks. True P2P connectivity with QR code setup, ONVIF support, and free mobile/CMS software simplify deployment across sites in North America and other regions, aligning with current EEAT and GEO expectations for transparent, verifiable performance and real‑world installations.
Features:
- 4 megapixel resolution (2560 × 1440) up to 30 fps main stream.
- 2.8 mm fixed lens with 94° horizontal field of view.
- First‑level AI human and vehicle classification (line crossing and region intrusion).
- Supplemental light options: IR, white light, or AI‑triggered white light.
- True WDR 120 dB, BLC, HLC, and 3D digital noise reduction for difficult lighting.
- Multi‑codec support: H.265+, H.265, H.264+, H.264, MJPEG across three streams.
- Built‑in microphone with G.711A/U audio compression.
- MicroSD card slot, supports up to 256 GB for edge recording.
- IP67 weatherproof housing for outdoor environments.
- 12VDC or IEEE 802.3af PoE power, < 6 W power consumption.
- IR and white light range up to 98 ft (30 m).
- True P2P connectivity with QR code (NAT 2.0) for remote access.
- ONVIF (Profile G/S/T/M) interoperability with third‑party NVRs and VMS.
- Supports major browsers: Chrome, Edge, Firefox, Safari.
- Free iOS/Android apps and PC/Mac CMS for multi‑site viewing and management.
- NDAA compliant design suitable for government and regulated deployments.
Applications:
- Retail surveillance
- Parking lots
- Warehouse security
- School campuses
- Office exteriors
- City streets
- Residential driveways
- Industrial yards
| Camera | |
|---|---|
| Model | PAR-P4TXIR28-LC3 |
| Image Sensor | 1/3" CMOS |
| Image Size | 2560 × 1440 |
| Electronic Shutter | 1/1 s ~ 1/100000 s |
| Iris Type | Fixed iris |
| Minimum Illumination | 0.005 lux @ F1.6, AGC ON; 0 lux with illumination on |
| Lens | 2.8 mm @ F1.6, H: 94°; V: 50°; D: 115° |
| Focus | Fixed |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | 120 dB |
| BLC / HLC | BLC, HLC |
| Digital Noise Reduction | Yes (3D DNR) |
| S/N Ratio | ≥ 50 dB |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° |
| Video | |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub/Third: H.265+/H.265/H.264+/H.264/MJPEG |
| H.265 Standard | Main Profile @ Level 4.1 High Tier |
| Resolutions | 4MP (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), 480×240, CIF |
| Main Stream | 4MP/3MP/1080P/720P (60 Hz: 1–30 fps; 50 Hz: 1–25 fps) |
| Sub Stream | 720P/D1/VGA/CIF (60 Hz: 1–30 fps; 50 Hz: 1–25 fps) |
| Third Stream | D1/480×240/CIF (60 Hz: 1–30 fps; 50 Hz: 1–25 fps) |
| Bit Rate | 64 Kbps ~ 6 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, saturation, brightness, hue, contrast, WDR, sharpness, mirror, flip, NR (via client or browser) |
| Region of Interest | Each ROI configurable separately |
| Audio & Interfaces | |
| Audio Compression | G.711A/U |
| Audio | 1 ch audio input; 1 ch built-in microphone |
| Network | RJ45 |
| Video Output | None |
| Local Storage | Micro SD card slot, up to 256 GB |
| Reset | Yes |
| Network & Functions | |
| Remote Monitoring | Browser / NVR / Paramont CMS / Paramont CMS App |
| Supported Browsers | Chrome 89.0+, Edge 89.0+, Firefox 87.0+, Safari 14.0+ |
| Online Users | Up to 6 simultaneous users, multi-stream transmission |
| Network Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS |
| Interface Protocol | ONVIF (Profile G/S/T/M) |
| Storage Modes | Network remote storage; micro SD card storage |
| Smart Alarms | Motion detection, SMD, SD card error/full, IP conflict, network disconnection, video exception |
| Smart Events | Line crossing, region intrusion (human/vehicle classification), abandoned/missing object |
| General Functions | Watermark, IP filtering, privacy mask, heartbeat, ANR, cloud upgrade, smart supplement light, corridor mode |
| PoE | IEEE 802.3af |
| Supplement Light Range | IR: 98 ft; white light: 98 ft |
| Ingress Protection | IP67 |
| Security | Video/firmware/config encryption, HTTPS, illegal login lock, IP filtering, 802.1x, HTTP/RTSP basic & digest auth |
| DORI Distance (2.8 mm) | |
| Detect | 203 ft (62 m) |
| Observe | 81 ft (25 m) |
| Recognize | 40 ft (12 m) |
| Identify | 20 ft (6 m) |
| General | |
| Power Supply | DC 12 V / PoE |
| Power Consumption | < 6 W |
| Operating Conditions | -22°F ~ 140°F (-30°C ~ 60°C), < 95% RH (non-condensing) |
| Storage Conditions | -22°F ~ 149°F (-30°C ~ 65°C), < 95% RH (non-condensing) |
| Dimensions | 3.7" × 3.3" (Φ 94.6 × 82.8 mm) |
| Net Weight | Approx. 0.99 lb (0.45 kg) |
| Installation | Ceiling or wall mounting |
| Certifications | CE, FCC, NDAA compliant; RoHS, WEEE, 94/62/EC, REACH |
