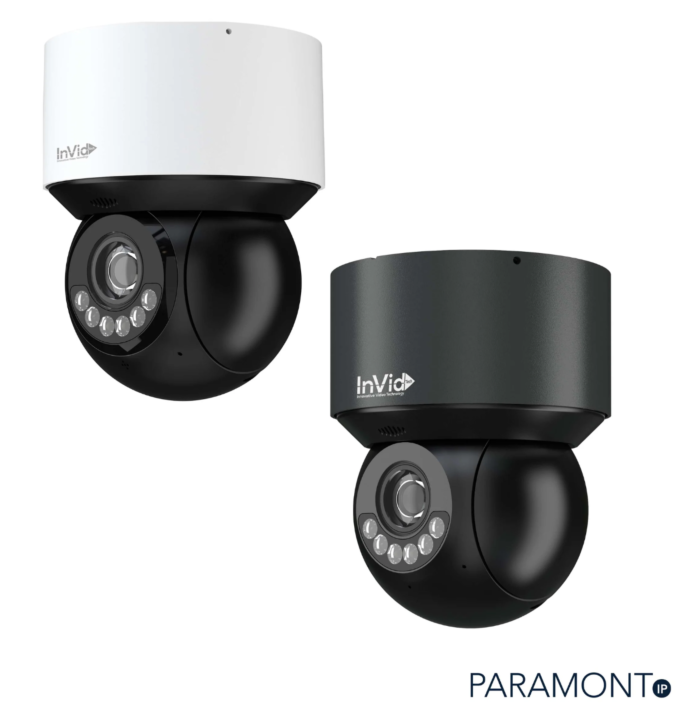

InVid Tech PAR-P4PTZXIR2812NH-AIWL 4MP AI IP PTZ Camera, 2.8–12mm Motorized, IR/White Light, IP66/IK10, 12VDC/PoE+
SKU
PAR-P4PTZXIR2812NH-AIWL
Quick Overview
4MP AI outdoor PTZ camera with motorized 2.8–12mm lens, Smart IR to 164 ft, active deterrent siren + white light, and built-in mic/speaker. Supports PoE+, SD recording, and true WDR 120dB for high-clarity security imaging.
The PAR-P4PTZXIR2812NH-AIWL is a professional-grade 4 Megapixel AI-powered PTZ camera engineered for outdoor surveillance applications demanding precise control and intelligent detection. Featuring a 2.8–12mm motorized autofocus lens, this IP camera captures crystal-clear video across a wide field of view, while Smart IR and White Light Deterrent technology ensure unmatched clarity and proactive deterrence, day or night. Built-in two-way audio, line-crossing, and intrusion detection elevate site awareness and real-time response capabilities.
Designed for reliable performance in harsh environments, the camera combines IP66 and IK10-rated aluminum housing with AI human and vehicle classification and multi-protocol integration via ONVIF for seamless VMS and NVR compatibility. With flexible 12VDC/PoE+ power, edge storage up to 256GB, and CMS/iOS/Android app support, the PARP4PTZXIR2812NHAIWL offers both convenience and advanced protection for critical security installations.
Features:
- 4MP resolution with motorized autofocus lens (2.8–12mm)
- AI human and vehicle classification for smart detection
- Flashing white deterrent light and siren (AI-triggered)
- Smart IR up to 164 ft, true day/night imaging
- True WDR 120dB for balanced exposure
- Two-way audio: built-in microphone and speaker
- ONVIF compatibility and PoE+ support
- Free CMS software and mobile apps (iOS/Android)
- IP66 & IK10 rated weatherproof aluminum housing
- Local microSD storage up to 256GB
Applications:
- Perimeter Security
- Parking Lots
- Warehouses
- Retail Stores
- Public Spaces
- Transportation Hubs
| Camera Module | |
|---|---|
| Image sensor | 1/2.7″ progressive scan CMOS with BSI and NIR+ technology |
| Mini. Illumination | Color: 0.01 Lux @ (F1.6, AGC ON); B/W: 0.002Lux @(F1.6, AGC ON);0Lux with IR |
| Image setting | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client |
| Shutter Speed | 50Hz: 1/25s~1/25,000s, 60Hz: 1/30s~1/30,000s |
| White Balance | Auto/Manual/Indoor/Outdoor |
| Gain | Auto/Manual |
| Day & Night | Auto/Manual |
| Aperture control | N/A |
| S/N Ratio | ≥52dB |
| 3D DNR | Auto/Manual |
| AE Enhancement | BLC, HLC, WDR |
| Privacy Mask | 4 Programmable privacy masks, up to 8 per request |
| Picture overlay | Logo picture could be overlaid on video with 128x128pixels,24bits BMP format |
| Font overlay | Max 15characters per line, 8lines max, white color or red color |
| Lens | |
| Focus length | f=2.8-12mm lens,4x optical |
| Zoom Speed | About 1.6second(Wide->tele) |
| Field of View | Horizontal: 97° to 31°±5%;Vertical: 51° to 18°±5%; Diagonal: 115° to 36°±5% (wide-tele) |
| Working distance | wide: 0.3m ~ INF; tele: 0.5m ~ INF |
| Aperture Range | F1.6~ F2.7 (wide-tele) |
| IRCut filter | Electrical switchable ICR |
| DORI table | Lens Detect(25px/m) Observe(63px/m) Recognize(125px/m) Identify(250px/m) 2.8mm 223 ft(68m) 88.9 ft(27.1m) 44.6 ft(13.6m) 22.3 ft(6.8m) 12mm 678.1 ft(206.7m) 269 ft(82m) 135.5 ft(41.3m) 68 ft(20.7m) |
| PTZ | |
| Pan Range | 0~355° |
| Pan speed | Configurable, from 0.1~80°/s; Preset speed: 80°/s |
| Tilt Range | From -5° to 90° |
| Tilt Speed | Configurable, from 0.1°~ 60°/s, Preset speed: 60°/s |
| Pan/Tilt action | intervals At least 10seconds, adjustable |
| Proportional Zoom | Yes |
| Preset | 300 |
| Cruise | 8 cruises, up to 16 presets for each cruises |
| Trace | 4 traces, record time over 3 minutes for each trace |
| Power off memory | Support |
| Action mode | Preset/Cruise/Trace/Auto Scan/Random Scan |
| 3D Positioning | Support |
| PTZ Position Display | Support |
| Schedule Task | Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot |
| Supplement Light | |
| IR Distance | Up to 164 ft (50m),4pcs of IR Array into 2 Groups, auto switch with zoom ratio |
| Smart IR | Yes |
| White light Distance | Up to 98ft , 2pcs of White LED Array (Deterrent Only) |
| White light Mode | Flash mode(2x brightness), time interval adjustable; Constant Mode ( On AI Events) |
| Network | |
| Max Resolution | 2560×1440 |
| Main stream | 25fps (2560×1440, 2048×1536, 1920×1080, 1280×960, 1280×720); 30fps (2560×1440, 2048×1536, 1920× 1080, 1280× 960, 1280× 720) |
| Sub stream | 25fps (704 × 576, 640 × 480, 352 × 288); 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) ; 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video compression | Smart H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 Encoder | H.264/AVC codec BP/MP/HP, level 5.1 |
| H.265 Encoder | H.265/HEVC codec MP, level 5.0 |
| Video bit rate | 64Kbps ~ 16Mbps |
| Audio Compression | G.711 A/U |
| Audio bit rate | 64Kbps |
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE |
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering |
| Smart Features | |
| Basic event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) |
| Face recognize | Support human face detection, max 15 human faces per scene. Support face capture, tracking, comparison, edge storage |
| Road traffic | Vehicle detecting and tracking, etc. |
| Smart Detection | Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection,etc. ( Human and Vehicle Classification) |
| Smart Tracking | Smart tracking of human or vehicle, auto/manual |
| Active Deterrence | Flash strong white light and predefined voice upon invaders detected. Support 10 more different predefined voice clips |
| Dual way talk | Alarm Deterrent + Two Way Audio |
| System Integration | |
| Ext. Audio Interface | 1-ch audio input(mic in),2.0-2.4Vp-p,1kΩ±10%;1-ch audio output(line out),line level, impendance:600 Ω; |
| Built-in Speaker | Yes |
| Built-in Speaker Info | Power/output: 1W, dB: ≥90dB, Frequency: 100-4KHz |
| Built-in MIC | 1channel, rotation with camera lens direction, up to 15 ft distance voice recordable. |
| Audio device switch | Default use built-in speaker and MIC, manually switch to external |
| Alarm Linkage | Alarm actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email,etc |
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet (Support PoE+ ) |
| Storage Slot | Standalone ext. memory card chamber, support microSD/TF card, up to 256GB |
| Serial interface | N/A (RS485/232) |
| Auxiliary video out | N/A(BNC/CVBS/TVI) |
| Reset button | Yes |
| Heat and Fan | Built-in temperature sensor, auto shut down at over- temperature; auto heat at cold start. No built-in fan. |
| Water removal | Dust and Water-resistant coating for lens cover |
| API | ONVIF, support SDK and third-party management platform |
| Client | Paramont NVR, Paramont CMS; free iOS and Android App |
| Web Browser | IE8-11 |
| App version | Default:5.0.1. Update to 5.1.1 per request |
| Audio Sensitivity | -36db |
| General | |
| Languages | Czech; English, German; Hungarian ; Italian ; Japanese ; Korean ; Portuguese, Polish;Russian, Romanian, Spanish; Spanish(Mexico);Simplified Chinese; Turkish; Traditional Chinese. etc. |
| Power | DC12V±20%,3000mA,PoE+ (802.3.at), AVG. 4.5Watt, Max 16.2Watt at day; 20.2Watt at night (LED on, Speaker on + PT Rotation) |
| Working condition | -40°F ~ 158°F (-40°C ~ 70°C) IR off, -40°F ~ 140°F (-40°C ~ 60°C) IR on; Cold start≥- 25°C(1Hour waiting), ≤90%RH |
| Storage condition | -40°F ~ 158°F (-40°C ~ 70°C) ; ≤ 95% RH |
| Protection | 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Shield Material | Main body: Aluminum Alloy(ADC12),Decoration: Polymer(Glass fiber and Plastic) |
| Dimensions | 5.1 x 6.4′ (130 x 162 mm) |
| Net Weight | Approx. 2.65lb (1.2Kg) |
| Certification | IP66,IK10 (include lens window), ROHS,CE,FC,3C |
