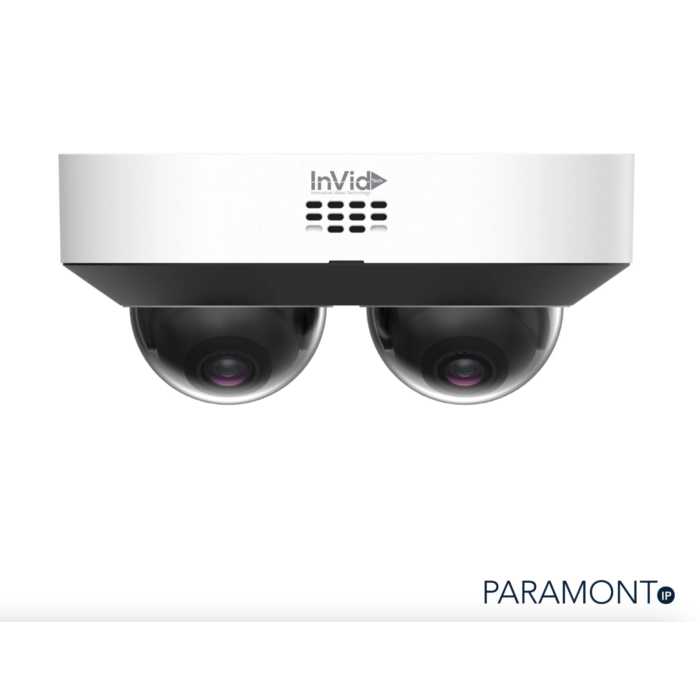

InVid Tech PAR-P4DUALDRIR28NH-AI 4MP AI IP Dual Dome Camera, Dual 2.8 mm Fixed Lenses, 98′ IR, IP66/IK10, 12VDC/PoE
SKU
PAR-P4DUALDRIR28NH-AI
Quick Overview
4MP dual-channel AI IP dome camera with dual non-splicing 2.8 mm lenses, 98 ft IR, 120 dB WDR, IP66/IK10 protection, dual built-in microphones, and 12VDC/PoE for professional outdoor security applications.
The PAR-P4DUALDRIR28NH-AI (PARP4DUALDRIR28NHAI) is a dual-channel 4MP IP dome camera with two non-splicing fixed 2.8 mm lenses, delivering a wide field of view and 4MP resolution on each sensor for detailed coverage in a single housing. With up to 98 ft IR range, true day/night ICR, and 120 dB WDR, it captures clear, balanced video in challenging lighting, while built-in dual microphones support audio capture for improved situational awareness.
Designed for professional security deployments, this outdoor dome offers true AI human and vehicle classification for line crossing, intrusion, and other smart events to reduce false alarms and streamline monitoring. Its IP66 weather protection, IK10 vandal resistance, and 12VDC/PoE support make it suitable for exposed installations, while ONVIF compliance, micro SD edge recording up to 512 GB, and free CMS/mobile apps simplify integration and remote management.
Features:
- (2) 4 Megapixel dual-channel non-splicing IP dome cameras in a single housing.
- Dual fixed 2.8 mm lenses for wide-angle coverage on each sensor.
- Up to 98 ft IR range with true day/night ICR for low-light performance.
- 4MP resolution at up to 30 fps with H.265+/H.265/H.264+/H.264 compression.
- 120 dB true WDR, BLC, HLC, and defog image enhancement for challenging lighting.
- True AI human and vehicle classification with line crossing, intrusion, loitering, illegal parking, and object detection analytics.
- Dual built-in microphones plus 1-channel audio input and 1-channel audio output.
- Micro SD card slot supporting up to 512 GB of on-board edge storage.
- IP66 weather-resistant and IK10 vandal-resistant dome construction.
- 12VDC and PoE (IEEE 802.3af) power options.
- RJ45 10/100 Mbps Ethernet with ONVIF (Profile G/S/T/M) interoperability.
- Smart alarm support including motion detection, SMD, SD card error/full, IP conflict, network disconnection, and audio alarms.
- Remote monitoring via web browser, NVR, Paramont CMS, and free iOS/Android mobile apps.
Applications:
- Retail surveillance
- Parking lots
- Campus security
- Warehouse monitoring
- Perimeter defense
- Public transit
- Office buildings
- Healthcare facilities
- Municipal sites
- Mixed-use complexes
| Camera | |
|---|---|
| Model | PAR-P4DUALDRIR28NH-AI |
| Image Sensor | 1 / 3" CMOS × 2 |
| Image Size | 2688 × 1520 |
| Electronic Shutter | 1 / 3 s ~ 1 / 100000 s |
| Iris Type | Fixed iris |
| Minimum Illumination | 0.005 lux @ F1.6, AGC ON; 0 lux with IR |
| Lens | 2.8 mm @ F1.6, Horizontal FoV: 101°; Vertical FoV: 55°; Diagonal FoV: 122° |
| Focus | Fixed |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | 120 dB |
| BLC / HLC / Defog | BLC, HLC, Defog supported |
| S/N Ratio | ≥ 50 dB |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: -90° ~ 90°; Tilt: 0° ~ 65°; Rotation: 0° ~ 355° |
| Video | |
| Video Compression | Main/Third stream: H.265+ / H.265 / H.264+ / H.264; Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Profiles | Baseline Profile / Main Profile / High Profile |
| Supported Resolutions | 4MP (2688 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, VGA (640 × 480), 640 × 360, CIF, 480 × 240 |
| Main Stream | 4MP / 2K / 3MP / 1080P (60 Hz: 1 ~ 30 fps; 50 Hz: 1 ~ 25 fps) |
| Sub Stream | 720P / D1 / VGA / 640 × 360 / 480 × 240 / CIF (60 Hz: 1 ~ 30 fps; 50 Hz: 1 ~ 25 fps) |
| Third Stream | D1 / CIF / 480 × 240 (60 Hz: 1 ~ 30 fps; 50 Hz: 1 ~ 25 fps) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G.711A / U |
| Image Settings | ROI, saturation, brightness, hue, contrast, WDR, sharpness, mirror, flip, NR adjustable via client or browser |
| ROI | Each ROI configurable separately |
| Intelligent Analytics | |
| Smart Events | Line crossing; region intrusion/entrance/exiting (human/vehicle classification); loitering detection; illegal parking; abandoned/missing object detection |
| Statistics | Target counting by line/area; heat map |
| Exception Detection | Scene change; video blur; abnormal color; audio exception |
| Face Detection | Face detection and capture |
| DORI Distance (2.8 mm) | |
| DORI | Detect: 191 ft (58 m); Observe: 76 ft (23 m); Recognize: 38 ft (12 m); Identify: 19 ft (6 m) |
| Interfaces | |
| Network | RJ45 10M/100M self-adaptive Ethernet port |
| Video Output | Yes |
| Audio | 1-ch audio input; 1-ch audio output; 2-ch built-in MICs; 1-ch built-in speaker |
| Storage | Built-in micro SD card slot; up to 512 GB |
| Reset | Yes |
| Alarm I/O | 2-ch alarm input; 2-ch alarm output |
| Power Output | Max. DC 12V @ 100 mA |
| Functions | |
| Remote Monitoring | Web browser / Paramont CMS / NVR / Mobile app |
| Supported Browsers | Chrome 89.0+; Edge 89.0+; Firefox 87.0+; Safari 14.0+ |
| Online Connections | Up to 10 simultaneous users; multi-stream real-time transmission |
| Network Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, P2P, QoS |
| Interface Protocol | ONVIF (Profile G / S / T / M) |
| Storage Modes | Network remote storage; micro SD card storage |
| Smart Alarms | Motion detection, SMD, SD card error/full, IP conflict, network disconnection, audio alarm |
| General Functions | Watermark, video mask, heartbeat, image distortion correction, corridor mode, disarming, ANR, cloud upgrade |
| Security | Video, firmware, HTTPS, and configuration encryption; illegal login lock; IP filtering; 802.1x; basic and digest authentication for HTTP/RTSP/API |
| PoE | Yes, IEEE 802.3af |
| IR Distance | 98 ft |
| Ingress Protection | IP66 & IK10 |
| General | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 9.5 W |
| Storage Conditions | -22°F ~ 149°F (-30°C ~ 65°C), < 95% RH (non-condensing) |
| Operating Conditions | -22°F ~ 140°F (-30°C ~ 60°C), < 95% RH (non-condensing) |
| Dimensions | 6.5 × 3.8 × 2.8 in (165.4 × 97.4 × 72 mm) |
| Weight (Net) | Approx. 1.66 lbs (0.755 kg) |
| Installation | Ceiling mounting; wall mounting |
| Certificates | CE, FCC |
| Environmental Protection | Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC, REACH (EC1907/2006) |
