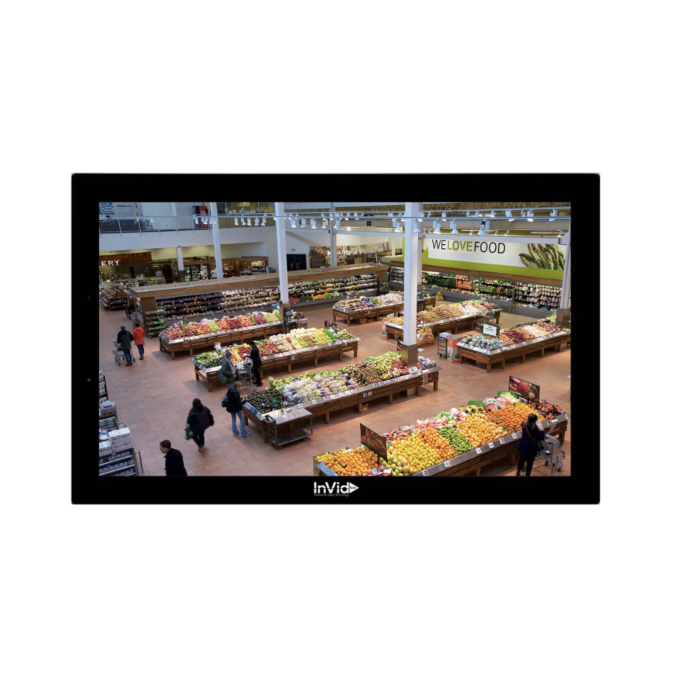

InVid Tech IMHD4K-55OVM 55" 4K Ultra-Bright IP67/IK10 Metal Outdoor 24/7 Surveillance Monitor with HDMI 2.0 & DP Inputs
The IMHD4K-55OVM is a 55" 4K ultra-high-brightness outdoor monitor purpose-built for 24/7 operation in demanding security, industrial, and public information environments. Its 3840 × 2160 resolution, 3000 cd/m² brightness, 4000:1 contrast ratio, and wide 178° viewing angles deliver sharp, daylight-viewable images that preserve critical detail for video surveillance and monitoring applications. A rugged metal chassis, IP67 front/IP65 rear weather protection, and IK10 impact resistance help ensure continuous uptime in rain, dust, and high-traffic or vandal-prone locations.
Designed for true 24/7 performance, this display supports portrait mode, fast 5 ms response time to minimize motion blur, and HDMI 2.0 plus DP inputs for easy integration with NVRs, media players, and control systems. The extended -22°F to 185°F (-30°C to 85°C) operating temperature range, industrial power supply, included wall mount, and built-in speakers make the IMHD4K-55OVM a turnkey choice for security integrators and system designers who need a dependable, outdoor-rated 4K monitor.
Features:
- 55" 4K UHD resolution (3840 × 2160) for detailed surveillance and information display.
- 3000 cd/m² high-brightness panel for clear daylight and outdoor visibility.
- Rugged metal housing with IP67 front and IP65 rear weatherproof protection.
- IK10 vandal-resistant design for high-traffic and risk-prone public environments.
- Built for continuous 24/7 operation in critical monitoring applications.
- Portrait mode support for flexible mounting and signage layouts.
- Wide 178°(H) / 178°(V) viewing angles for multi-operator visibility.
- 5 ms fast response time to reduce motion blur and ghosting on fast-moving video.
- HDMI 2.0 and DP inputs for NVRs, PCs, and media players.
- Built-in speakers for integrated audio monitoring or alerts.
- Operating temperature -22°F to 185°F (-30°C to 85°C) for harsh environments.
- Includes industrial PSU, wall/stand mounting hardware, and quick start guide for easy deployment.
Applications:
- Security monitoring
- Perimeter surveillance
- Industrial control
- Transportation hubs
- Public signage
- Stadium displays
- Parking facilities
- Critical infrastructure
| Model Name | IMHD4K-55OVM |
| Screen Size | 55" |
| Display Mode | 16:9 |
| LED Type | TFT-LED |
| Optical Performance | |
|---|---|
| Resolution | 3840 × 2160 (4K UHD) |
| Active Display Area | 1209.6 mm (W) × 680.4 mm (H) |
| Display Color | 1.073G |
| Pixel Pitch | 0.2451 mm (H) × 0.2451 mm (V) |
| Brightness | 3000 cd/m² |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | 5 ms |
| Backlight | LED |
| Inputs & Control | |
| HDMI 2.0 | 1 |
| DisplayPort (DP) | 1 |
| VGA | 0 |
| BNC | 0 |
| Remote Control | Yes |
| Built-in Speaker | Yes |
| Protection & Ruggedization | |
| Waterproof Rating | IP67 front case, IP65 back case |
| Vandal-proof | IK10 impact resistance |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
| Power & Environmental | |
| Power Input | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 120 W |
| Working Temperature | -22°F to 185°F (-30°C to 85°C) |
| MTBF | 50,000 hours |
| Mounting & Mechanics | |
| Mounting Options | Stand mount; VESA 600 × 600 |
| Net Weight | 143.3 lbs (65 kg) |
| Gross Weight | 154.3 lbs (70 kg) |
| Menu & OSD | |
| Menu Languages | English, German, French, Italian, Japanese, Korean |
| Included Accessories | |
| Accessories | Industrial PSU, screws, cable holder, quick start guide, wall mount |
