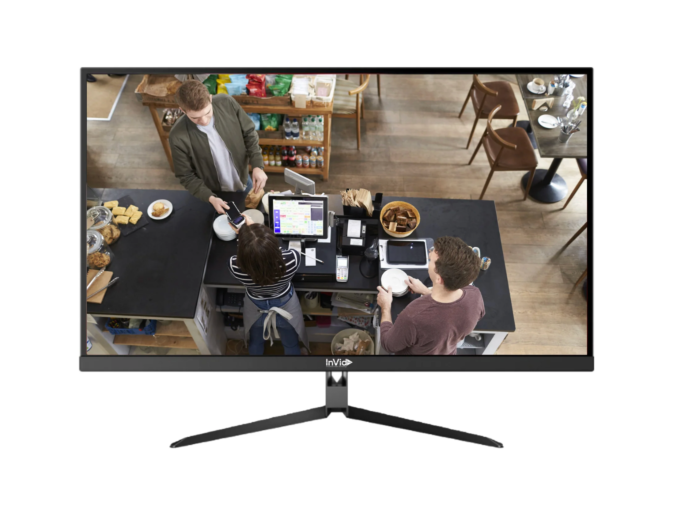

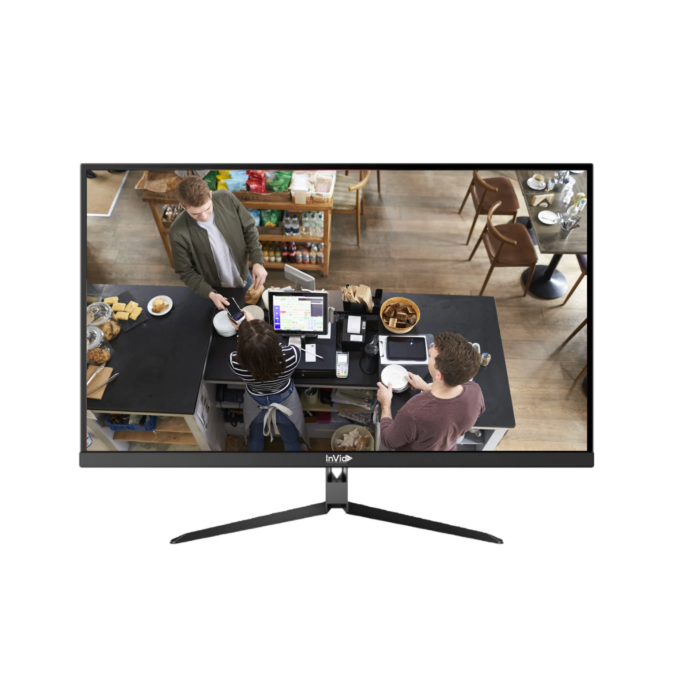

InVid Tech IMHD4K-32A 32" Ultra HD 4K 24/7 Surveillance LED Monitor with HDMI 2.0, HDMI 1.4 & DisplayPort
The IMHD4K-32A (IMHD4K32A) is a 32 inch Ultra High Definition 4K security-grade monitor engineered for 24/7 operation in demanding surveillance, control room, and industrial environments. With a native 3840 × 2160 resolution, bright LED panel, wide 170° viewing angle, and HDMI 2.0 / HDMI 1.4 / DisplayPort inputs, it delivers crisp detail and reliable performance for modern NVRs, VMS workstations, and high-resolution CCTV systems.
The durable TFT-LED panel, 3D comb filter, and integrated video noise reduction help maintain accurate color and sharpness under continuous use, while VESA 100 × 100 mounting and included industrial PSU simplify integration in wall, desk, or console installations. A wide operating temperature range and MTBF of 50,000 hours support mission-critical, 24/7 applications where downtime is not an option.
Features:
- 32” Ultra High Definition 4K resolution (3840 × 2160) for high-detail surveillance imagery.
- Bright LED-backlit TFT panel with 170° wide viewing angle for multi-operator viewing.
- Inputs: HDMI 2.0, HDMI 1.4, DisplayPort for flexible NVR/VMS and workstation connectivity.
- Built for 24/7 performance in security, monitoring, and industrial environments.
- Portrait mode support for flexible video wall and vertical layouts.
- 3D comb filter and video noise reduction for cleaner, more stable images.
- VESA 100 × 100 mounting and stand-mount options for easy installation.
- Integrated stereo speakers (2 × 3 W) for audio from surveillance or media sources.
- Wide working temperature range and 50,000-hour MTBF for long-term reliability.
Applications:
- Security surveillance
- Control rooms
- NVR workstations
- CCTV monitoring
- Industrial automation
- Retail security
- Public safety
| Model | IMHD4K-32A |
| Display | |
|---|---|
| Screen Size | 32" |
| Active Display Area | 697.6845 mm (W) × 392.256 mm (H) |
| Aspect Ratio | 16:9 |
| Panel Type | TFT-LED |
| Resolution | 3840 × 2160 (4K UHD) |
| Display Color | 1.073G |
| Pixel Pitch | 0.294 mm (H) × 0.294 mm (V) |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170° (H) / 170° (V) |
| Response Time | 5 ms |
| Backlight | LED |
| Inputs & Outputs | |
| HDMI 2.0 Inputs | 3 |
| DisplayPort Inputs | 1 |
| Power Input | 1 |
| USB (service) | 1 (software use only) |
| Speakers | 2 × 3 W (stereo) |
| Video & Image Processing | |
| Color System | PAL / NTSC / SECAM |
| OSD Controls | Auto adjust, Brightness, Contrast, Horizontal / Vertical position, Clock, Phase, Color, Language |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
| Power & Environmental | |
| Power Requirement | 12 V, 5 A |
| Power Consumption | < 35 W |
| Working Temperature | -22°F to 185°F (-30°C to 85°C) |
| MTBF | 50,000 hours |
| Mechanical | |
| Mounting | Stand mount, VESA mount 100 × 100 |
| Dimensions (W × H × D) | 28.7 × 16.7 × 2.2 in (728 × 424 × 55 mm) |
| Net Weight | 11 lbs (5 kg) |
| Gross Weight | 13.2 lbs (6 kg) |
| Menu & Languages | |
| Menu Languages | English (other languages supported) |
| Accessories | |
| Included Accessories | Industrial PSU, screws, cable holder, quick start guide |
