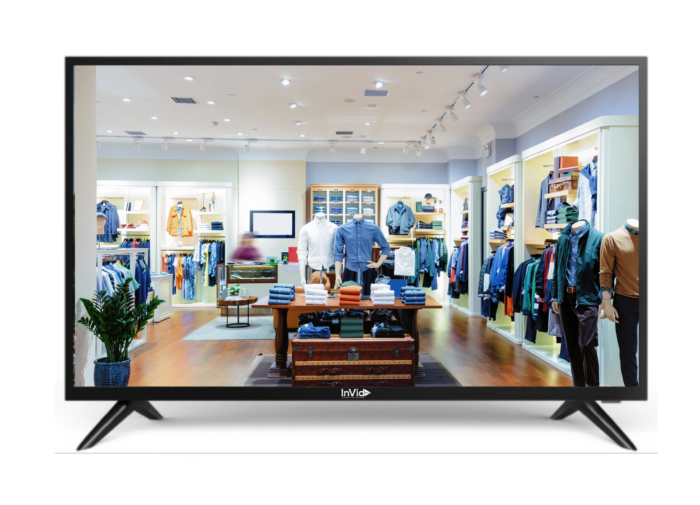

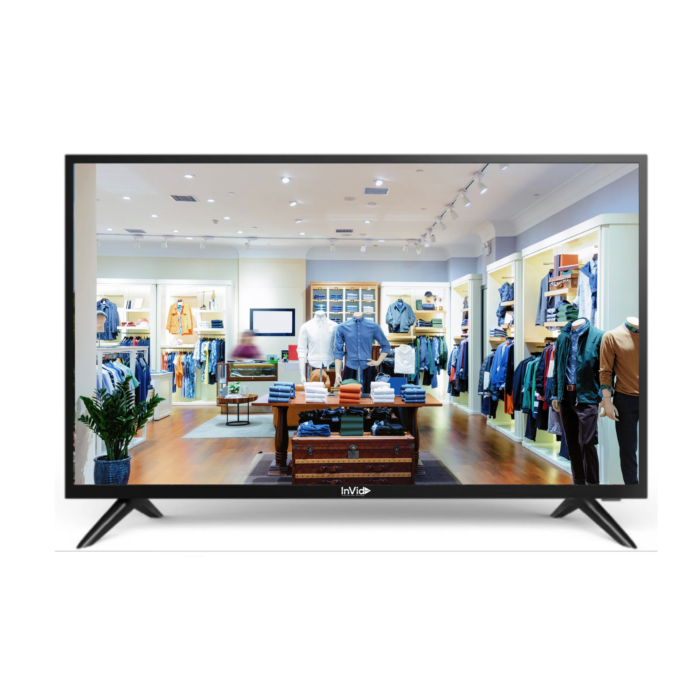

InVid Tech IMHD-32HVBN 32" Full HD 1080p 24/7 Surveillance LED Monitor with HDMI 2.0, VGA & Looping BNC
The IMHD-32HVBN (IMHD32HVBN) is a 32” Full HD (1920 x 1080) LED monitor designed specifically for professional security and video surveillance applications that require continuous, 24/7 performance. Its bright 350-nit TFT-LED panel, wide 178° viewing angles, and 1000:1 contrast ratio deliver clear, detailed images from virtually any position, helping operators quickly verify events and make decisions in real time.
With HDMI 2.0, VGA, dual BNC video inputs, and a looping BNC output, this monitor drops into both modern IP and legacy analog CCTV workflows without extra converters. Built-in stereo speakers, portrait mode support, and flexible stand or VESA 200 x 100 mounting give integrators and end users a robust, easy-to-deploy display solution for control rooms, security offices, and critical infrastructure sites.
Features:
- 32” TFT-LED panel with Full HD 1920 x 1080 resolution for sharp video detail.
- Commercial-grade design engineered for 24/7 continuous operation in security environments.
- Bright 350 cd/m² panel with 1000:1 contrast ratio and 178°/178° viewing angles for clear monitoring from multiple positions.
- Inputs: 1x HDMI 2.0, 1x VGA, 2x BNC video inputs for flexible connectivity to DVRs, NVRs, and encoders.
- 1x BNC looping output for easy daisy-chaining or signal distribution to additional monitors or recorders.
- Built-in 2 x 3 W stereo speakers for direct audio monitoring without external speakers.
- Portrait mode support for vertical layouts and specialized surveillance views.
- VESA 200 x 100 and stand mounting options for wall, desk, or bracket installations.
- Wide operating temperature range from -22°F to 185°F (-30°C to 85°C) for demanding environments.
- Multilingual OSD with auto-adjust, brightness, contrast, position, color, and language controls for quick setup.
Applications:
- Security monitoring
- CCTV surveillance
- Control rooms
- Retail loss-prevention
- Industrial facilities
- Transportation hubs
- Campus security
- Critical infrastructure
| Model Name | IMHD-32HVBN |
| Display Characteristics | |
|---|---|
| Screen Size | 32" |
| Active Display Area (W x H) | 697.6845 × 392.256 mm |
| Display Mode | 16:9 |
| LED Type | TFT-LED |
| Resolution | 1920 × 1080 |
| Display Color | 1.073G |
| Pixel Pitch (H x V) | 0.294 × 0.294 mm |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 5 ms |
| Backlight | LED |
| Input & Output | |
| HDMI 2.0 | 1 |
| VGA | 1 |
| BNC Input | 2 |
| BNC Output | 1 (looping) |
| Speaker | 2 × 3 W (stereo) |
| Video | |
| Color System | PAL / NTSC / SECAM |
| OSD Control | Auto adjust, Brightness, Contrast, Horizontal/Vertical Position, Clock, Phase, Color, Language |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
| Power & Mounting | |
| Power Supply | AC 100V ~ 240V, 50/60 Hz |
| Power Consumption | <35 W |
| Working Temperature | -22°F ~ 185°F (-30°C ~ 85°C) |
| Mounting | Stand mount, VESA 200 × 100 |
| MTBF | 50,000 hours |
| Mechanical | |
| Dimensions (W x H x D) | 29.1 × 18.8 × 3.6 in (738 × 478 × 92 mm) |
| Net Weight | 8.8 lbs (4 kg) |
| Gross Weight | 12.1 lbs (5.5 kg) |
| Menu & Languages | |
| Menu Languages | Chinese / English (other languages supported) |
| Accessories | |
| Included Accessories | Industrial PSU, Screws, Cable holder, Quick start guide |
