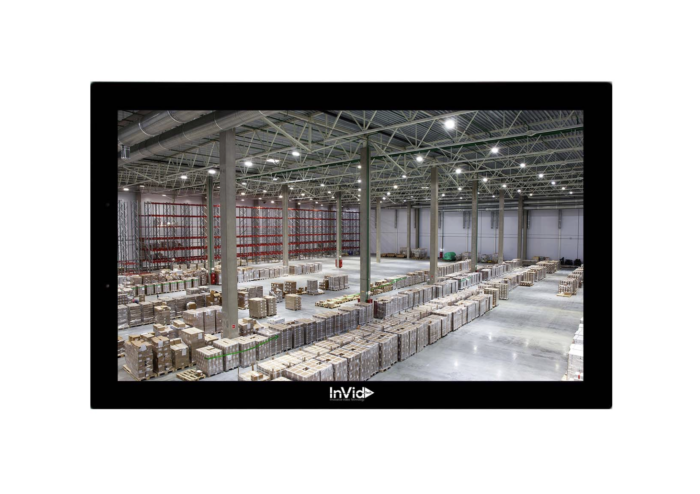

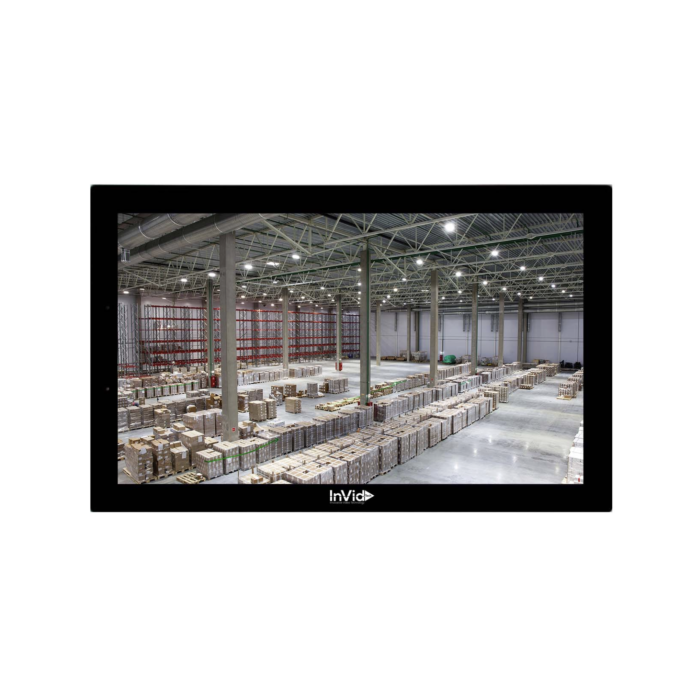

InVid Tech IMHD-320VM 32" Full HD 24/7 Outdoor Vandal-Proof Monitor with HDMI & VGA
The IMHD-320VM (IMHD320VM) is a rugged 32 inch Full HD 1920 × 1080 industrial monitor engineered for demanding outdoor and public-view security applications. With an ultra-high 3000 cd/m² brightness rating, wide 178° × 178° viewing angles, and a fast 5 ms response time, it delivers clear, blur-free video even in high ambient light, making it ideal for critical surveillance and situational awareness in North American and international security installations.
Built with a metal enclosure, IK10 vandal resistance, and IP67/IP65 weatherproof protection (IP67 front, IP65 rear), this monitor is designed for 24/7 operation in harsh environments from -22°F to 185°F (-30°C to 85°C). HDMI 2.0 and VGA inputs, integrated speakers, and included wall-mount hardware simplify deployment in retail public view, transportation hubs, industrial sites, and perimeter security systems while maintaining long 50,000-hour MTBF reliability.
Features:
- 32” Full HD 1920 × 1080 TFT-LED panel for sharp surveillance video.
- Ultra-high 3000 cd/m² brightness for high ambient light and outdoor use.
- Wide 178° (H) / 178° (V) viewing angles for clear visibility off-axis.
- Fast 5 ms response time to minimize motion blur and ghosting.
- Rugged metal construction with IK10 vandal resistance.
- IP67 front / IP65 rear weatherproof protection for harsh environments.
- Designed for 24/7 continuous operation with 50,000-hour MTBF.
- HDMI 2.0 and VGA inputs for flexible connection to NVRs, DVRs, and PCs.
- Built-in speakers for local audio monitoring.
- Wide operating temperature range: -22°F to 185°F (-30°C to 85°C).
- Multi-language OSD menu (English, German, French, Italian, Japanese, Korean).
- Stand mount and VESA 400 × 400 mounting options included; wall mount supplied.
Applications:
- Retail surveillance
- Public view
- Perimeter security
- Transportation hubs
- Industrial yards
- Parking facilities
- Stadium concourses
- Campus security
- Critical infrastructure
Display
| Screen Size | 32" |
|---|---|
| Active Display Area | 697.6845 mm (W) × 392.256 mm (H) |
| Aspect Ratio | 16:9 |
| LED Type | TFT-LED |
| Resolution | 1920 × 1080 |
| Display Colors | 16.7 M |
| Pixel Pitch | 0.51075 (H) × 0.51075 (V) mm |
| Brightness | 3000 cd/m² |
| Contrast Ratio | 1300:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | 5 ms |
| Backlight | LED |
| Portrait Mode | Supported |
Inputs & Outputs
| HDMI 2.0 | 1 |
|---|---|
| VGA | 1 |
| BNC | 0 |
| DisplayPort (DP) | 0 |
| Built-in Speaker | Yes |
| Remote Control | Yes |
Protection & Image Processing
| Waterproof Rating | IP67 (front), IP65 (back) |
|---|---|
| Vandal Resistance | IK10 |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
Power & Environmental
| Power Input | AC 100–240 V, 50/60 Hz |
|---|---|
| Power Consumption | < 80 W |
| Working Temperature | -22°F to 185°F (-30°C to 85°C) |
| MTBF | 50,000 hours |
Mechanical
| Mounting Options | Stand mount, VESA 400 × 400; wall mount included |
|---|---|
| Net Weight | 88.2 lbs (40 kg) |
| Gross Weight | 99.2 lbs (45 kg) |
Menu & Languages
| Menu Languages | English, German, French, Italian, Japanese, Korean |
|---|
Included Accessories
| Accessories | Industrial PSU, screws, cable holder, quick start guide |
|---|
