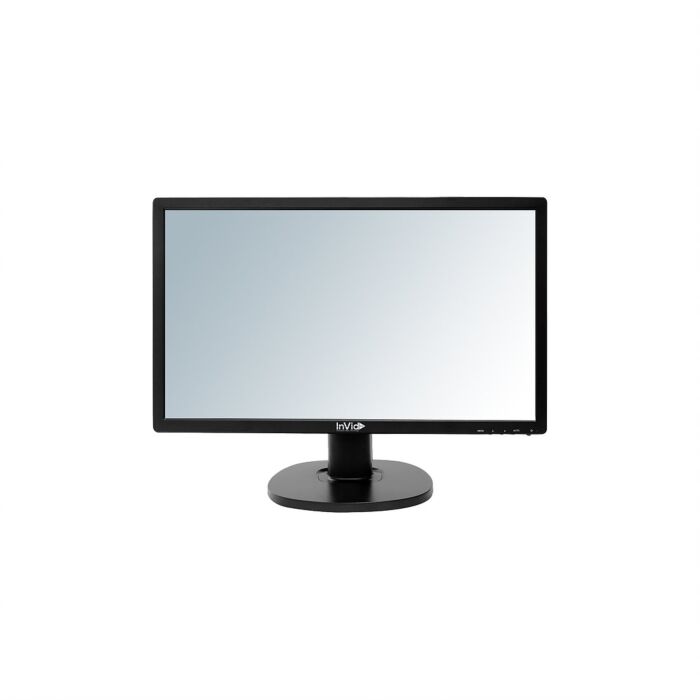

InVid Tech IMHD-27 (IMHD27) 27" HD LED Monitor, HDMI, VGA, BNC (Discontinued)
SKU
IMHD-27
Quick Overview
*Product is Discontinued, Call For Replacement Options
The IMHD-27 is a Full HD LED Monitor that includes HDMI, VGA, & Looping BNC inputs.
Suitable for every Video Surveillance and Security application the IMHD-27 is adaptive, customizable, and efficient. The bright LED illuminated panel, with 170º H viewing angle, conserves energy and extends the life of the monitor. The On Screen Display (OSD) Menu features 7 language options and customizable video settings.
Features:
- Suitable for every Video Surveillance and Security application: displays HDMI digital plus VGA and BNC analog inputs (with looping BNC analog output)
- Superlative image quality with 16.7 million color capability
- HD 1920 x 1080
- 3D Comb Filter/De-interlace
- Customizable video settings in flexible On Screen Display (OSD) Menu with 7 language options
- Auto-on when VGA or HDMI DVR/NVR video is detected
- Bright LED illuminated panel with 170° H viewing angle
- LED panel conserves energy and extends service life
- Included desk stand is easily removable for 100mm VESA mounting
Applications:
- Security and Video surveillance
- Remote monitoring
- Law Enforcement
- Mocroscopy
- Risk Management
- Identity Management
- Government
- ATM Surveillance
- Warehouse surveillance
| Screen Size | 27" Diagonal |
| Resolution | 1920 x 1080 @60Hz |
| Brightness | 300cd/m2 |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle (H/V) | 170° / 160° |
| Pixel Pitch | 0.311mm x 0.311mm |
| Display Colors | 16.7 Million |
| Response Time | <5ms |
| Video System | NTSC / PAL |
| Scanning Frequency | (H) 31~80 KHz/ (V) 56 ~ 75 Hz |
| HDMI-In | 1 |
| VGA-In | 1 |
| BNC-In/Out | 1/1 |
| OSD Language | English, Spanish, French, German, Italian, Portugese, Netherlands |
| Dimensions (W x H x D) | 25.5” x 17.6” x 9.8” (647 x 447 x 249mm) |
| Net Weight | 8.82lbs (4.0KG) |
| Tilt Stand / Tilt Range | Fr: 5 / Rear: 15 |
| Cabinet Materials | Plastic |
| Color | Black |
| VESA Mount | 100mm x 100mm (M4 x 10mm Screw) |
| MTBF (Approx) | 30,000 Hours |
| Power Consumption | <20W |
| Power Source | 100~240VAC |
| Operating Temperature | 32° ~104° F / 0° ~ 40° C |
| Approvals | FCC |
| Included Accessories | Remote, VGA Cable |
