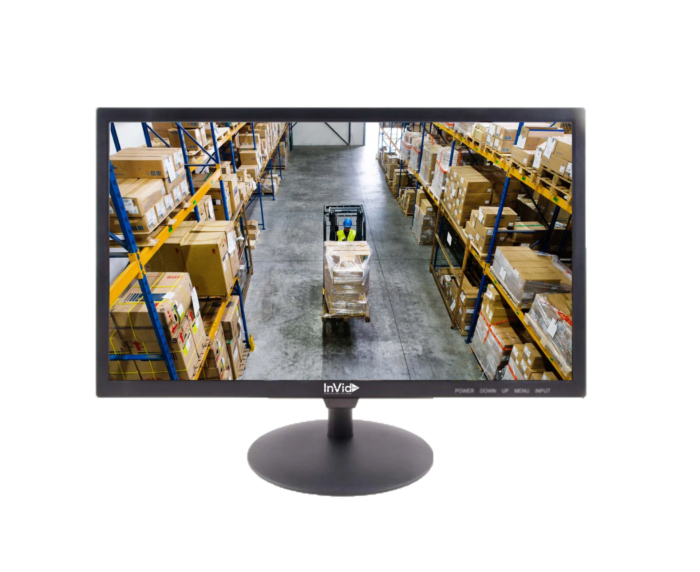

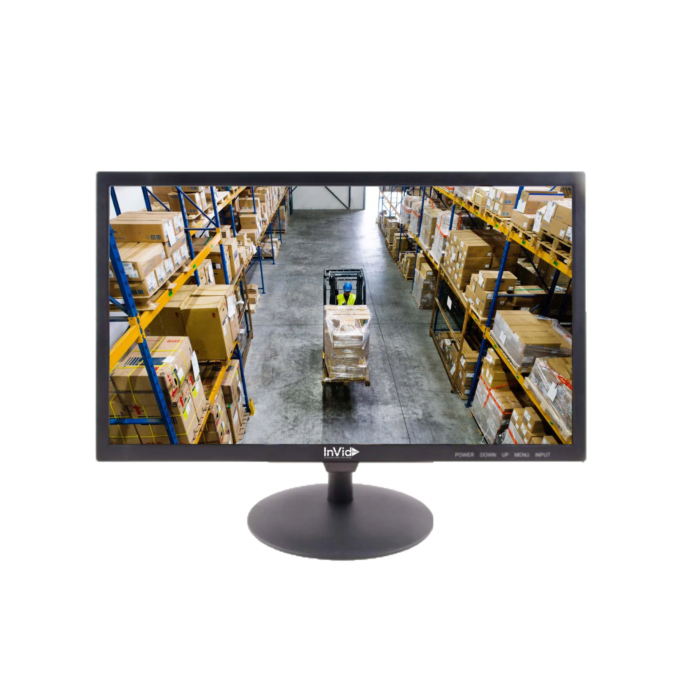

InVid Tech IMHD-24HVBN 24" Full HD 1080p 24/7 Surveillance LED Monitor with HDMI 2.0, VGA & Looping BNC Inputs & Outputs
The IMHD-24HVBN is a 24 inch Full HD 1920 × 1080 LED security monitor engineered for continuous 24/7 operation in professional surveillance, control room, and industrial monitoring environments. With HDMI 2.0, VGA, and looping BNC inputs and BNC output, it drops cleanly into modern NVR/DVR workflows while remaining backward compatible with legacy analog CCTV systems. A 300 nit TFT-LED panel, 1000:1 contrast ratio, and wide 178° viewing angles help ensure clear, accurate video for operators who need to interpret details quickly and reliably.
The IMHD24HVBN supports portrait mode, offers 16.7 million displayable colors, and uses a robust LED backlight with a 50,000 hour MTBF rating for long-term deployments. Its broad AC 100–240 V power range, stand or 100 × 100 VESA mounting options, and integrated stereo speakers make it easy to deploy on desks, walls, or brackets in security offices, manufacturing lines, and transportation hubs. A multilingual on-screen display, 3D comb filter, and video noise reduction further optimize image quality for PAL, NTSC, and SECAM sources in North American and international installations.
Features:
- 24" Full HD 1920 × 1080 TFT‑LED security monitor for professional video surveillance.
- Built for 24/7 continuous duty with 50,000 hour MTBF for mission-critical environments.
- HDMI 2.0, VGA, dual BNC inputs and BNC output for easy integration with NVRs, DVRs, and legacy CCTV.
- 300 cd/m² brightness, 1000:1 contrast ratio, and 16.7M colors for clear, detailed imaging.
- Wide 178° (H/V) viewing angles to support multi-operator control rooms and wall mounting.
- Portrait mode support for flexible layouts and specialized vertical viewing applications.
- Integrated 2 × 3 W stereo speakers for audio monitoring of camera and recorder feeds.
- AC 100–240 V power input and –22°F to 185°F (–30°C to 85°C) working temperature range for demanding sites.
- Stand mount or VESA 100 × 100 mount compatibility for desktops, arms, and wall mounts.
- PAL/NTSC/SECAM support with 3D comb filter and video noise reduction for cleaner analog video.
Applications:
- Security surveillance
- Control rooms
- Industrial monitoring
- Transportation hubs
- Retail security
- Campus security
- Healthcare monitoring
- Utility facilities
Display Characteristics
| Screen Size | 24" |
|---|---|
| Active Display Area (W × H) | 521.28 × 293.22 mm |
| Display Mode | 16:10 |
| LED Type | TFT-LED |
| Native Resolution | 1920 × 1080 (Full HD) |
| Display Color | 16.7M |
| Pixel Pitch (H × V) | 0.2715 × 0.2715 mm |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 5 ms |
| Backlight | LED |
| Portrait Mode | Supported |
Input & Output
| HDMI 2.0 Inputs | 1 |
|---|---|
| VGA Inputs | 1 |
| BNC Video Inputs | 2 |
| BNC Video Outputs | 1 (looping) |
| Speakers | 2 × 3 W (stereo) |
Video & Image Processing
| Color System | PAL / NTSC / SECAM |
|---|---|
| OSD Control | Auto adjust, Brightness, Contrast, H/V Position, Clock, Phase, Color, Language |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
Power & Environmental
| Power Input | AC 100–240 V, 50/60 Hz |
|---|---|
| Power Consumption | 25 W |
| Working Temperature | -22°F to 185°F (-30°C to 85°C) |
| Menu Languages | Chinese / English (other languages supported) |
| MTBF | 50,000 hours |
Mechanical
| Mounting | Stand mount, VESA mount 100 × 100 |
|---|---|
| Dimensions (W × H × D) | 21.9 × 13.5 × 1.9 in (555 × 343 × 49 mm) |
| Net Weight | 6.6 lbs (3 kg) |
| Gross Weight | 8.8 lbs (4 kg) |
Included Accessories
| Accessories | Industrial PSU, screws, cable holder, quick start guide |
|---|
