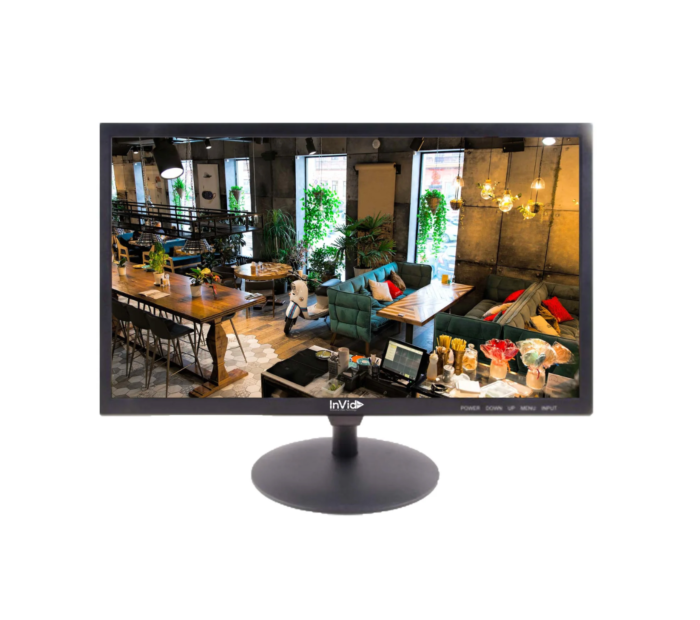

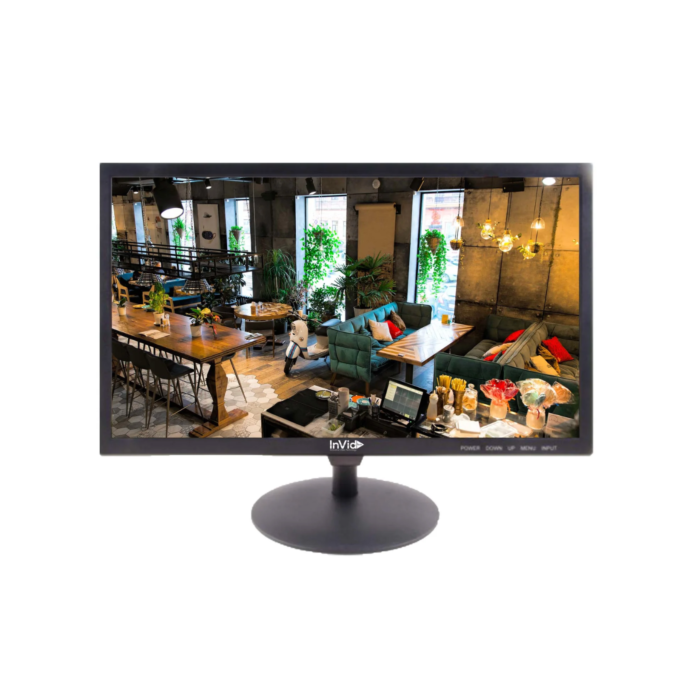

InVid Tech IMHD-24HVB 24" Full HD 1080p 24/7 Surveillance LED Monitor with HDMI 2.0, VGA & Looping BNC Inputs & Outputs
The IMHD-24HVB (IMHD24HVB) is a 24 inch Full HD 1920 x 1080 LED security monitor engineered for continuous 24/7 operation in commercial and industrial surveillance environments. With HDMI 2.0, VGA, and looping BNC inputs and outputs, it easily integrates with DVRs, NVRs, IP encoders, and legacy analog CCTV cameras, making it ideal for upgrading mixed-technology systems without replacing existing infrastructure. The TFT‑LED panel delivers 16.7 million colors, 300 cd/m² brightness, a 1000:1 contrast ratio, and wide 178° viewing angles for clear image reproduction across multi monitor control rooms.
Built for reliability, this monitor supports 24/7 duty cycles, portrait mode, and flexible mounting via stand or 100 x 100 VESA mounts. The durable design includes a working temperature range from approximately -22°F to 185°F, integrated stereo speakers, and an MTBF rating of 50,000 hours to support critical security operations in demanding environments such as retail, transportation hubs, warehouses, and industrial facilities.
Features:
- Built for commercial 24/7 operation in security and surveillance environments.
- 24 inch TFT‑LED panel with Full HD 1920 x 1080 resolution and 16.7M colors.
- 300 cd/m² brightness and 1000:1 contrast ratio for clear, detailed video.
- Wide 178° horizontal / 178° vertical viewing angles for control room visibility.
- Inputs: HDMI 2.0, VGA, 2x BNC video inputs for flexible connectivity.
- Looping BNC video output for daisy chaining additional monitors.
- Supports portrait mode for vertical viewing layouts.
- Integrated 2x3W stereo speakers for live audio monitoring.
- Multi language OSD with brightness, contrast, color, and position controls.
- Stand mount or 100 x 100 VESA mount for wall and arm installations.
Applications:
- CCTV monitoring
- Control rooms
- Retail security
- Warehouse surveillance
Display Characteristics
| Screen Size | 24" |
|---|---|
| Active Display Area (W × H) | 521.28 × 293.22 mm |
| Display Mode | 16:10 |
| LED Type | TFT-LED |
| Native Resolution | 1920 × 1080 (Full HD) |
| Display Colors | 16.7M |
| Pixel Pitch (H × V) | 0.2715 × 0.2715 mm |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 5 ms |
| Backlight | LED |
Inputs & Outputs
| HDMI 2.0 Inputs | 1 |
|---|---|
| VGA Inputs | 1 |
| BNC Video Inputs | 2 |
| BNC Video Outputs (Looping) | 1 |
| Speakers | 2 × 3 W (stereo) |
Video & OSD
| Color System | PAL / NTSC / SECAM |
|---|---|
| OSD Controls | Auto adjust, brightness, contrast, H/V position, clock, phase, color, language |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
| Menu Languages | Chinese, English (other languages supported) |
Power & Environmental
| Power Supply | DC 12 V, 50/60 Hz |
|---|---|
| Power Consumption | 25 W |
| Working Temperature | -22°F to 185°F (-30°C to +85°C) |
| MTBF | 50,000 hours |
Mechanical & Mounting
| Mounting Options | Stand mount, VESA 100 × 100 |
|---|---|
| Dimensions (W × H × D) | 21.9 × 13.5 × 1.9 in (555 × 343 × 49 mm) |
| Net Weight | 6.6 lb (3 kg) |
| Gross Weight | 8.8 lb (4 kg) |
Included Accessories
| Accessories | Industrial PSU, screws, cable holder, quick start guide |
|---|
