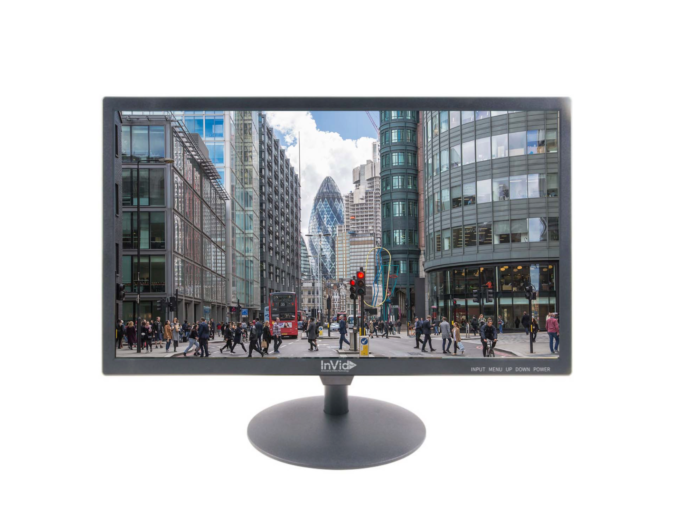

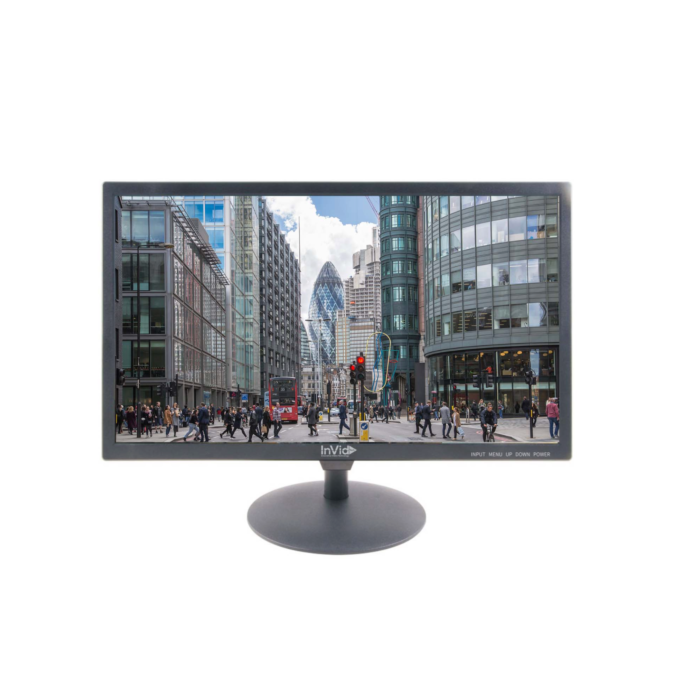

InVid Tech IMHD-22HVBN 21.5" Full HD 1080p 24/7 Surveillance LED Monitor with HDMI, VGA & Looping BNC
The IMHD-22HVBN (IMHD22HVBN) is a 21.5 inch Full HD 1920 x 1080 LED monitor designed specifically for professional video surveillance and security applications that demand reliable 24/7 operation. With HDMI, VGA and looping BNC inputs plus BNC output, it easily integrates into DVR/NVR systems and legacy analog CCTV infrastructure while delivering crisp, accurate images for critical monitoring.
A bright LED-illuminated panel, 16:9 aspect ratio, wide 176° x 176° viewing angles, and 16.7 million color support ensure operators get a clear, consistent view from almost any position in the control room. Flexible VESA 100 x 100 mounting, portrait-mode support, low power consumption under 25 W, and CE/FCC certifications make this monitor a dependable, standards-compliant choice for security professionals and system integrators.
Features:
- 21.5 inch Full HD 1920 x 1080 LED display optimized for security video.
- Built for 24/7 operation for mission-critical surveillance environments.
- Inputs: HDMI, VGA, BNC; looping BNC output for easy signal pass-through.
- Bright LED-illuminated panel with 16.7 million colors and wide 176°/176° viewing angles.
- Selectable 16:9 or 4:3 display aspect ratio via OSD for flexible camera layouts.
- Portrait mode support for specialized monitoring layouts.
- VESA 100 x 100 centered mounting pattern; stand included.
- Low power consumption under 25 W with universal 100–240 V AC input.
- Multilingual OSD (English, Spanish, German, Chinese, French, Italian).
- CE and FCC certified for professional deployments.
Applications:
- Security surveillance
- Control rooms
- Retail monitoring
- Industrial facilities
- Campus security
- Transportation hubs
| Screen Size | 21.5 inch |
| Viewable Area (W x H) | 18.7 x 10.5 in |
| LED Type | LED |
| Pixel Pitch (H x V) | 0.248 × 0.248 mm |
| Maximum Resolution | 1920 x 1080 |
| Supported Input Resolutions | 720x400; 640x480; 800x600; 1024x768; 1280x1024; 1920x1080 |
| Refresh Rate (Vertical) | 60 Hz (depending on resolution) |
| Color Depth | 8 bits; 16.7 million colors |
| Brightness | 200 cd/m² |
| Auto Adjust | Yes |
| Monitor Aspect Ratio | 16:9 |
| Display Aspect Ratio | OSD selectable 16:9 or 4:3 |
| Horizontal TV Lines | 1080 |
| Contrast Ratio | 1000:1 |
| Response Time | 5 ms |
| Viewing Angle (H/V) | 176° / 176° |
| Inputs & Outputs | |
|---|---|
| Digital Video Inputs | HDMI up to 1920 x 1080 |
| Port Inputs | HDMI, VGA, BNC, USB (firmware update) |
| Port Outputs | BNC (looping) |
| Speakers | None (N/A) |
| Controls & OSD | |
| OSD Languages | English, Spanish, German, Chinese, French, Italian |
| Mechanical | |
| Monitor Dimensions (W x H x D) | 20 x 12 x 1.9 in (508 x 305 x 47 mm) |
| Max Dimensions with Stand (W x H x D) | 20.14 x 14.61 x 6.34 in |
| Case & Stand Material | Plastic |
| VESA Mounting Pattern | 100 x 100 mm, centered |
| Base / Stand Included | Yes |
| Net Weight | 6.2 lbs (2.8 kg) |
| Gross Weight | 8.4 lbs (3.8 kg) |
| Power | |
| Power Consumption | < 25 W (on and standby) |
| Power Input | 100–240 V AC |
| Environmental | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 10% to 85% |
| Certifications | |
| Safety & EMC | CE, FCC |
