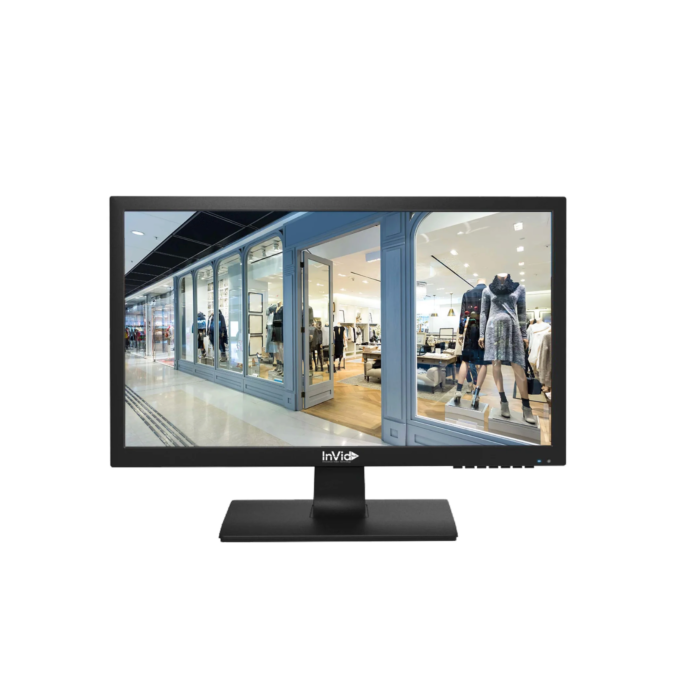

InVid Tech IMHD-20HVB 19.5" Full HD 1080p 24/7 Surveillance LED Monitor with HDMI, VGA & Looping BNC
IMHD-20HVB is a 19.5" Full HD 1920 x 1080 industrial LED monitor engineered for continuous 24/7 surveillance and machine-vision workloads. It combines a bright LED-illuminated TFT panel, wide 178° viewing angles, and 16.7 million color support to deliver sharp, reliable image reproduction for critical monitoring tasks.
Designed for seamless integration into professional security and control-room environments, this monitor offers HDMI 2.0, VGA, dual BNC video inputs and a looping BNC output, plus built-in stereo speakers for audio monitoring. Stand or VESA 100 x 100 mounting, -22°F to 185°F operating tolerance, and a 50,000-hour MTBF make IMHD-20HVB a dependable choice for demanding commercial and industrial installations.
Features:
- 19.5" Full HD 1920 x 1080 TFT-LED display
- Built for continuous 24/7 surveillance operation
- Bright 350 cd/m² LED-illuminated panel
- Wide 178° / 178° viewing angles for multi-operator visibility
- 16.7 million display colors for accurate image reproduction
- HDMI 2.0, VGA, 2x BNC video inputs
- Looping BNC video output for daisy-chaining or recording
- Supports PAL / NTSC / SECAM video standards
- Fast 5 ms response time for smooth video
- Integrated 2 x 3 W stereo speakers
- On-screen controls: auto adjust, brightness, contrast, position, clock, phase, color, language
- 3D comb filter and video noise reduction for cleaner images
- Operating temperature -22°F to 185°F (-30°C to 85°C)
- DC 12 V power input, 20 W typical consumption
- Stand mount and VESA 100 x 100 mounting support
- 50,000-hour MTBF for long-life deployments
- Multilingual OSD (Chinese, English, and others)
Applications:
- Security surveillance
- Control rooms
- Factory monitoring
- Retail loss-prevention
- Traffic monitoring
- Access control
- Machine vision
- Process monitoring
- NVR viewing
- Testing benches
| Model Name | IMHD-20HVB |
| Screen Size | 19.5" |
| Active Display Area (W x H) | 386.32 × 251.0 mm |
| Display Mode | 16:9 |
| LED Type | TFT-LED |
| Resolution | 1920 × 1080 (Full HD) |
| Display Color | 16.7M |
| Pixel Pitch (H x V) | 0.248 × 0.248 mm |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H / V) | 178° / 178° |
| Response Time | 5 ms |
| Backlight | LED |
| HDMI 2.0 Inputs | 1 |
| VGA Inputs | 1 |
| BNC Video Inputs | 2 |
| BNC Video Outputs | 1 (looping) |
| Speaker | 2 × 3 W (stereo) |
| Color System | PAL / NTSC / SECAM |
| OSD Control | Auto adjust, brightness, contrast, H/V position, clock, phase, color, language |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
| Power Type | DC 12 V 2 A |
| Power Consumption | 20 W |
| Working Temperature | -22°F ~ 185°F (-30°C ~ 85°C) |
| Menu Languages | Chinese / English (other languages supported) |
| Mounting Options | Stand mount, VESA 100 × 100 |
| MTBF | 50,000 hours |
| Dimensions (W × H × D) | 16.2 × 11.2 × 1.9 in (412 × 285 × 47 mm) |
| Included Accessories | Industrial PSU, screws, cable holder, quick start guide |
