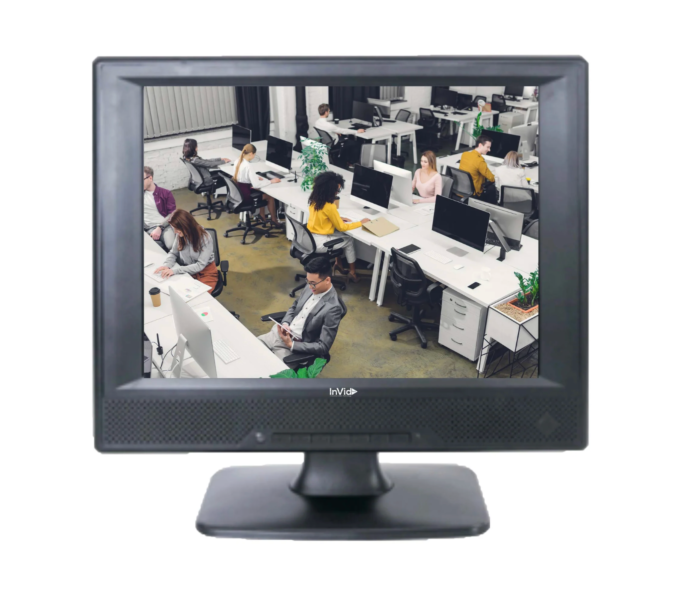

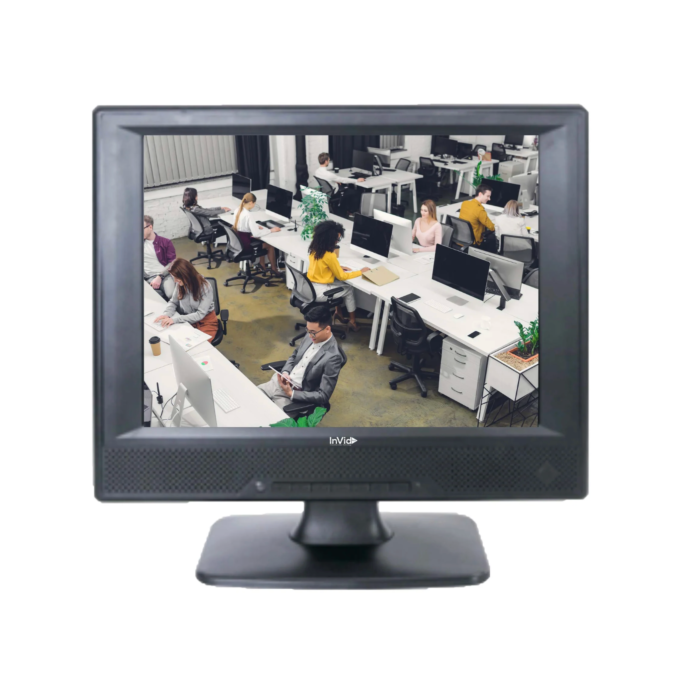

InVid Tech IMHD-10N 10.4" HD 800×600 24/7 Surveillance LED Monitor with HDMI, VGA & Looping BNC Inputs
SKU
IMHD-10N
Quick Overview
10.4” 800×600 HD TFT-LED monitor with HDMI, VGA, and looping BNC inputs, built for 24/7 security and industrial monitoring. Wide 178° viewing, 350 nit brightness, VESA 75×75 mount, and -22°F to 185°F operating range ensure dependable performance in critical environments.
The IMHD-10N is a 10.4 inch HD 800×600 LED security monitor engineered for 24/7 operation in demanding surveillance and industrial environments. With a bright 350 nit TFT-LED panel, 178° wide viewing angles, and support for PAL/NTSC/SECAM, it delivers clear, reliable video feeds from DVRs, NVRs, and HD cameras in mission-critical applications.
Designed for flexible integration, the IMHD10N features HDMI, VGA, and looping BNC inputs/outputs, stereo speakers, and both stand and VESA 75×75 mounting options. Its rugged design, -22°F to 185°F operating range, and 50,000-hour MTBF make it a dependable choice for security, industrial control, and embedded systems requiring continuous monitoring.
Features:
- 10.4 inch HD 800×600 LED panel
- TFT-LED technology for sharp, stable images
- 350 nit high brightness for control rooms and security stations
- 4:3 aspect ratio optimized for CCTV and legacy systems
- 16.7M color depth for accurate video reproduction
- Ultra-wide 178° horizontal/vertical viewing angle
- Built for 24/7 continuous operation (50,000-hour MTBF)
- Portrait mode support for vertical layouts
- HDMI 2.0, VGA, and BNC (2 in / 1 out) connectivity
- Looping BNC output for daisy-chaining video feeds
- Integrated 2 × 3W stereo speakers
- PAL/NTSC/SECAM compatible with 3D comb filter
- Video noise reduction for cleaner images
- Supports 480P, 576P, 720P, 1080I, and 1080P input signals
- Stand mount and VESA 75×75 mount ready
- Wide -22°F to 185°F (-30°C to 85°C) operating temperature
- Low power consumption ≤10W with DC 12V input
- On-screen menu in English/Chinese (other languages supported)
Applications:
- Security surveillance
- Industrial control
- Access monitoring
- Vehicle integration
- Kiosk display
- NVR preview
- CCTV wall
- Process monitoring
| Model | IMHD-10N |
| Display | |
|---|---|
| Screen Size | 10.4" |
| Active Display Area | 211.2 mm (W) × 158.4 mm (H) |
| Display Mode | 4:3 |
| LED Type | TFT-LED |
| Resolution | 800 × 600 |
| Display Color | 16.7 M |
| Pixel Pitch | 0.264 (H) × 0.264 (V) mm |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | 5 ms |
| Backlight | LED |
| Inputs & Outputs | |
| HDMI 2.0 | 1 |
| VGA | 1 |
| BNC Input | 2 |
| BNC Output | 1 |
| Speaker | 2 × 3 W (Stereo) |
| Video | |
| Color System | PAL / NTSC / SECAM |
| Compatible HDTV Input | 480P, 576P, 720P, 1080I, 1080P |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
| Power & Environmental | |
| Power | DC 12 V, 50/60 Hz |
| Working Temperature | -22°F ~ 185°F (-30°C ~ 85°C) |
| Power Consumption | ≤ 10 W |
| MTBF | 50,000 hours |
| OSD & Mounting | |
| Menu Languages | Chinese / English (other languages supported) |
| Mounting | Stand mount, VESA 75 × 75 |
| Mechanical | |
| Dimensions (W × H × D) | 10.5 × 8.7 × 1.7 in (268 × 222 × 43 mm) |
| Net Weight | 3.3 lbs (1.5 kg) |
| Gross Weight | 4 lbs (2 kg) |
