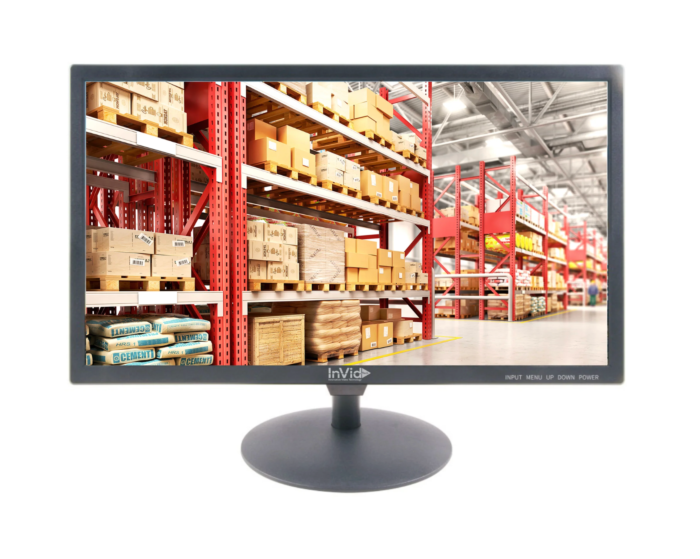

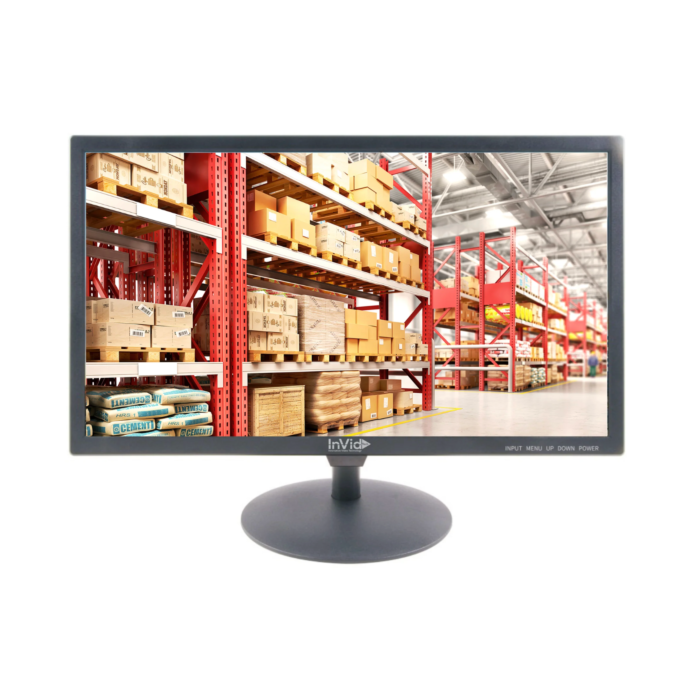

InVid Tech IMHD-22HVB 21.5" Full HD 24/7 Surveillance LED Monitor with HDMI, VGA & Looping BNC
The IMHD-22HVB is a 21.5" Full HD 1920 × 1080 LED monitor purpose-built for professional security and surveillance environments that demand continuous 24/7 operation. Supporting HDMI, VGA, and dual BNC inputs with a looping BNC output, it allows you to connect modern recorders and legacy analog cameras while daisy-chaining video to additional monitors or recording devices without external splitters. The TFT-LED panel provides 16.7 million colors, 300 cd/m² brightness, and a 10,000:1 contrast ratio, ensuring sharp, detailed images for monitoring critical scenes.
With a wide 178° horizontal and vertical viewing angle, operators can clearly see video from multiple positions across a control desk or wall-mounted installation. The IMHD22HVB includes built-in 2 × 3 W stereo speakers, VESA 100 × 100 mounting support, and an industrial 12 VDC power input for easy integration into security racks, wall mounts, and console systems. An extended temperature range and 50,000-hour MTBF rating support reliable continuous duty for commercial, industrial, and public safety applications.
Features:
- 21.5" Full HD 1920 × 1080 TFT-LED panel for sharp surveillance video.
- Bright 300 cd/m² LED backlight with 10,000:1 contrast ratio for detailed imaging.
- Wide 178° (H) / 178° (V) viewing angle for multi-operator control rooms.
- Built for 24/7 performance in critical security and monitoring environments.
- Inputs: 1 × HDMI 2.0, 1 × VGA, 2 × BNC video inputs for flexible connectivity.
- 1 × looping BNC output to feed additional monitors or recording devices.
- 16.7 million color support for accurate scene reproduction.
- Integrated 2 × 3 W stereo speakers for audio from surveillance sources.
- On-screen display (OSD) controls for brightness, contrast, position, clock, phase, color, and language.
- VESA 100 × 100 and stand-mount options for versatile installation.
- Extended operating temperature range from -22°F to 185°F (-30°C to 85°C).
- 50,000-hour MTBF for long-life industrial deployments.
- Includes industrial PSU, screws, cable holder, and quick start guide for fast setup.
Applications:
- Security surveillance
- Control rooms
- Retail monitoring
- Industrial facilities
- Public safety
- Transportation hubs
- Campus security
- Process monitoring
| Model Name | IMHD-22HVB |
| Screen Size | 21.5" |
| Active Display Area (W × H) | 476.64 × 268.11 mm |
| Display Mode | 16:9 |
| LED Type | TFT-LED |
| Resolution | 1920 × 1080 (Full HD) |
| Display Color | 16.7 million colors |
| Pixel Pitch (H × V) | 0.248 × 0.248 mm |
| Brightness | 300 cd/m² |
| Contrast Ratio | 10,000:1 |
| Viewing Angle (H / V) | 178° (H) / 178° (V) |
| Response Time | 5 ms |
| Backlight | LED |
| HDMI 2.0 Input | 1 |
| VGA Input | 1 |
| BNC Video Inputs | 2 |
| BNC Video Outputs | 1 (looping) |
| Speaker | 2 × 3 W (stereo) |
| Color System | PAL / NTSC / SECAM |
| OSD Control | Auto adjust, brightness, contrast, H/V position, clock, phase, color, language |
| 3D Comb Filter | Yes |
| Video Noise Reduction | Yes |
| Power Input | DC 12 V, 50/60 Hz |
| Power Consumption | ≤ 25 W |
| Working Temperature | -22°F to 185°F (-30°C to 85°C) |
| Menu Languages | Chinese / English (other languages supported) |
| Mounting Options | Stand mount, VESA 100 × 100 |
| MTBF | 50,000 hours |
| Dimensions (W × H × D) | 20 × 12 × 1.9 in (508 × 305 × 47 mm) |
| Net Weight | 6.2 lbs (2.8 kg) |
| Gross Weight | 8.4 lbs (3.8 kg) |
| Included Accessories | Industrial PSU, screws, cable holder, quick start guide |
