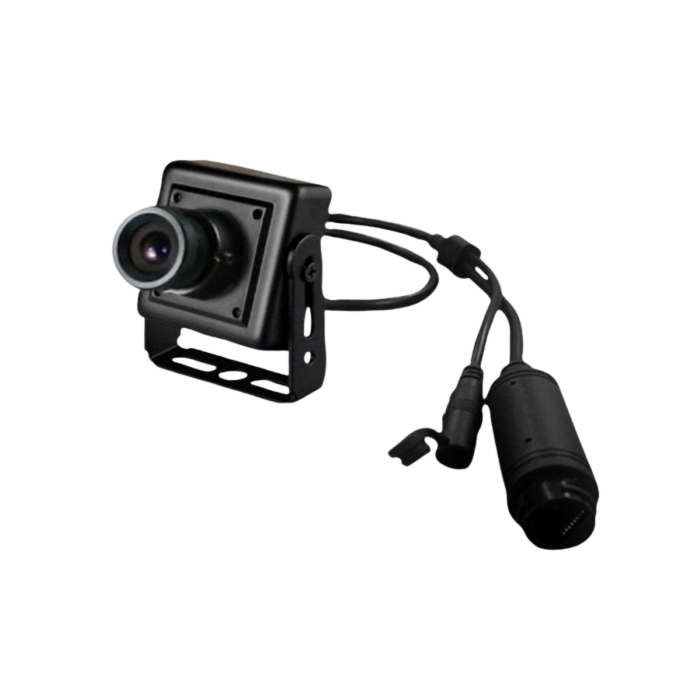

Infinite Pixels IMS530B 5MP HD IP Mini Camera Module, 1/2.7” Omnivision PureCel® CMOS, Standard Board Lens, 30.8 x 30.8 mm

The IMS530B Standard Board features a 1/2.7" Omnivision PureCel® CMOS sensor with 5MP resolution (2688(H) × 1944(V)), providing high-quality progressive scan video. It supports NTSC/PAL video formats and offers a wide range of exposure controls, including auto/manual shutter speed (1/30 ~ 1/30,000s) and exposure compensation from EV+4 to EV-4. With low-light performance down to 0.15Lux, it ensures clear imaging in various lighting conditions. The sensor includes advanced features such as 3DNR, BLC, and D-WDR for enhanced image quality in high-contrast scenes.

Designed for flexible surveillance applications, the IMS530B offers customizable image adjustments (brightness, contrast, sharpness, gamma, defog), digital effects (mirror, vertical flip, rotation), and corridor mode for vertical monitoring. It supports H.264/MJPEG compression, POE power over Ethernet, and a range of network protocols, including TCP/IP, HTTP, HTTPS, and ONVIF Profile S.T. With motion detection, privacy zones, smart digital zoom, and a wide operating temperature range (-20°C to +50°C), this board is optimized for reliable performance in various environments.

Features:

• 5Mp Image Sensor
• Compress Format :H264/MJPEG
• Support Onvif
• Built in SD micro slot
• POE Cable
• Corridor Mode
• HTML5 H.264 Streaming Support
• Dimensions: 30.8x30.8mm
• Lens Option : 2.5mm, 2.8mm, 3.6mm, 6mm, 8mm, P1 Flat Poinhole P2 Supercone Pinhole (3.3mm, 3.7mm, 4.3mm)

Applications:

• Video Surveillance
• Security Monitoring
• Remote Surveillance
• Traffic Monitoring
• Smart Home Systems
• Industrial Monitoring
