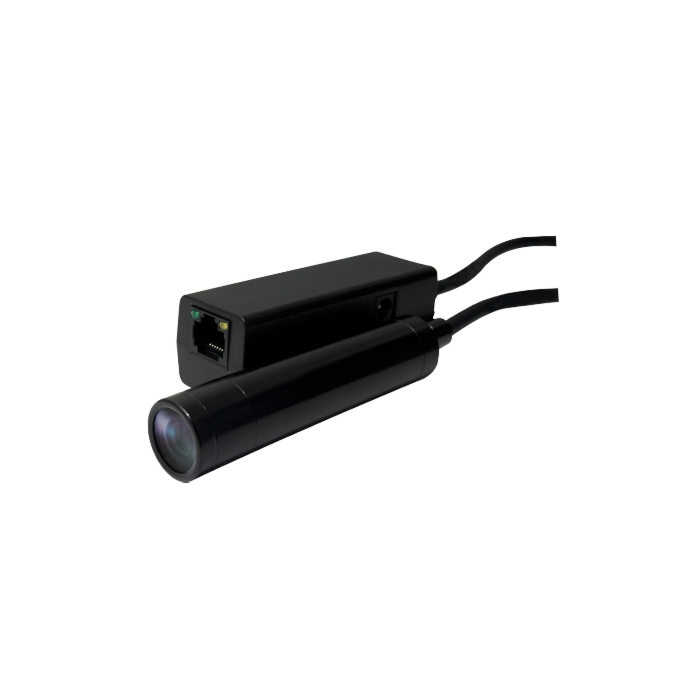

Infinite Pixels IMB219-F4W 2MP IP True WDR Mini Bullet Camera with Board Lens
Unrivaled Precision: Infinite Pixels IMB219-F4W 2MP IP True WDR Mini Bullet Camera
Unleash the power of precision with the Infinite Pixels IMB219-F4W 2MP IP True WDR Mini Bullet Camera. Engineered with a cutting-edge 1/2.8" 2.9μm Pixel Progressive Sony Starvis CMOS Sensor, this camera delivers unparalleled image quality at a maximum of 30fps with its 2MP resolution (1920 X 1080). The 19Ømm Bullet Miniature Water-proof Housing ensures durability and versatility, making it an ideal choice for machine vision and inspection applications.
Equipped with a 4mm Mega Lens (with customizable options), WDR, DSS(Sens-up), and 3DNR support, this camera adapts to various lighting conditions, providing crystal-clear images. The Onvif Ver. 17.06 compatibility and support for video codecs H.264 and MJPEG offer seamless integration into existing systems. The built-in POE cable simplifies installation, while the IR Cut Filter enhances day and night vision.
Take your machine vision to the next level with the optional Ring Mount for added flexibility. Embrace precision and reliability with the Infinite Pixels IMB219-F4W, the perfect solution for demanding machine vision and inspection tasks.
Features:
- 1/2.8" 2.9μm Pixel Progressive Sony Starvis CMOS Sensor
- 2MP (1920 X 1080) Max. 30fps
- 19Ømm Bullet Miniature Water-proof Housing
- 4mm Mega Lens (Lens Options are Available)
- WDR, DSS(Sens-up), 3DNR Supported
- Onvif Ver. 17.06 Compatible
- Supported Video Codec: H.264, MJPEG
- Built-in POE Cable
- IR Cut Filter
- Optional Ring Mount
- PoE Cable
| Image | |
| Image Sensor | 1/2.8”(D-6.46mm) 2.12M Sony CMOS Sensor |
| Size | 1/2.8 inch |
| Sensitivity | 0.1Lux, 0.003Lux (DSS on) |
| Total Pixel | 1945(H) X 1109(V), 2.16 Mega Pixels |
| Effective Pixels | 1945(H) X 1097(V), 2.12 Mega Pixels |
| Function | |
| Day/Night | Auto / Day(Color) / Night(BW), ICR Control |
| Privacy Area | On / Off (16 Programmable Zones) |
| Motion Detection | 432 Zone, Sensitivity 1~5 Step, On/Off |
| WDR | True WDR, ON/Off |
| DNR | 2D DNR, 3D DNR - HDR |
| Defog | Detects Foggy, On / Off |
| Ext. Video | CVBS 1.0Vp-p (75Ω) |
| Elec. Shutter | 1/25(30)~1/30,000sec |
| Color Adjust | Bright/ Contrast / Saturation / Sharp / Hue |
| White Balance | Auto, Autoext, Preset, Manual |
| OSD Display | Via Webpage Viewer |
| Image Mirror | Normal / Mirror(H) / Flip(V) / Both(HV) |
| Electrical | |
| Power Supply | Less than 1.6 Watts (130mA) |
| Environmental | |
| Temperature | Working Temp: 32oF ~ 122oF (0oC ~ +50oC) / Preservation Temp: 14oF ~ 140oF (-10oC ~ +60oC) |
| Physical Spec | |
| Dimension | 30(W) x 30(D) (without Bracket) |
| Lens | 4mm (Options are Available) |
| Mount | Optional Ring Mount |
| Video | |
| Video Compression | H.264 (High, Main, Base Line Profile), MJPEG |
| Resolution | 1920x1080/1280×1024/1280×960/1280×720/1024×768/640×480/320×240 |
| Max. Frame Rate | 30fps @ all resolution |
| Video Quality | H.264: Bitrate Control, MJPEG: Quality Level Control |
| Streaming | Simultaneously H.264 and MJPEG, Independent Frame Rate and Bandwidth Contol, VBR/CBR Mode |
| Event | |
| Sensor In/Alarm Out | In: Trigger / Network Loss / Tampering / Motion, Out: FTP |
| Network | |
| Interface | RJ45 10/100 Base-T PoE |
| Protocol | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS, Onvif 17.06 Compatible |
| Onvif | The Latest Version |
| Simultaneous Access | Max. 3 Users |
| FTP Uploading | MJPEG Still Image |
